Changing the Normal Screen layout
At startup, the screen is arranged according to the startup mode definitions. Parameters that
are not used are not displayed and no space is reserved for them. You can decide which
waveforms and numerical information are displayed, and where on the screen they are
arranged. You can do this for the duration of monitoring or save the changes in the user mode.
To make the changes permanent, save them in the user mode through
Monitor Setup -
Install/Service - Save Modes.

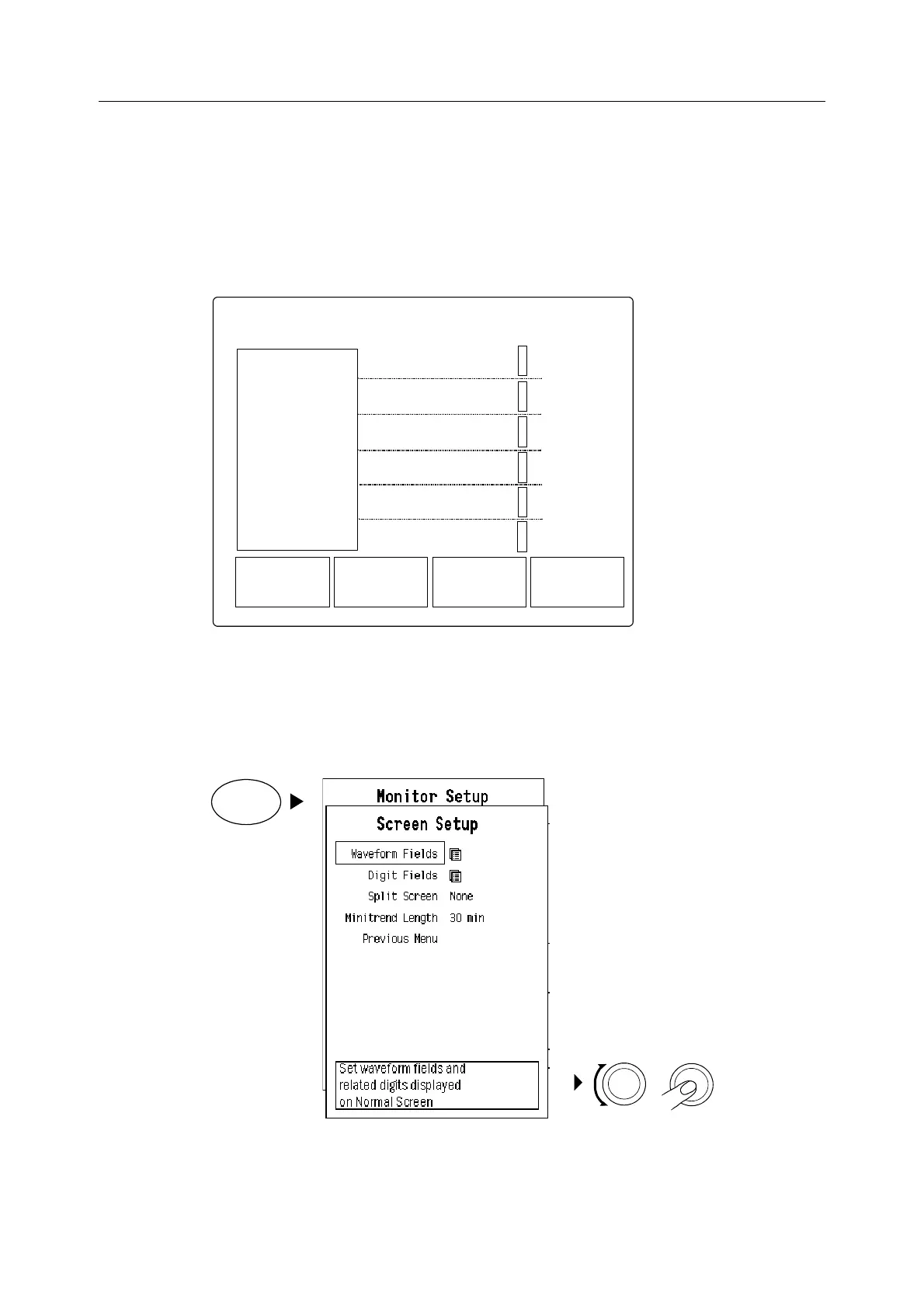

Figure 5-1 Display fields
To change the Normal Screen page:
1. Press the
Monitor Setup key.
2. Select Screen Setup.
3. Select Waveform Fields, Digit Fiel
ds,split Screen or Minitrend Length.
NOTE: Choosing the same parameter in the waveform and digit field makes the
previously chosen field disappear.
Alarms message field
Menus
Real-time
waveforms
or trends
Digit Field 1
Waveform
digits
Digit Field 2
Digit Field 3
Digit Field 4
Monitor
Setup
To Next Page
