B30 Patient Monitor
15-4
Patient connections
The setup is the same as for the ECG measurement. For more information, see section “ECG.”
NOTE: Impedance respiration measurement is intended for patients over three years
old.

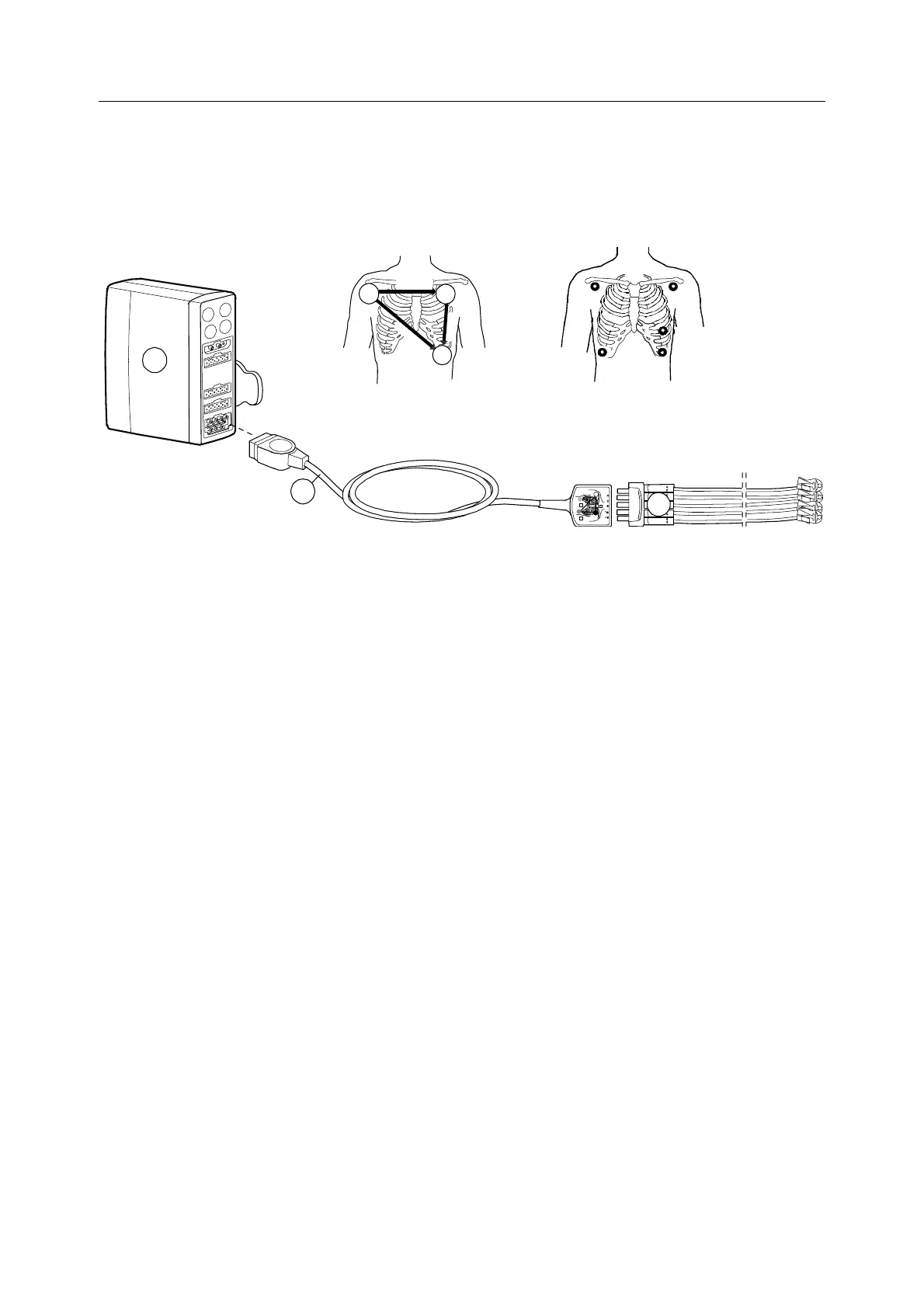

Figure 15-4 Impedance respiration setup
(1) E-PSMW or E-PSMPW module
(2) Multi-link 5 lead standard cable
(3) Multi-link leadwire set (3 or 5 leads)
ECG electrodes (pre-gelled electrodes are recommended). Check the expiration date.
NOTE: For a comprehensive list of accessories, see the "Supplies and Accessories"
catalog.
L
L
R
L
R
A
I
I
I
I
I
I
L
A
R
L
R
A
L
A
2
LEAD I
L
E
A
D
I
I
I
L
E
A
D
I
I
L/ LAR/RA
F/ LL
1
3
R=RED (IEC )
RA=WH ITE (AAMI)
L=YELLOW (IE C)
LA=BLACK (AAMI)
R=RED (IEC)
RA=WHITE (AAMI)
L=YELLOW (IE C)
LA=BLACK (AAMI)
C=WHITE (IEC)
V=BROWN (AAMI)
F=GREEN (IEC)
LL=RED (AAMI)
F=GREEN (IEC)
LL=RED (AAMI)
N=BLACK (IEC)
RL=GREEN (AAMI)
