B30 Patient Monitor
6-8
Moving on graphical trend pages
To see more parameters on other pages:
• Select Scroll Pages in the Trends menu.
Numeric measurement values for trended parameters are displayed next to the cursor. The
cursor indicates the time when these values have been measured. To change the cursor
location:
1. In the Trends menu, select Cursor.

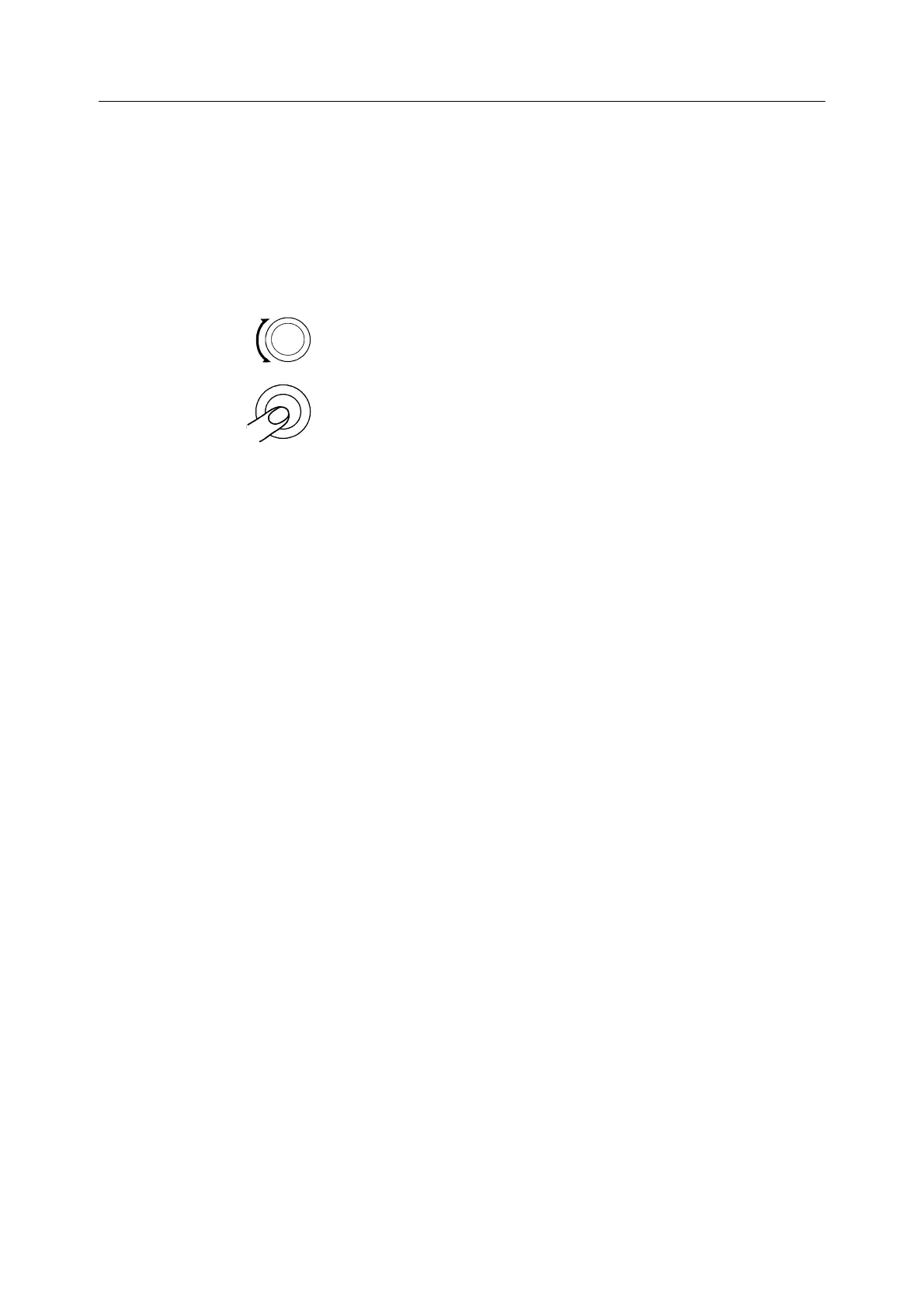

2.
to move the cursor.
3.
to return to the menu.
To scroll the time, move the cursor past the right or left border of the trend.
Recording and printing
Recording
1. Press the Print/Record key.
2. Select Record Trends.
3. Select Record Graphical.
The recording time of a trend corresponds to the time scale of the graphical trends. You can
choose the time scale (20 minutes to 72 hours) in the trends menu.
To select the parameters for graphical trend recording:
1. Press the
Print/Record key.
2. Select Record Trends.
3. Select Graphic Trend 1 and choose the parameter in the opened adjustment menu.
4. Select Graphic Trend 2 and choose the parameter in the opened adjustment menu.
Printing
You can print all the graphical trends gathered:
1. Press the
Print/Record key.
2. Select Print Graphical.
3. Select the page and Print Graphs.
Factory default parameters
The default graphical trend setup varies according to mode types. For details refer to “Default
Configuration Worksheet”. To change these settings, see section ”Monitor setup.”
