B30 Patient Monitor
2-2
WARNING Before starting to use the system, ensure that the whole combination
complies with the international standard IEC 60601-1-1 and with the
requirements of the local authorities. Do not connect any external devices
to the system other than those specified.
CAUTION The monitor display is fragile. Ensure that it is not placed near a heat source or
exposed to mechanical shocks, pressure, moisture or direct sunlight.
Components
The main components of the B30 are the monitor frame and the interchangeable modules.

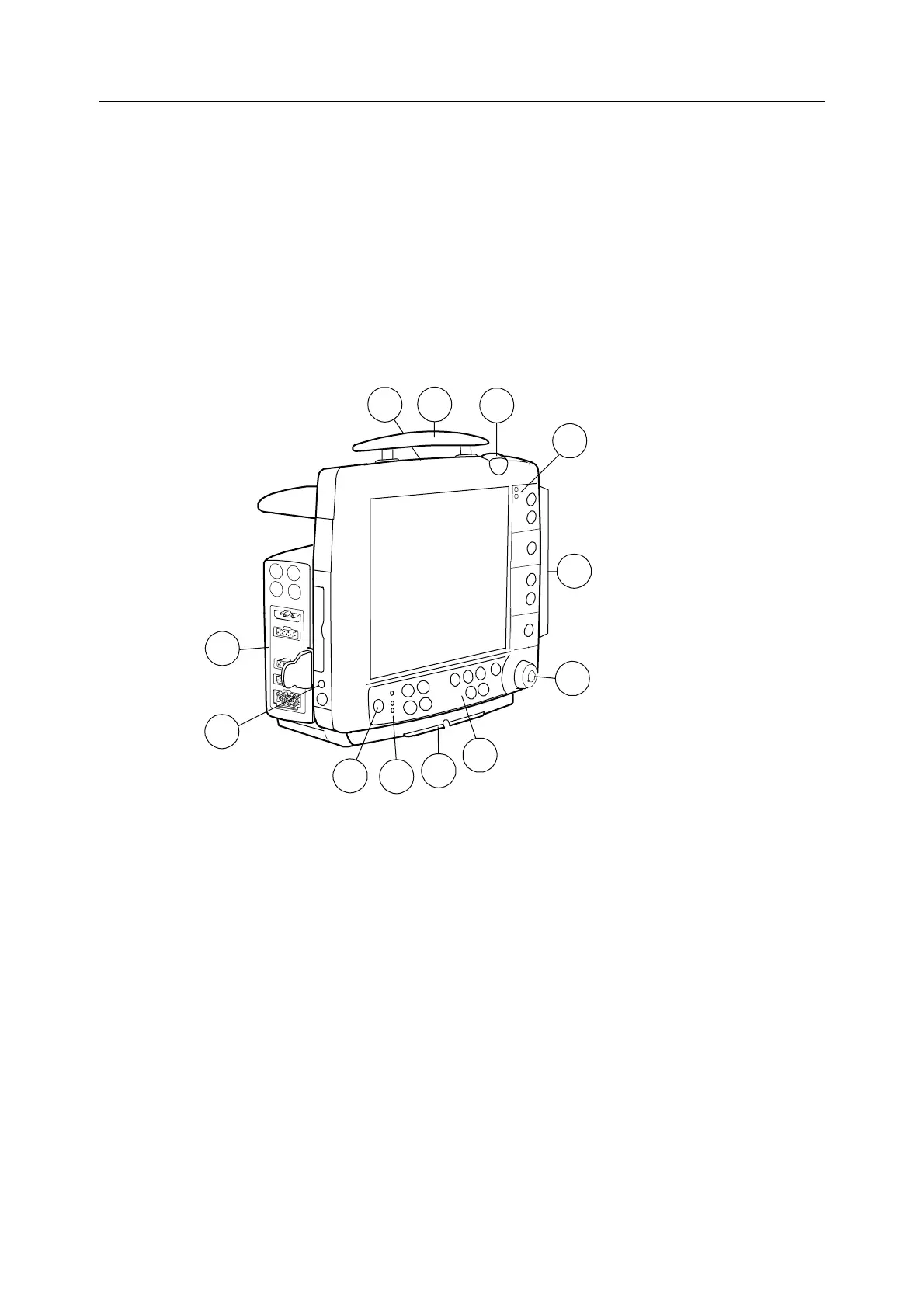

Figure 2-2 B30 monitor front panel
(1) Battery compartment
(2) Transportation handle
(3) Alarm light
(4) Alarm LED indicators
(5) Side panel keys
(6) The ComWheel
(7) Command Board keys
(8) Guide rail for GCX mounting
(9) Mains power and battery LEDs
(10) ON/standby key
(11) Defibrillator & IABP synchronization connector (marked with X5)
(12) Measurement modules, see page 2-4
You can use one E-PSM(P)W and/or one N-Fx module in the monitor at a time.
1
12
11
2
3
5
4
6
7
9
8
10
