2.3.3.2 2285646 – Through bolts without insert

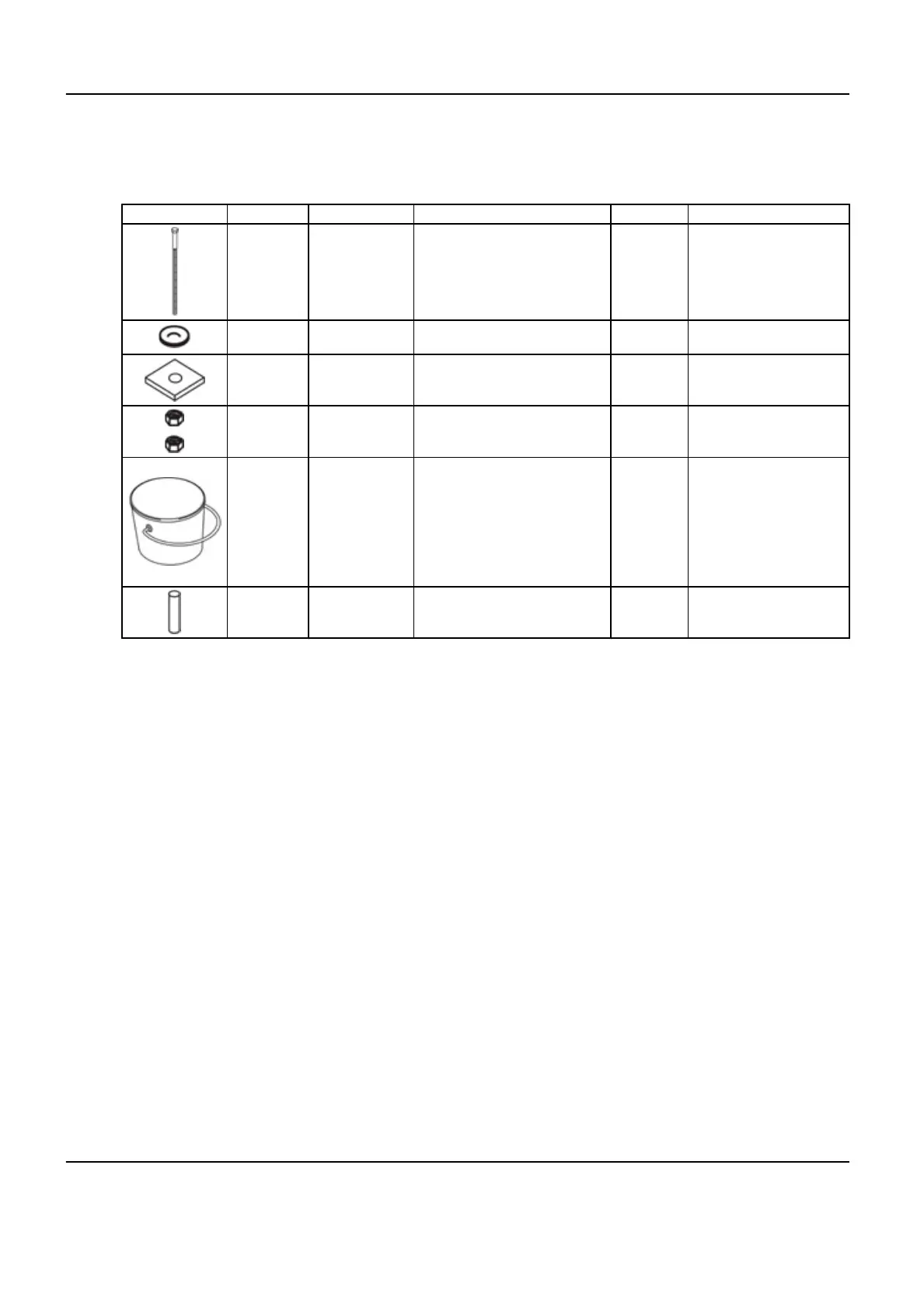

Table 5-9:
Item Name Part # Description Quan. Notes
Bolt, Hex 2296892 Through Bolt; M20 - 500-400
12 bolts for LC Positioner and
4 bolts for Table
16 pc Through Bolt mounting
method hardware
Washer, Flat 99142204 Special Flat Washer for Through
Bolts; one for each bolt
16 pc same as above
Plate 2290941 Special Steel Spacer Plate; 4 in. x
4 in. (102 mm x 102 mm); one for
each bolt
16 pc same as above
Nut, Hex 99141607 Hex Nut M20 STL galvanized two
for each bolt
32 pc same as above
Grout assy 2285055 - 10 kg Powdered Mortar Ardex
K-15
- RTV Silicon Rubber Adhesive
- 18 mm making tape adhesive
- Open cell foam
1 kit Used in constructing LC Po‐
sitioner grout dam
Dowel 2290937 Wood Dowel; 24 mm diameter 12 pc
