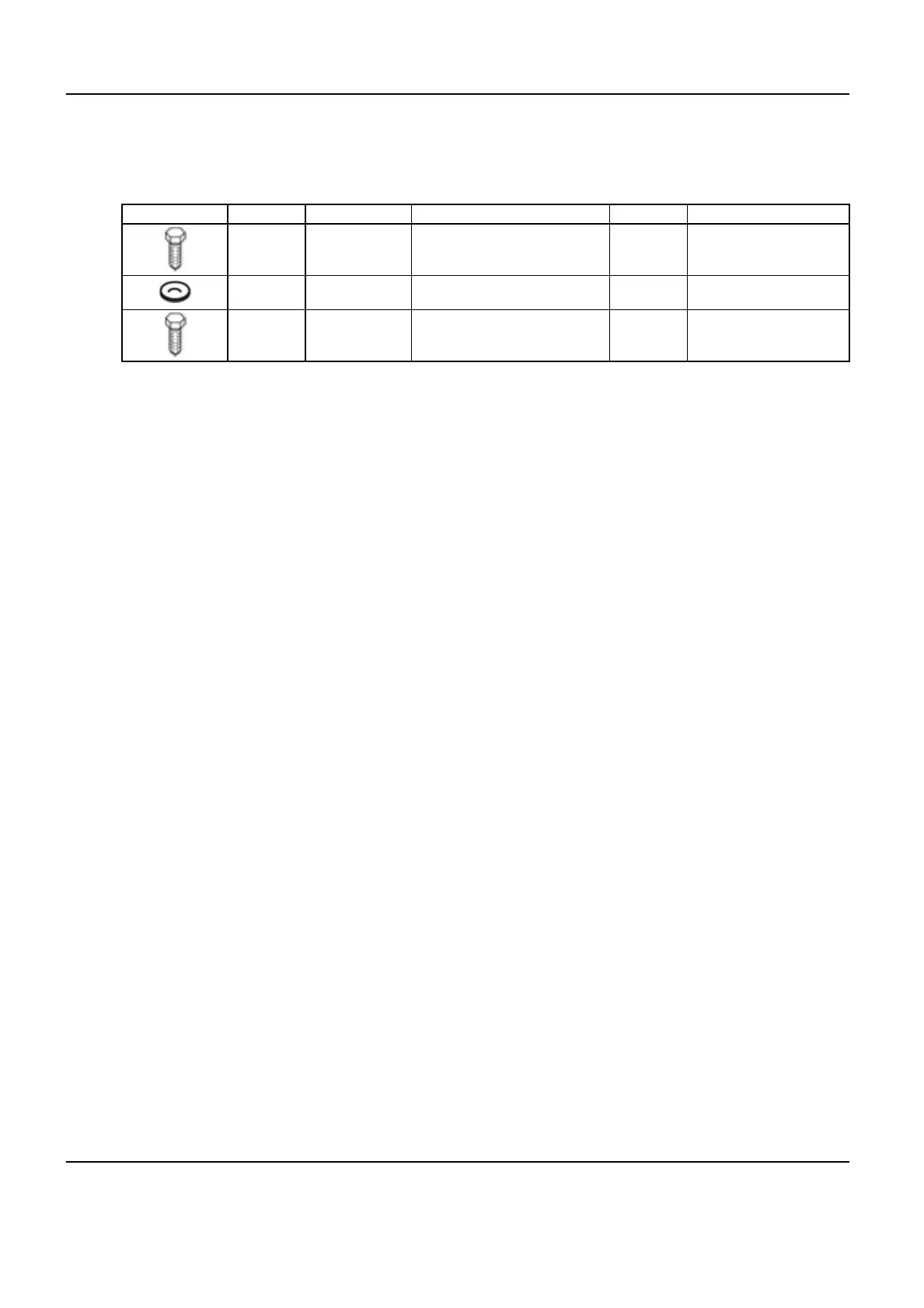

2.3.3.6 2285632 – Floor plate / Base plate assembly
Table 5-13:
Item Name Part # Description Quan. Notes
Hex Screws 2360523 Screw M16x30x30 Inox A4-80 Pass 12 pc For floor plate / Base plate
assembly
Washer 99125091 Washer P 17 mm/40 mm 34 pc 24 are used for the positioner
integration
Hex Screws 99133570 Screw M16x40x40 Inox A4-80 Pass 10 pc 4 only are used for Omega
NOTE: The kit 2285632 Floor plate / Baseplate assembly is needed when the floor plate is
installed. This part isn’t GE part. It’s ordered locally.
Innova 2100-IQ, 3100/3100-IQ, 4100/4100-IQ Cardiovascular Imaging System Pre-Installation Manual
GE Healthcare Direction 5160944-13-1EN, Revision 2
160 2 Mounting Requirements
