17.2 System Core Matrix
All lengths of cable are:
•
in useable meter when you look at group level, or
•
in meters (connector to connector) when you look at the cable level.

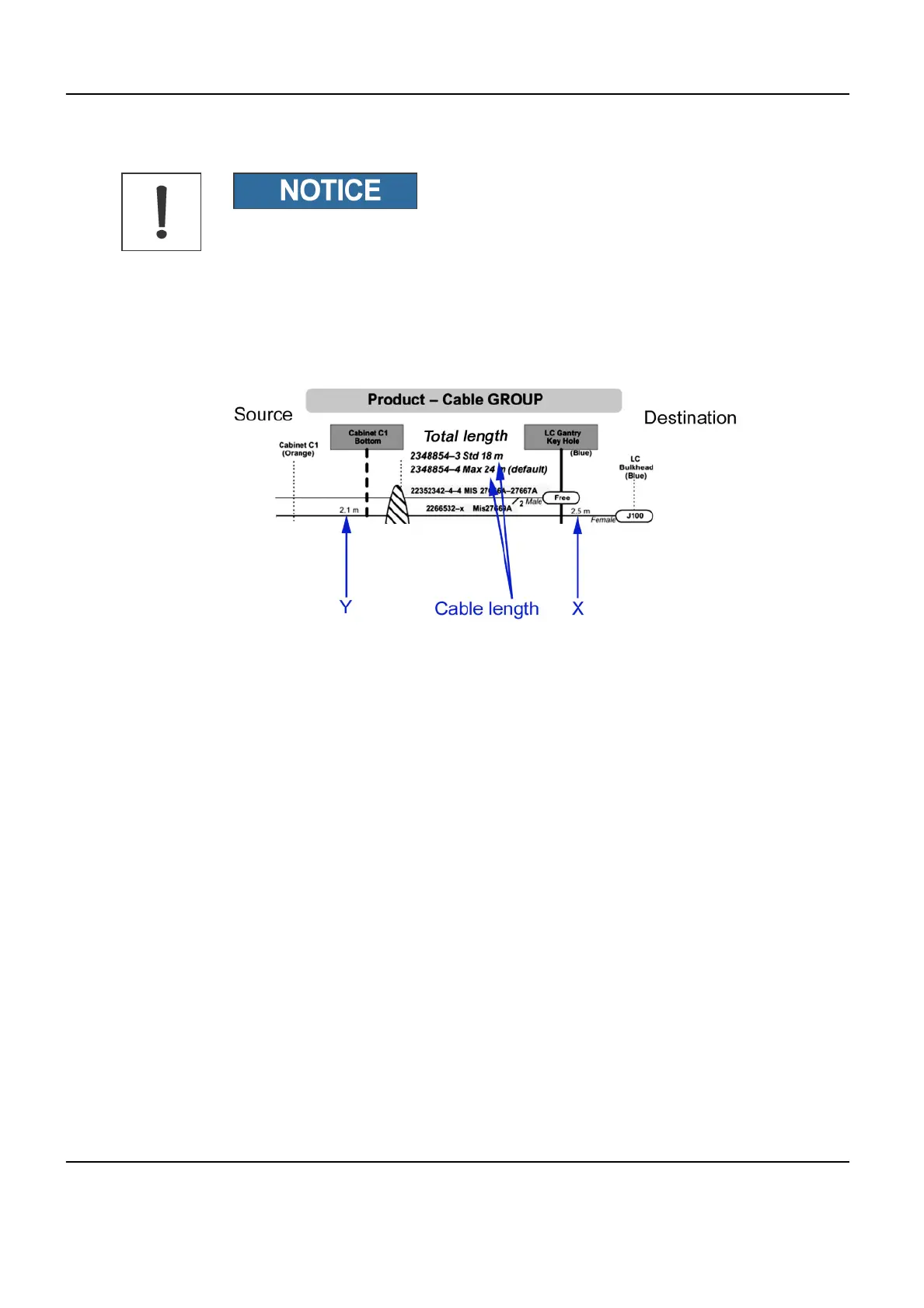

For a description of how to use the following cable group schematics, see below:
Illustration 6-20:
Cable length data is as follows:
•
Cable Length = the total cable length, connector to connector (example above is 18/24 meters).
•
X + Y = used length for connection within system (example above is 4.6 meters).
•
Cable Length - (X + Y) = available length for conduit run (example above is 13.4 or 19.4 meters).
Innova 2100-IQ, 3100/3100-IQ, 4100/4100-IQ Cardiovascular Imaging System Pre-Installation Manual
GE Healthcare Direction 5160944-13-1EN, Revision 2
204 17 Physical Runs
