2.4 Typical EMI Filter Enclosure
The EMI filter shall be installed on the sites with fluoro UPS. The filter itself will be delivered with
the UPS as part of the product.
The filter enclosure will be delivered with the PDB supplied by GE Consumer as part of the PDB.
If a supplier other than GE Consumer provides the PDB, it is a local responsibility to provide the
filter enclosure as well on the sites where a fluoro UPS will be installed.

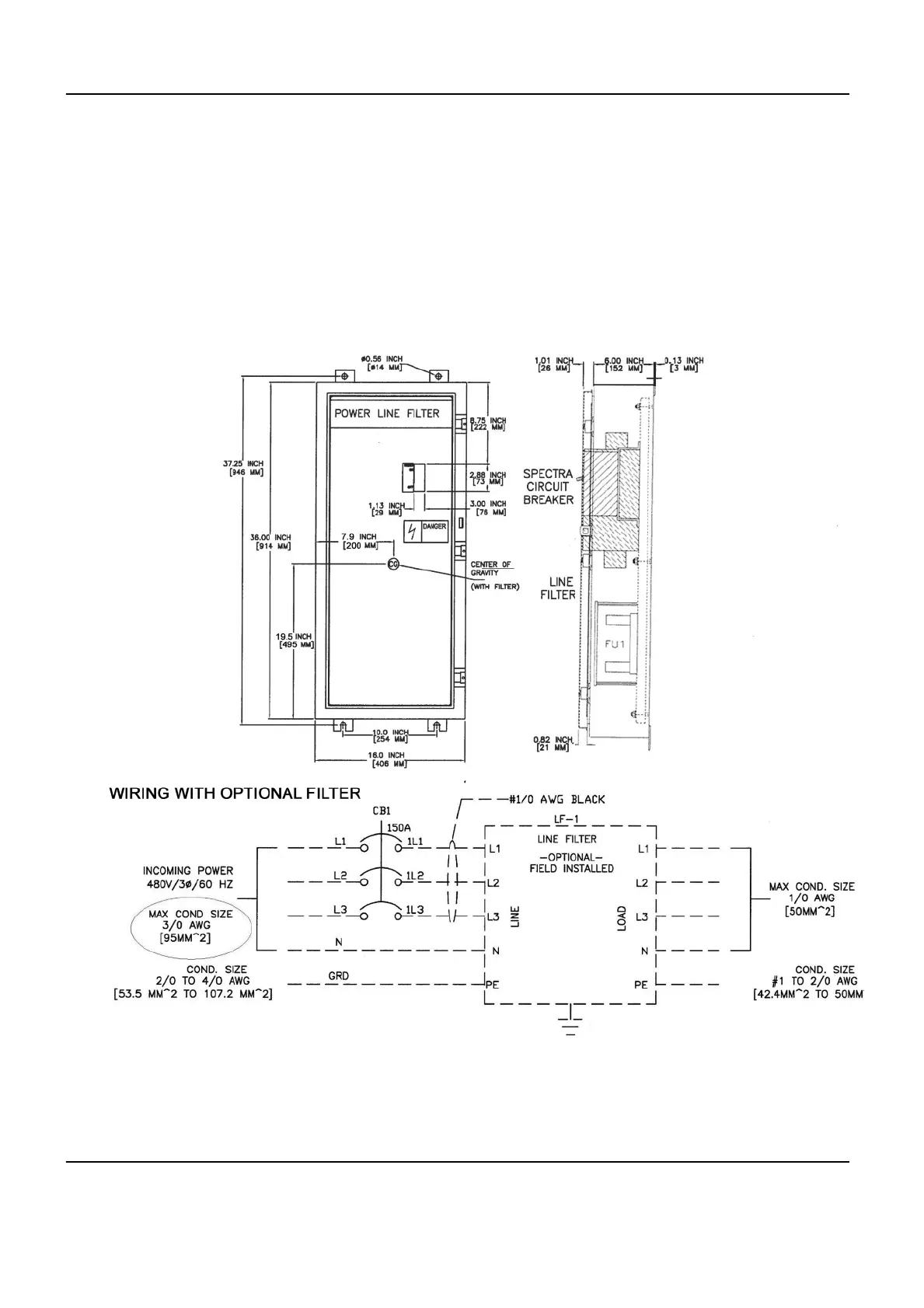

Illustration 6-9: Filter enclosure for USA
Innova 2100-IQ, 3100/3100-IQ, 4100/4100-IQ Cardiovascular Imaging System Pre-Installation Manual
GE Healthcare Direction 5160944-13-1EN, Revision 2
176 2 Recommended Power Distribution System
