Getting Started
1-32 LOGIQ V2/LOGIQ V1 – User Guide
Direction 5610736-100
Rev. 9
Control Panel Map

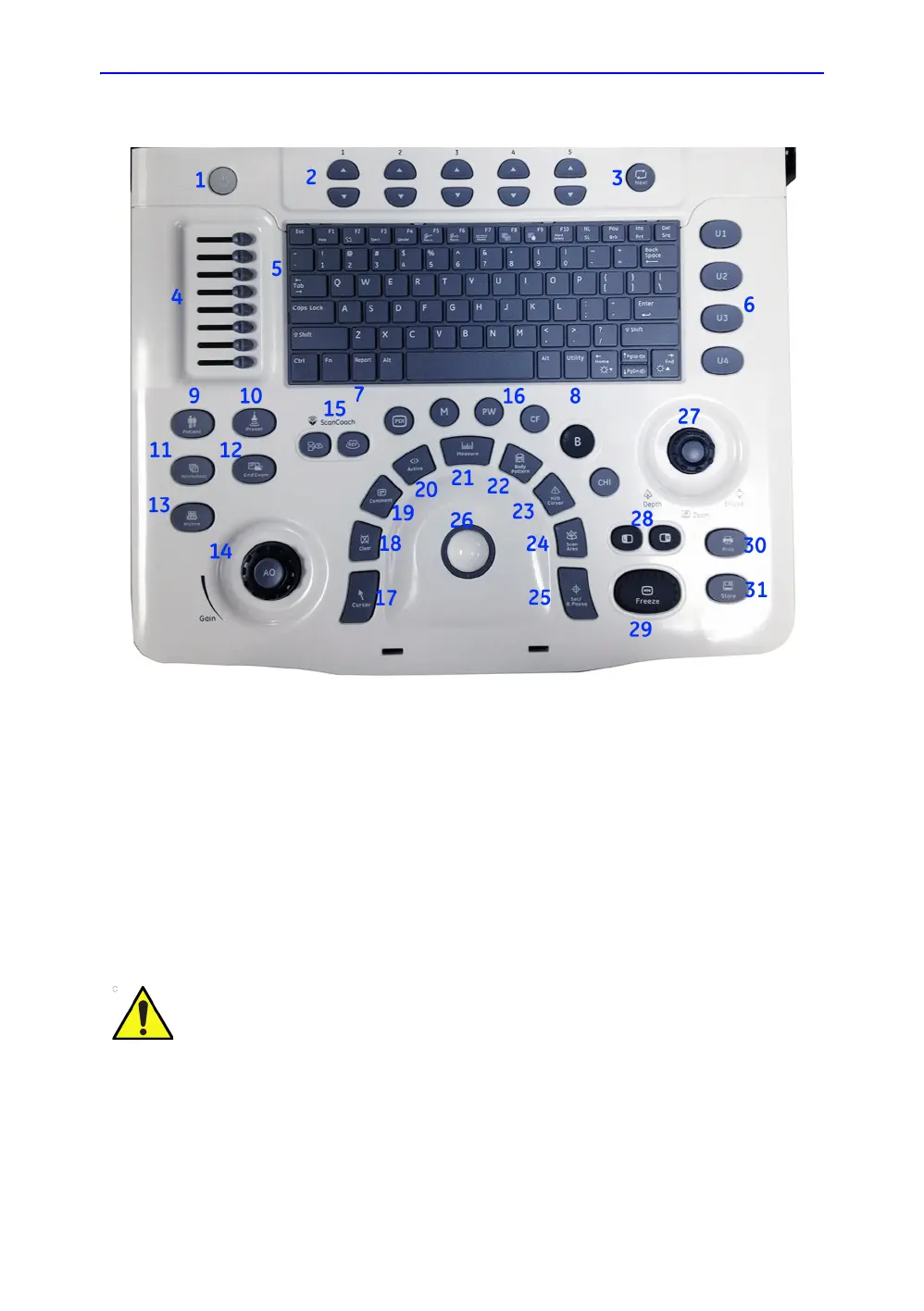

Figure 1-22. Control Panel map
1. Power On/Off
2. Primary Menu keys
3. Next key
4. TGC
5. A/N Keyboard
6. User Defined keys
7. Report key
8. Utility key
9. Patient key
10. Preset key
11. Worksheet key
12. End Exam key
13. Archive key
14. Gain/AO key
15. Scan Coach keys
16. Mode keys
17. Cursor key
18. Clear key
19. Comment key
20. Active key
21. Measure key
22. Body Pattern key
23. M/D Cursor key
24. Scan Area key
25. Set/B Pause key
26. Trackball
27. Depth/Zoom/Ellipse key
28. Left/Right key
29. Freeze key
30. Print key
31. Store key
CAUTION
Do not apply too much force when adjusting the TGC slide pots
as this could damage the slide pots.
