4–54 PQM POWER QUALITY METER – INSTRUCTION MANUAL
S4 ALARMS/CONTROL CHAPTER 4: PROGRAMMING
4.5.7 Pulse Input

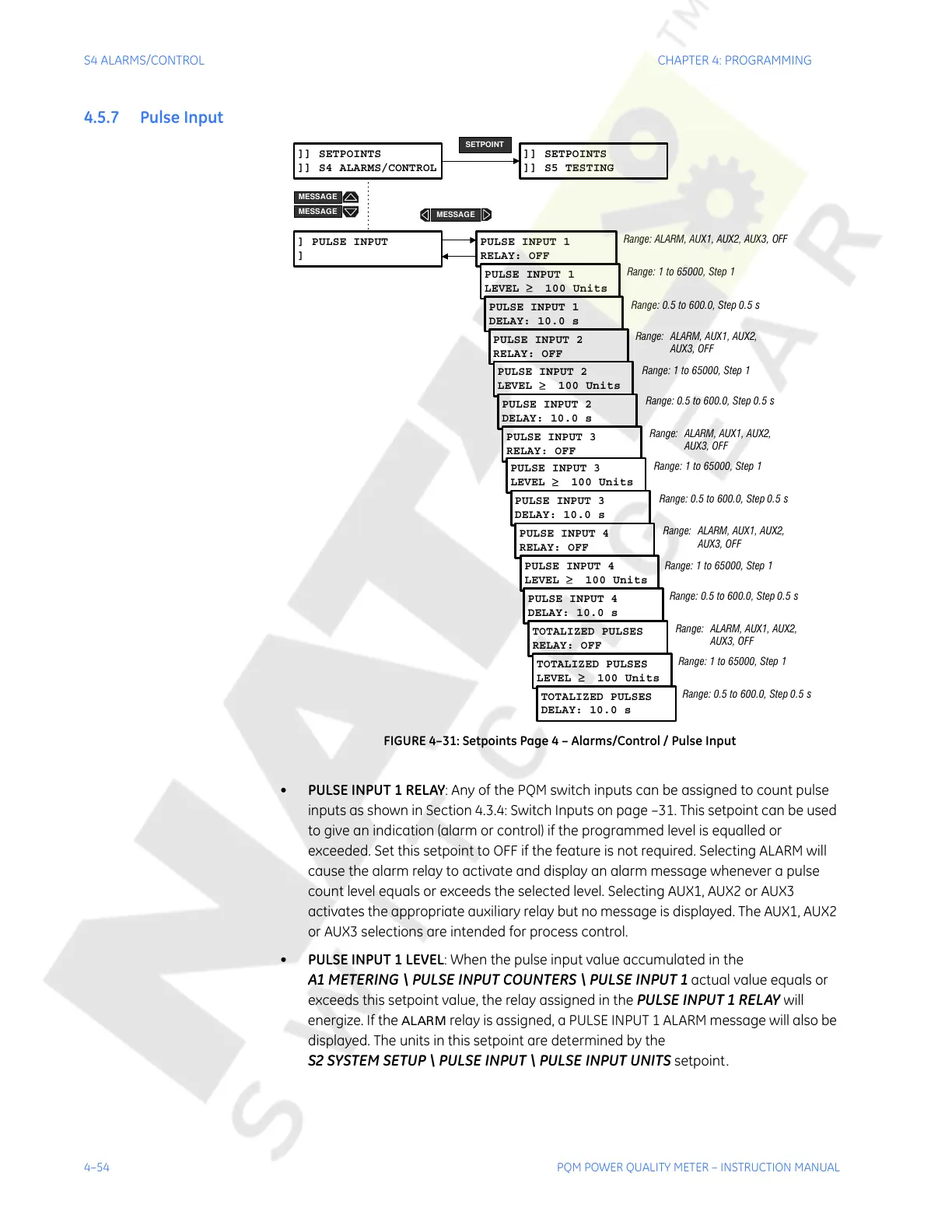

FIGURE 4–31: Setpoints Page 4 – Alarms/Control / Pulse Input
• PULSE INPUT 1 RELAY: Any of the PQM switch inputs can be assigned to count pulse
inputs as shown in Section 4.3.4: Switch Inputs on page –31. This setpoint can be used
to give an indication (alarm or control) if the programmed level is equalled or
exceeded. Set this setpoint to OFF if the feature is not required. Selecting ALARM will
cause the alarm relay to activate and display an alarm message whenever a pulse
count level equals or exceeds the selected level. Selecting AUX1, AUX2 or AUX3
activates the appropriate auxiliary relay but no message is displayed. The AUX1, AUX2
or AUX3 selections are intended for process control.
• PULSE INPUT 1 LEVEL: When the pulse input value accumulated in the
A1 METERING \ PULSE INPUT COUNTERS \ PULSE INPUT 1 actual value equals or
exceeds this setpoint value, the relay assigned in the
PULSE INPUT 1 RELAY will
energize. If the
ALARM relay is assigned, a PULSE INPUT 1 ALARM message will also be
displayed. The units in this setpoint are determined by the
S2 SYSTEM SETUP \ PULSE INPUT \ PULSE INPUT UNITS setpoint.
]] SETPOINTS
]] S4 ALARMS/CONTROL
] PULSE INPUT
]
PULSE INPUT 1
RELAY: OFF
PULSE INPUT 1
LEVEL
≥
100 Units
PULSE INPUT 1
DELAY: 10.0 s
]] SETPOINTS
]] S5 TESTING
SETPOINT
Range: ALARM, AUX1, AUX2, AUX3, OFF
PULSE INPUT 2
RELAY: OFF
PULSE INPUT 2
LEVEL
≥
100 Units
PULSE INPUT 2
DELAY: 10.0 s
Range: 1 to 65000, Step 1
PULSE INPUT 3
RELAY: OFF
PULSE INPUT 3
LEVEL
≥
100 Units
Range: 1 to 65000, Step 1
Range: 0.5 to 600.0, Step 0.5 s
Range: 0.5 to 600.0, Step 0.5 s
PULSE INPUT 3
DELAY: 10.0 s
PULSE INPUT 4
RELAY: OFF
PULSE INPUT 4
LEVEL
≥
100 Units
Range: 0.5 to 600.0, Step 0.5 s
PULSE INPUT 4
DELAY: 10.0 s
TOTALIZED PULSES
RELAY: OFF
TOTALIZED PULSES
LEVEL
≥
100 Units
Range: 0.5 to 600.0, Step 0.5 s
TOTALIZED PULSES
DELAY: 10.0 s
Range: 1 to 65000, Step 1
Range: 1 to 65000, Step 1
Range: 0.5 to 600.0, Step 0.5 s
Range: ALARM, AUX1, AUX2,
AUX3, OFF
Range: 1 to 65000, Step 1
MESSAGE
MESSAGE
MESSAGE
Range: ALARM, AUX1, AUX2,
AUX3, OFF
Range: ALARM, AUX1, AUX2,
AUX3, OFF
Range: ALARM, AUX1, AUX2,
AUX3, OFF
