CHAPTER 4: PROGRAMMING S1 PQM SETUP
PQM POWER QUALITY METER – INSTRUCTION MANUAL 4–15
4.2.10 Trace Memory

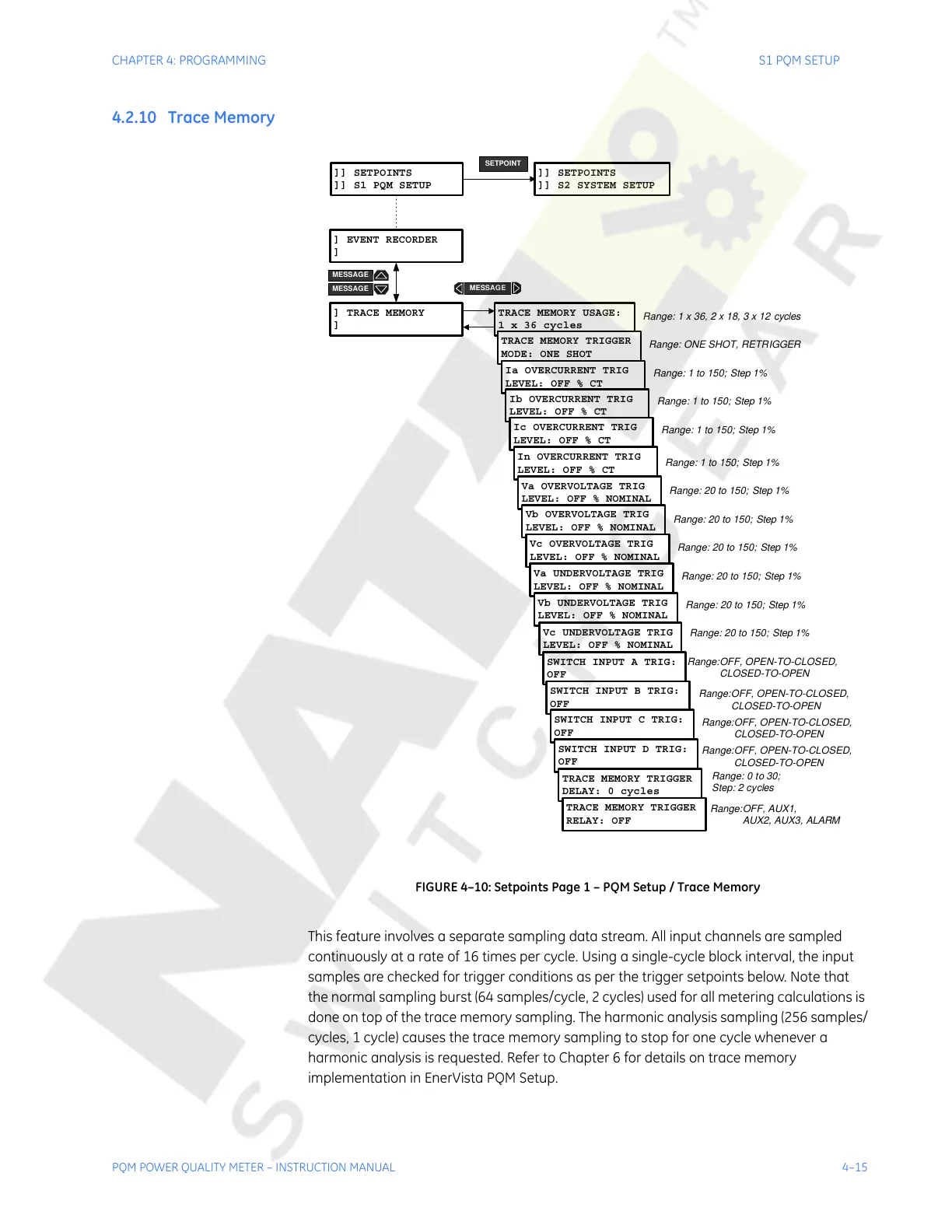

FIGURE 4–10: Setpoints Page 1 – PQM Setup / Trace Memory
This feature involves a separate sampling data stream. All input channels are sampled
continuously at a rate of 16 times per cycle. Using a single-cycle block interval, the input
samples are checked for trigger conditions as per the trigger setpoints below. Note that
the normal sampling burst (64 samples/cycle, 2 cycles) used for all metering calculations is
done on top of the trace memory sampling. The harmonic analysis sampling (256 samples/
cycles, 1 cycle) causes the trace memory sampling to stop for one cycle whenever a
harmonic analysis is requested. Refer to Chapter 6 for details on trace memory
implementation in EnerVista PQM Setup.
Range:OFF, OPEN-TO-CLOSED,
CLOSED-TO-OPEN
]] SETPOINTS
]] S1 PQM SETUP
TRACE MEMORY USAGE:
1 x 36 cycles
]] SETPOINTS
]] S2 SYSTEM SETUP
SETPOINT
Range: 1 x 36, 2 x 18, 3 x 12 cycles
] EVENT RECORDER
]
] TRACE MEMORY
]
TRACE MEMORY TRIGGER
MODE: ONE SHOT
Ia OVERCURRENT TRIG
LEVEL: OFF % CT
Ib OVERCURRENT TRIG
LEVEL: OFF % CT
Ic OVERCURRENT TRIG
LEVEL: OFF % CT
In OVERCURRENT TRIG
LEVEL: OFF % CT
Va OVERVOLTAGE TRIG
LEVEL: OFF % NOMINAL
Vb OVERVOLTAGE TRIG
LEVEL: OFF % NOMINAL
Vc OVERVOLTAGE TRIG
LEVEL: OFF % NOMINAL
Va UNDERVOLTAGE TRIG
LEVEL: OFF % NOMINAL
Vb UNDERVOLTAGE TRIG
LEVEL: OFF % NOMINAL
Vc UNDERVOLTAGE TRIG
LEVEL: OFF % NOMINAL
SWITCH INPUT A TRIG:
OFF
SWITCH INPUT B TRIG:
OFF
SWITCH INPUT C TRIG:
OFF
SWITCH INPUT D TRIG:
OFF
Range: ONE SHOT, RETRIGGER
Range: 1 to 150; Step 1%
TRACE MEMORY TRIGGER
DELAY: 0 cycles
TRACE MEMORY TRIGGER
RELAY: OFF
Range:OFF, OPEN-TO-CLOSED,
CLOSED-TO-OPEN
Range: 0 to 30;
Step: 2 cycles
Range:OFF, AUX1,
AUX2, AUX3, ALARM
Range: 1 to 150; Step 1%
Range: 1 to 150; Step 1%
Range: 1 to 150; Step 1%
Range: 20 to 150; Step 1%
Range: 20 to 150; Step 1%
Range: 20 to 150; Step 1%
Range: 20 to 150; Step 1%
Range: 20 to 150; Step 1%
Range: 20 to 150; Step 1%
Range:OFF, OPEN-TO-CLOSED,
CLOSED-TO-OPEN
Range:OFF, OPEN-TO-CLOSED,
CLOSED-TO-OPEN
MESSAGE
MESSAGE
MESSAGE
