CHAPTER 5: MONITORING A1 METERING
PQM POWER QUALITY METER – INSTRUCTION MANUAL 5–9

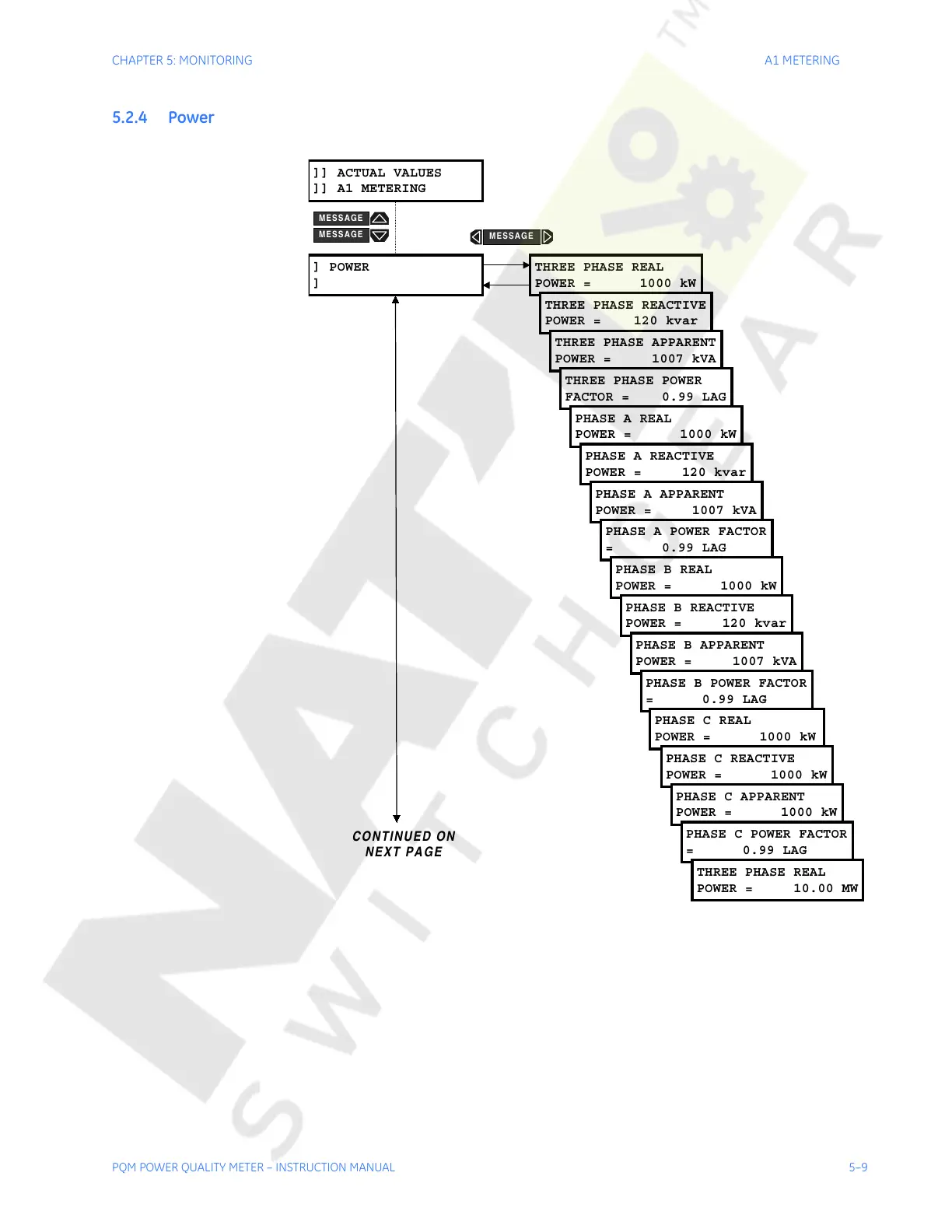

5.2.4 Power
]] ACTUAL VALUES
]] A1 METERING
] POWER
]
THREE PHASE REAL
POWER = 1000 kW
THREE PHASE REACTIVE
POWER = 120 kvar
THREE PHASE APPARENT
POWER = 1007 kVA
THREE PHASE POWER
FACTOR = 0.99 LAG
PHASE A REAL
POWER = 1000 kW
PHASE A REACTIVE
POWER = 120 kvar
PHASE A APPARENT
POWER = 1007 kVA
PHASE A POWER FACTOR
= 0.99 LAG
PHASE B REAL
POWER = 1000 kW
PHASE B REACTIVE
POWER = 120 kvar
PHASE B APPARENT
POWER = 1007 kVA
PHASE B POWER FACTOR
= 0.99 LAG
PHASE C REAL
POWER = 1000 kW
PHASE C REACTIVE
POWER = 1000 kW
PHASE C APPARENT
POWER = 1000 kW
PHASE C POWER FACTOR
= 0.99 LAG
THREE PHASE REAL
POWER = 10.00 MW
MESSAGE
MESSAGE
MESSAGE
CONTINUED ON
NEXT PAGE
