4–62 PQM POWER QUALITY METER – INSTRUCTION MANUAL
S5 TESTING CHAPTER 4: PROGRAMMING
4.6.5 Switch Inputs
Simulation

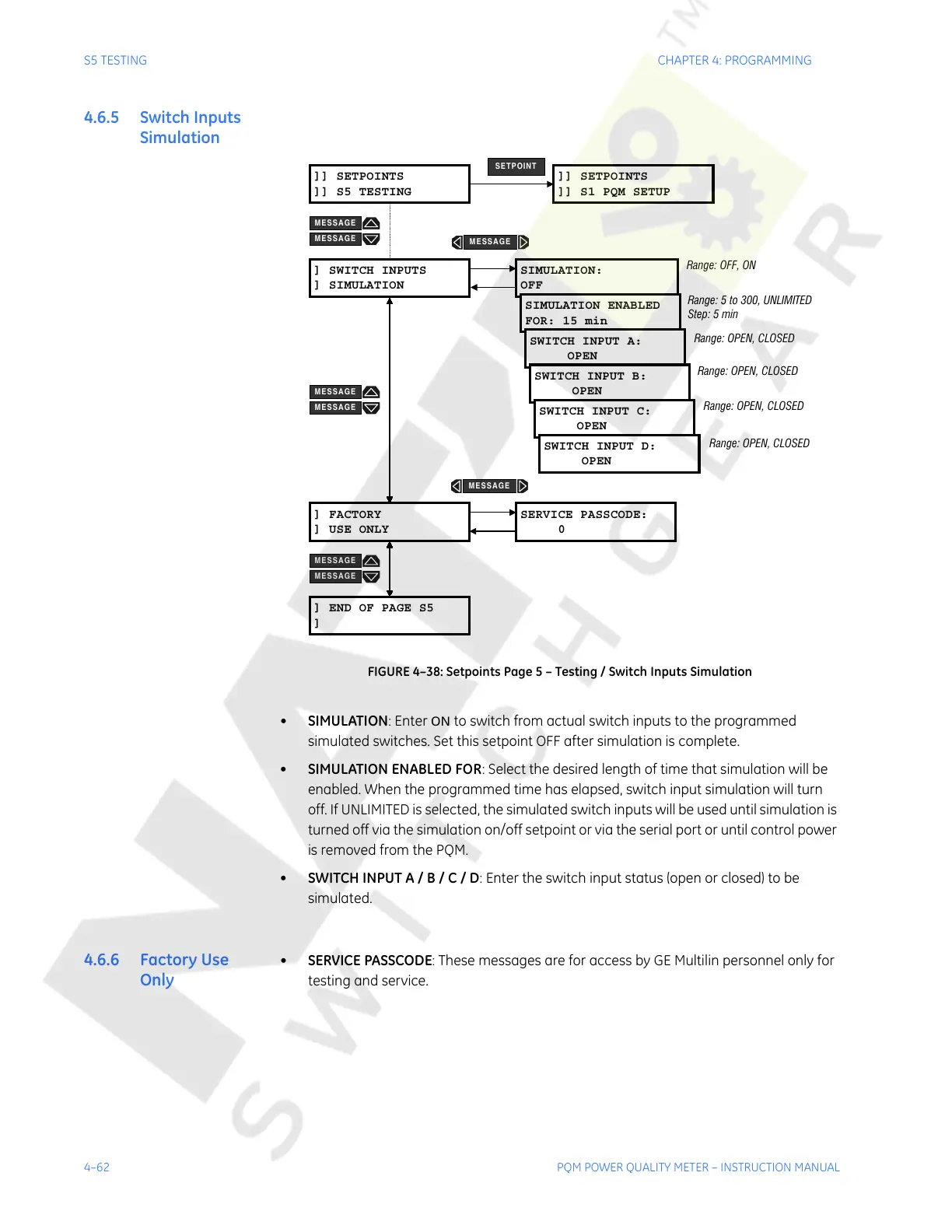

FIGURE 4–38: Setpoints Page 5 – Testing / Switch Inputs Simulation
• SIMULATION: Enter ON to switch from actual switch inputs to the programmed
simulated switches. Set this setpoint OFF after simulation is complete.
• SIMULATION ENABLED FOR: Select the desired length of time that simulation will be
enabled. When the programmed time has elapsed, switch input simulation will turn
off. If UNLIMITED is selected, the simulated switch inputs will be used until simulation is
turned off via the simulation on/off setpoint or via the serial port or until control power
is removed from the PQM.
• SWITCH INPUT A / B / C / D: Enter the switch input status (open or closed) to be
simulated.
4.6.6 Factory Use
Only
• SERVICE PASSCODE: These messages are for access by GE Multilin personnel only for
testing and service.
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
]] SETPOINTS
]] S5 TESTING
] SWITCH INPUTS
] SIMULATION
SIMULATION:
OFF
SIMULATION ENABLED
FOR: 15 min
SWITCH INPUT A:
OPEN
]] SETPOINTS
]] S1 PQM SETUP
SETPOINT
Range: OFF, ON
Range: 5 to 300, UNLIMITED
Step: 5 min
SWITCH INPUT B:
OPEN
SWITCH INPUT C:
OPEN
SWITCH INPUT D:
OPEN
Range: OPEN, CLOSED
Range: OPEN, CLOSED
Range: OPEN, CLOSED
Range: OPEN, CLOSED
] FACTORY
] USE ONLY
] END OF PAGE S5
]
SERVICE PASSCODE:
0
