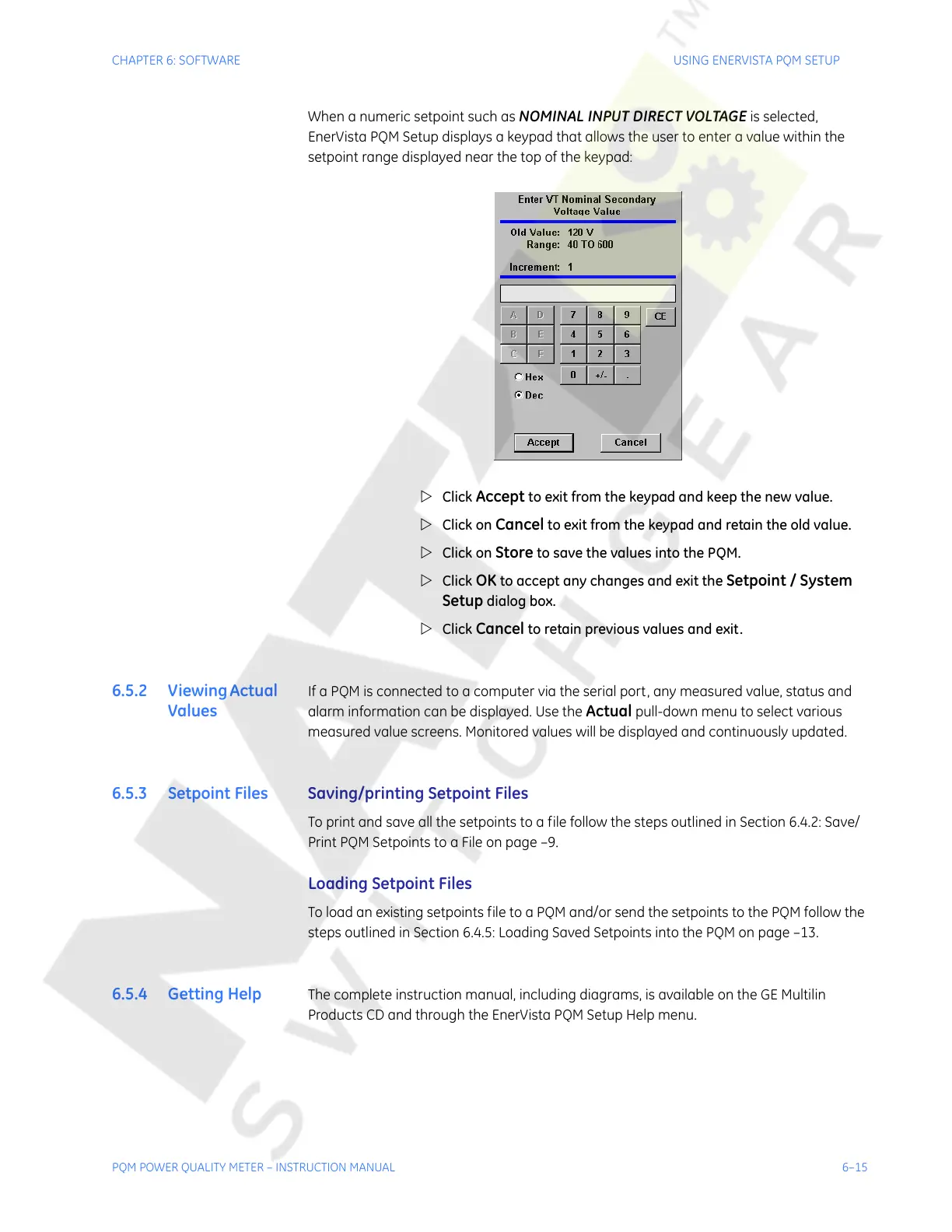

CHAPTER 6: SOFTWARE USING ENERVISTA PQM SETUP
PQM POWER QUALITY METER – INSTRUCTION MANUAL 6–15
When a numeric setpoint such as NOMINAL INPUT DIRECT VOLTAGE is selected,
EnerVista PQM Setup displays a keypad that allows the user to enter a value within the
setpoint range displayed near the top of the keypad:
Z Click
Accept to exit from the keypad and keep the new value.
Z Click on
Cancel to exit from the keypad and retain the old value.
Z Click on
Store to save the values into the PQM.
Z Click
OK to accept any changes and exit the Setpoint / System
Setup dialog box.
Z Click
Cancel to retain previous values and exit.
6.5.2 Viewing Actual
Values
If a PQM is connected to a computer via the serial port, any measured value, status and
alarm information can be displayed. Use the
Actual pull-down menu to select various
measured value screens. Monitored values will be displayed and continuously updated.
6.5.3 Setpoint Files Saving/printing Setpoint Files
To print and save all the setpoints to a file follow the steps outlined in Section 6.4.2: Save/
Print PQM Setpoints to a File on page –9.
Loading Setpoint Files
To load an existing setpoints file to a PQM and/or send the setpoints to the PQM follow the
steps outlined in Section 6.4.5: Loading Saved Setpoints into the PQM on page –13.
6.5.4 Getting Help The complete instruction manual, including diagrams, is available on the GE Multilin
Products CD and through the EnerVista PQM Setup Help menu.
