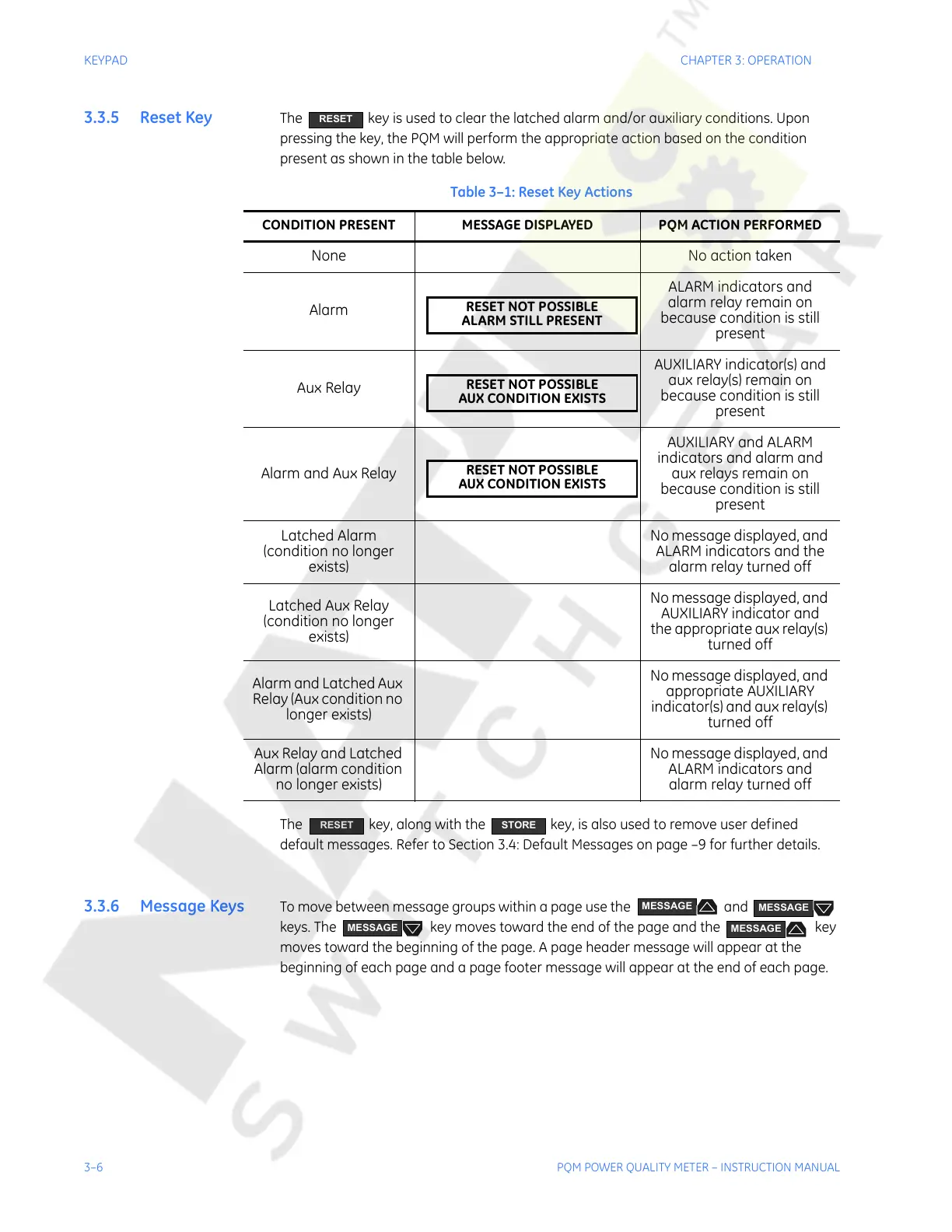

3–6 PQM POWER QUALITY METER – INSTRUCTION MANUAL
KEYPAD CHAPTER 3: OPERATION
3.3.5 Reset Key The key is used to clear the latched alarm and/or auxiliary conditions. Upon
pressing the key, the PQM will perform the appropriate action based on the condition
present as shown in the table below.
The key, along with the key, is also used to remove user defined
default messages. Refer to Section 3.4: Default Messages on page –9 for further details.
3.3.6 Message Keys To move between message groups within a page use the and
keys. The key moves toward the end of the page and the key
moves toward the beginning of the page. A page header message will appear at the
beginning of each page and a page footer message will appear at the end of each page.
RESET
Table 3–1: Reset Key Actions
CONDITION PRESENT MESSAGE DISPLAYED PQM ACTION PERFORMED
None No action taken
Alarm
ALARM indicators and
alarm relay remain on
because condition is still
present
Aux Relay
AUXILIARY indicator(s) and
aux relay(s) remain on
because condition is still
present
Alarm and Aux Relay
AUXILIARY and ALARM
indicators and alarm and
aux relays remain on
because condition is still
present
Latched Alarm
(condition no longer
exists)
No message displayed, and
ALARM indicators and the
alarm relay turned off
Latched Aux Relay
(condition no longer
exists)
No message displayed, and
AUXILIARY indicator and
the appropriate aux relay(s)
turned off
Alarm and Latched Aux
Relay (Aux condition no
longer exists)
No message displayed, and
appropriate AUXILIARY
indicator(s) and aux relay(s)
turned off
Aux Relay and Latched
Alarm (alarm condition
no longer exists)
No message displayed, and
ALARM indicators and
alarm relay turned off
RESET NOT POSSIBLE
ALARM STILL PRESENT
RESET NOT POSSIBLE
AUX CONDITION EXISTS
RESET NOT POSSIBLE
AUX CONDITION EXISTS
RESET STORE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
