4–36 PQM POWER QUALITY METER – INSTRUCTION MANUAL
S2 SYSTEM SETUP CHAPTER 4: PROGRAMMING
4.3.7 Data Logger

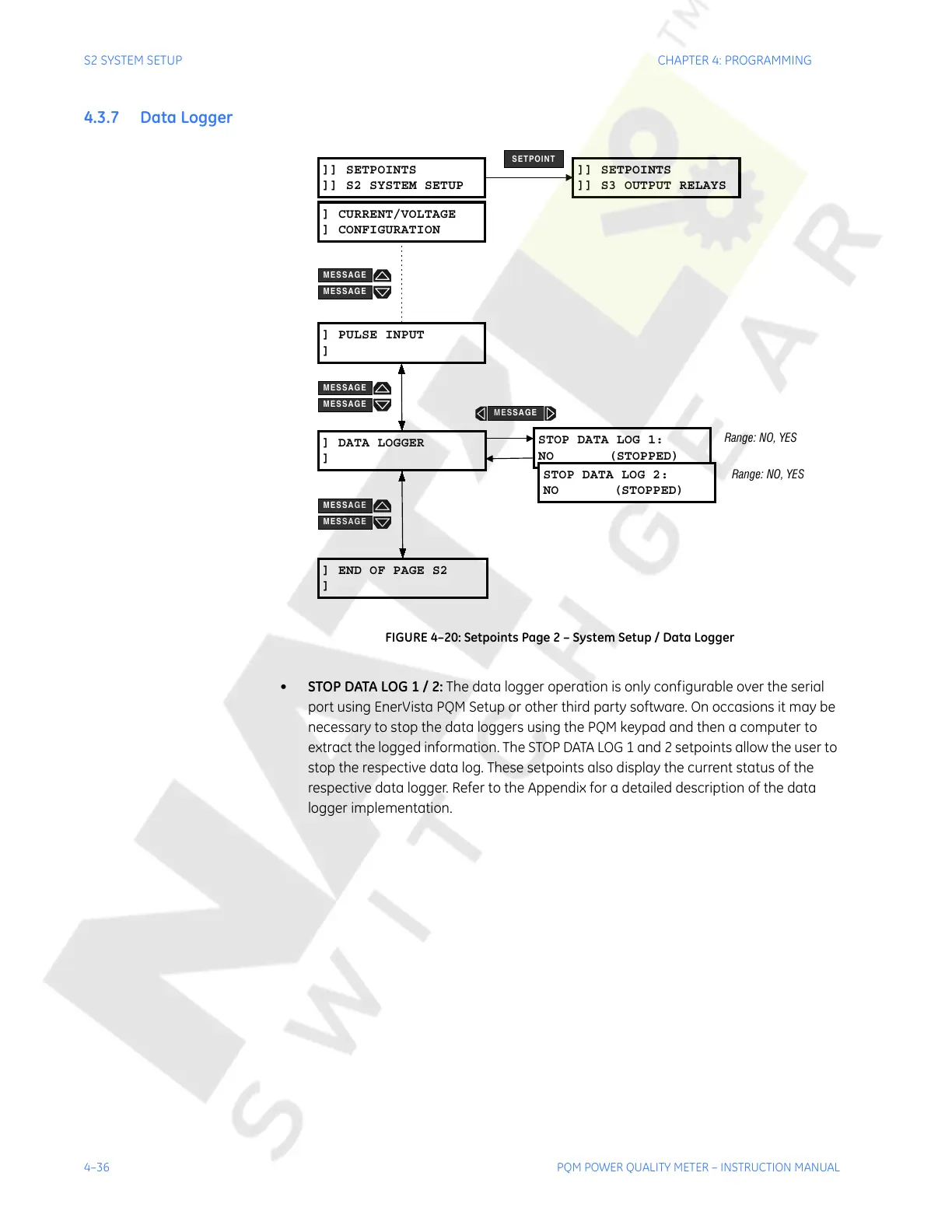

FIGURE 4–20: Setpoints Page 2 – System Setup / Data Logger
• STOP DATA LOG 1 / 2: The data logger operation is only configurable over the serial
port using EnerVista PQM Setup or other third party software. On occasions it may be
necessary to stop the data loggers using the PQM keypad and then a computer to
extract the logged information. The STOP DATA LOG 1 and 2 setpoints allow the user to
stop the respective data log. These setpoints also display the current status of the
respective data logger. Refer to the Appendix for a detailed description of the data
logger implementation.
]] SETPOINTS
]] S2 SYSTEM SETUP
]] SETPOINTS
]] S3 OUTPUT RELAYS
SETPOINT
] CURRENT/VOLTAGE
] CONFIGURATION
STOP DATA LOG 1:
NO (STOPPED)
STOP DATA LOG 2:
NO (STOPPED)
Range: NO, YES
] DATA LOGGER
]
] PULSE INPUT
]
] END OF PAGE S2
]
Range: NO, YES
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
MESSAGE
