CHAPTER 5: MONITORING A2 STATUS

PQM POWER QUALITY METER – INSTRUCTION MANUAL 5–21

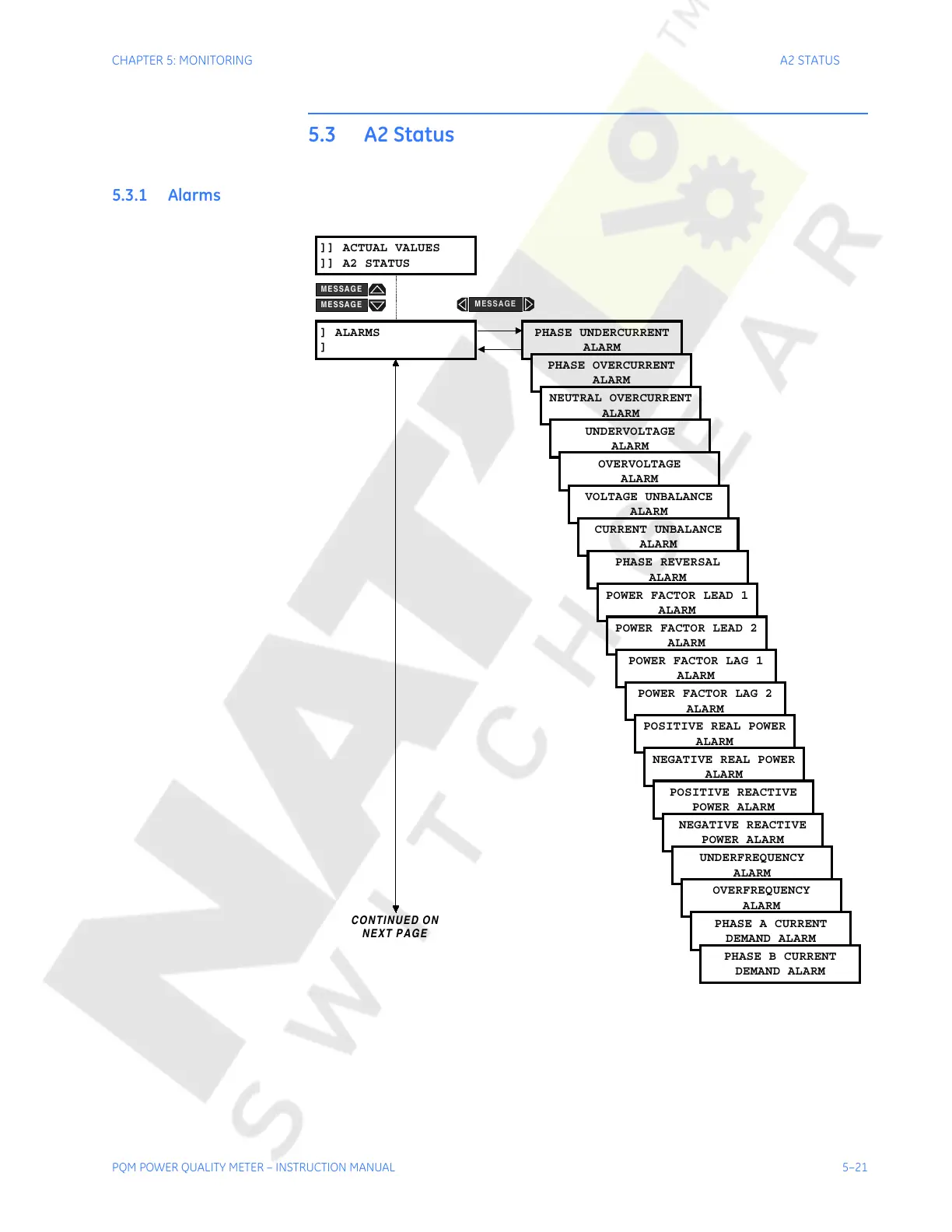

5.3 A2 Status

5.3.1 Alarms

]] ACTUAL VALUES

]] A2 STATUS

] ALARMS

]

PHASE UNDERCURRENT

ALARM

PHASE OVERCURRENT

ALARM

NEUTRAL OVERCURRENT

ALARM

UNDERVOLTAGE

ALARM

OVERVOLTAGE

ALARM

VOLTAGE UNBALANCE

ALARM

CURRENT UNBALANCE

ALARM

PHASE REVERSAL

ALARM

POWER FACTOR LEAD 1

ALARM

POWER FACTOR LEAD 2

ALARM

POWER FACTOR LAG 1

ALARM

POWER FACTOR LAG 2

ALARM

POSITIVE REAL POWER

ALARM

NEGATIVE REAL POWER

ALARM

POSITIVE REACTIVE

POWER ALARM

NEGATIVE REACTIVE

POWER ALARM

UNDERFREQUENCY

ALARM

OVERFREQUENCY

ALARM

MESSAGE

CONTINUED ON

PHASE A CURRENT

DEMAND ALARM

PHASE B CURRENT

DEMAND ALARM
