6. Control Functions and Parameter Settings
6-54
B50-0~0
to B59-3

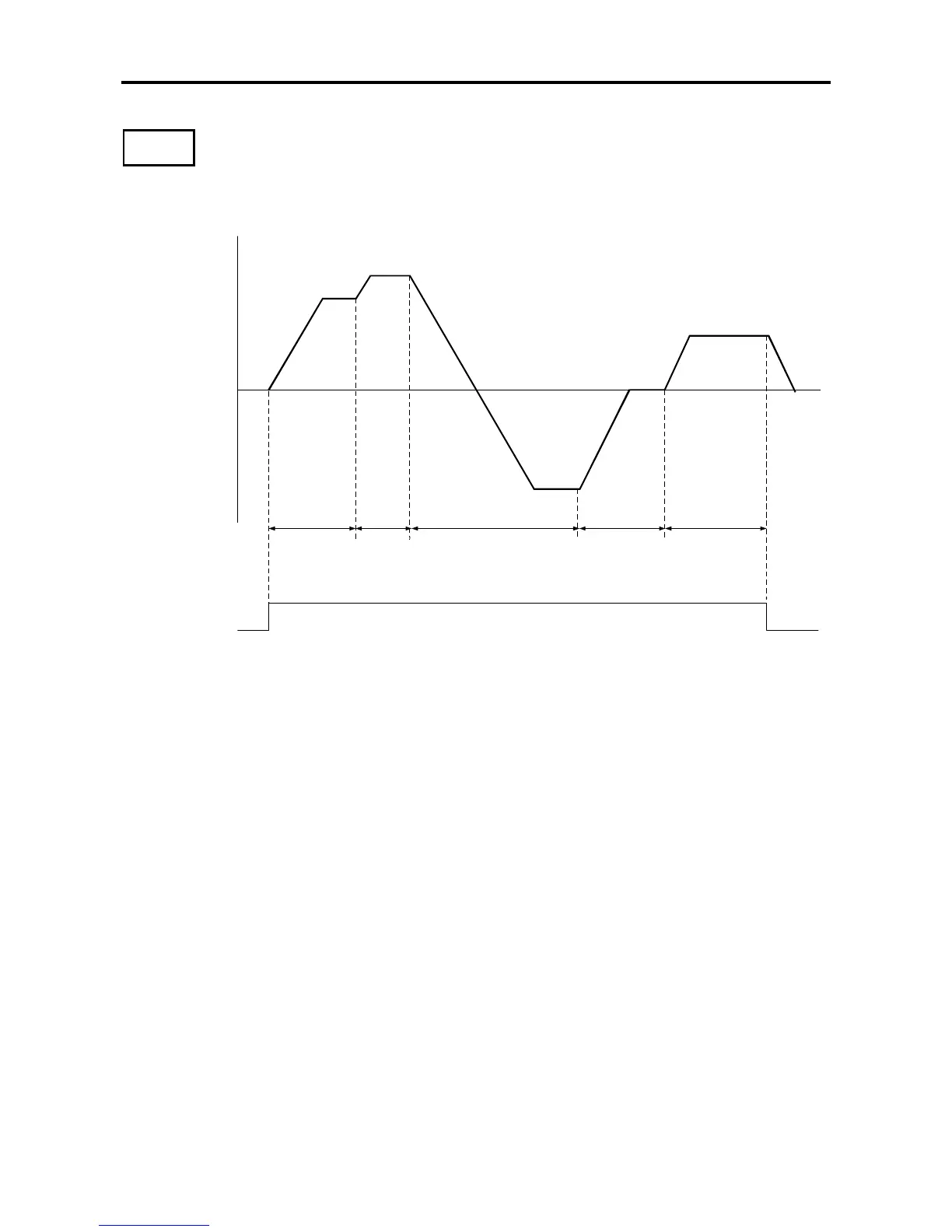

Pattern run function
The frequency (speed), run direction and operation time can be controlled automatically with
the pattern run function
RUN
Step-0
B50-2
B50-1
Step-1
B51-2
B51-1
Step-2
B52-2
B52-1
B53-1
Step-3
B53-2
Step-4
B54-2
B54-1
time
Frequency (Speed)
(1) A max. of ten patterns can be set. Program in the B50-B59 blocks as shown below.
The remote setting input point is selected with C02-0 = 4
n is the step No. from 0 to 9.
B5n-0: Run mode
= 0: Stop
= 1: Forward run
= 2: Reverse run
= 3: Final step (set when repeating before B59)
B5n-1: Run frequency or speed (%)
B5n-2: Run time (sec)
B5n-3: Return destination step
= 0 to 8
(Set the No. of the step to be executed next when B5n-0=3.)
To Next Page
