5. Control Input / Output
5-13
5-8 Programmable analog output function (PAO)
5-8-1 Types of analog outputs
As a standard, there are two programmable analog outputs (10 bits) in the VAT2000, with terminal board
numbers FM-COM, and AM-COM. Two more analog outputs are available by the optional PCB
U2KV23TR0 (Trace Back option).
Each output can be programmed with the internal functions shown in Fig. 5-8. As default, FM is assigned
as “output frequency” and AM is assigned as “Motor output current”.
Default settings
Terminal symbol Setting
FM Output frequency
AM Output current (Motor)
5-8-2 Setting the analog output
The following internal data or functions can be output to FM, AM terminals by parameters C13-0 and C13-
1 as shown in Fig. 5-8.
The extended analog outputs AO1 and AO2, can be addressed with the internal data by parameters C39-
0 and C39-1.
If needed, the gain of analog outputs can be adjusted by parameters C14-0, C14-1.
Terminal blockInternal Data
PAO
C13-0=0
C13-1=3
1
0
2
3
4
5
6
7
8
9
10
Output frequency
Setting frequency (Setting speed)
Cushion output
Output current (Motor)
Output current (Drive)
Output voltage
Output Power (Drive)
DC voltage
OLT Monitor
Heat sink temperature
Motor Speed
U2KV23TRO Option
FM
AM
(C39-0)
AO1
(C39-1)
AO2

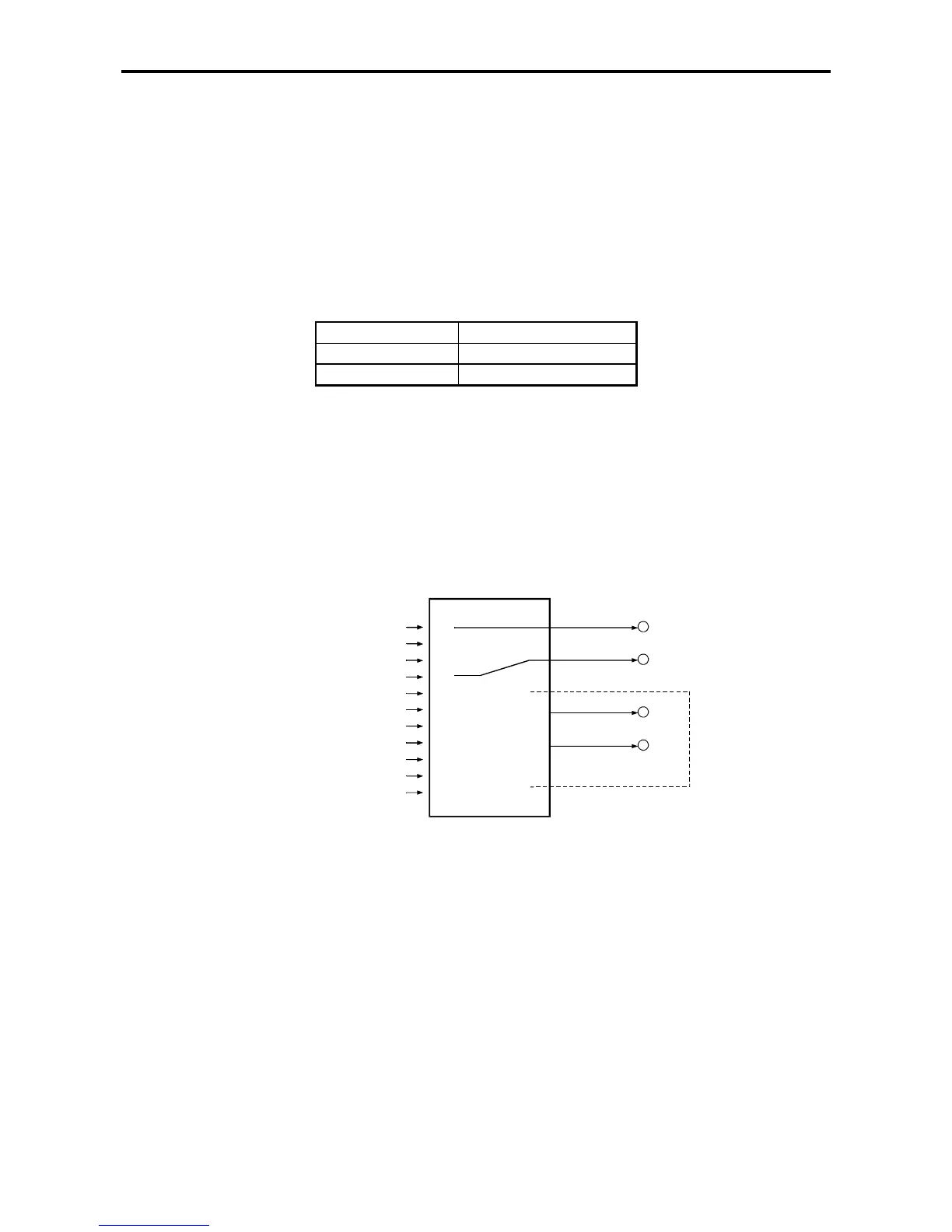

Fig. 5-8 Analog output assignment
