GE VAT2000 User Manual

7. Options
7-4

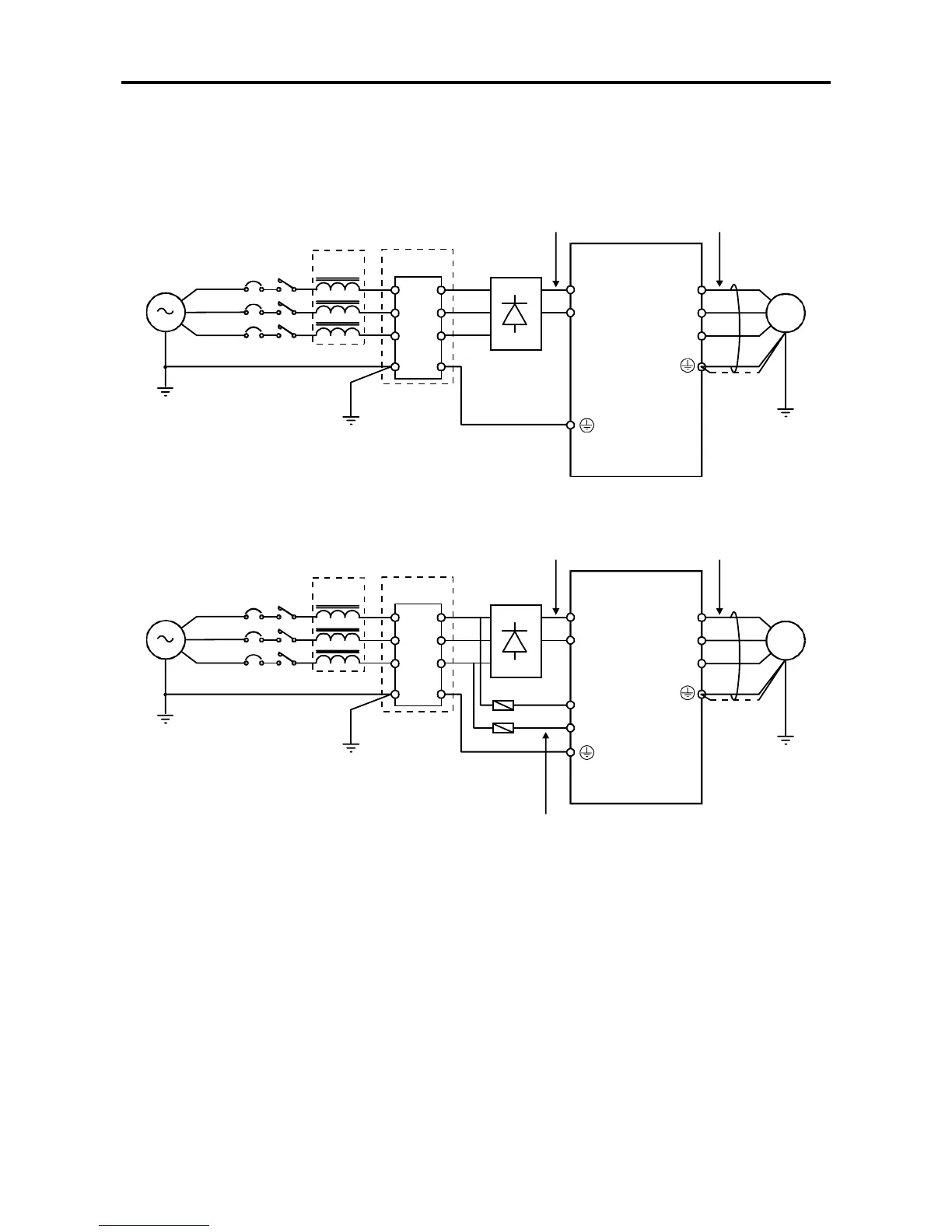

7-2 VAT2000’s main option
VAT2000 catalog numbers U2KxxxKxD, are for DC supply, allowing configurations in common bus.
(1) U2KX00K4D – U2KX37K0D, U2KN00K4D – U2KN07K5D
U
VAT2000
(main option "D")
L+
L-
MC
ACL
DC Power Supply (Note 1) Output Voltage (Note 2)
Noise Filter
MCCB
V
W
M
1
2
4
5
6
E
3
E
(2) U2KX45K0D, U2KN11K0D – U2KN37K0D
VAT2000
(main option "D")
UL+
L-
MC
ACL
DC Power Supply (Note 1)
AC Control Power supply for FAN and / or MC
of VAT2000 (Note 3)
Output Voltage (Note 2)
Noise Filter
MCCB
V
W
M
1
2
4
5
6
E
3
E
l1
l3
Fuse
(Note 1) DC Power Supply Voltage
“X” type 520V-720V DC
“N” type 270V-360V DC
(Note 2) Output Voltage
“X” type Max. 480V AC
“N” type Max. 230V AC
An output voltage exceeding the DC supply voltage / 1.35, can not be attained.
(Note 3) AC Control power supply for FAN and/or MC of VAT2000
“X” type 380V-460V ± 10% 50/60Hz ± 5%, 480V + 5% 50/60Hz ± 5%,
“N” type 200V-230V ± 10% 50/60Hz ± 5%
