5. Control Input / Output
5-14

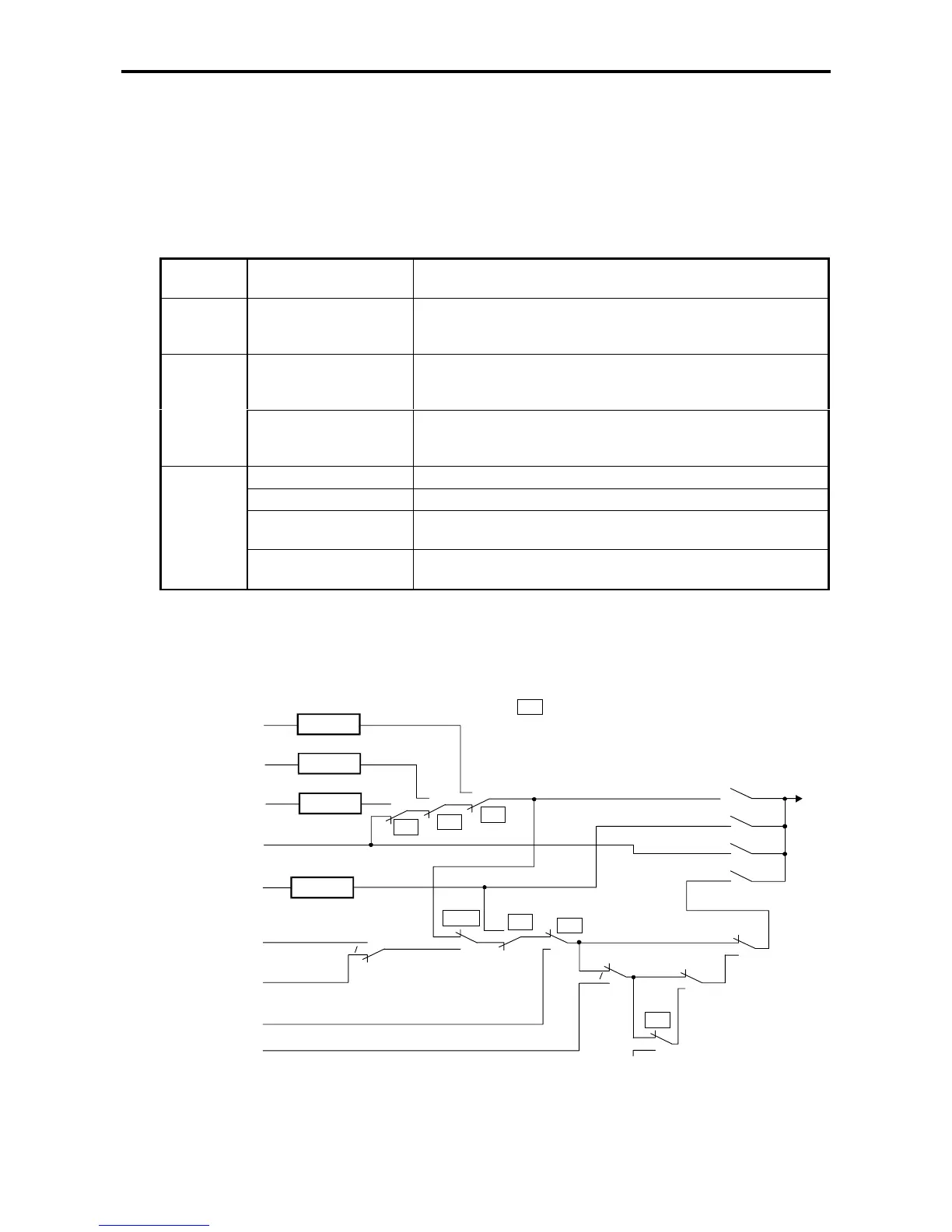

5-9 Selecting the setting data
5-9-1 Speed setting
(1) Speed setting selection
The speed setting in VAT2000 is possible from either analog input signals, or from host computer or
from the operation panel. There are a total of nine different setting, all selectable.
Setting
input point
Setting data Explanation
Analog Analog speed setting 1
Analog speed setting 2
Analog speed setting 3
The speed setting is possible from either of three analog
inputs provided as standard in the VAT2000.
Serial speed setting The speed setting is allowed from a host computer, through
the programmer port or using the serial interface option
U2KV23SL0, or optional Profibus DP interface.
Serial or
parallel
Parallel speed setting The speed setting is allowed from a host PLC with parallel
transmission. A PC interface option type U2KV23PI0 is
required.
Speed setting The speed setting is allowed by parameter (A00-0 or 2).
Panel jogging setting The speed setting is allowed by parameter (A00-1, 3).
Traverse operation The speed setting is allowed by parameters (B44-0 to 6), when
the “Traverse” function is enabled.
Operation
panel
Pattern Run operation The speed setting is allowed by parameters (B50-0 to B59-3),
when the Pattern Run function is enabled
(2) Speed setting selection sequence
The ratio of the speed setting (Ratio Interlock) and sequence control for signals is shown below.
Refer to Section 6-5, B06 (Ratio interlock setting) for details.
Analog speed setting 1
(C07-0)
Serial communication
speed setting
Operation Panel frequency
(or speed) setting
(A00-0, 2)
Traverse frequency
(or speed) setting
(B44-0 to 6)
Program frequency
(or speed) setting
(B11-0 to 7)
Panel Jog setting
(A00-1, 3)
Patern Run frequency
(or speed) setting
(B50-0 to B59-3)
Analog speed setting 2
(C07-1)
Analog speed setting 3
(C07-2)
VFS
IFS
AUX
B40-0
PROG
CFS
JOG
B40-0
C30-0
RFO
LCL
Ratio Interlock
on=4
on
off
off=4
off
off
off
off
off
off=3
off=1,2
off
off
on
on
on
on
on
on=3
on=3,4,5
on
0
on
AX+B+C
Ratio Interlock
Functions that can be controlled ON / OFF
from terminal board
C02-0
Speed
settting
=1
=2
=3
=4
AX+B+C
XXX
Ratio Interlock
AX+B+C
Ratio Interlock
AX+B+C
Fig. 5-9 Speed setting selection
