GE VAT2000 User Manual

6. Control Functions and Parameter Settings
6-66
C21-2
Pick-up wait time
The wait time t
PW
is a safety delay to ensure that the pick-up operation is enabled a time
after the output is cut off, once the motor residual voltage is disappeared.
The residual voltage is a voltage generated by the motor after the inverter output turns OFF,
and will be abated in approx. 1 to 3 seconds, but will take longer if the motor capacity is
large.
C21-3
Pick-up current limit value
This is the current limit value exclusively used during pick-up. Normally, set 100%.
Adjust within the following range only when the output torque at restart must be limited.
C21-3 Setting value ≥ Applicable motor excitation current (%) +10%
(Normally 30 to 40%)

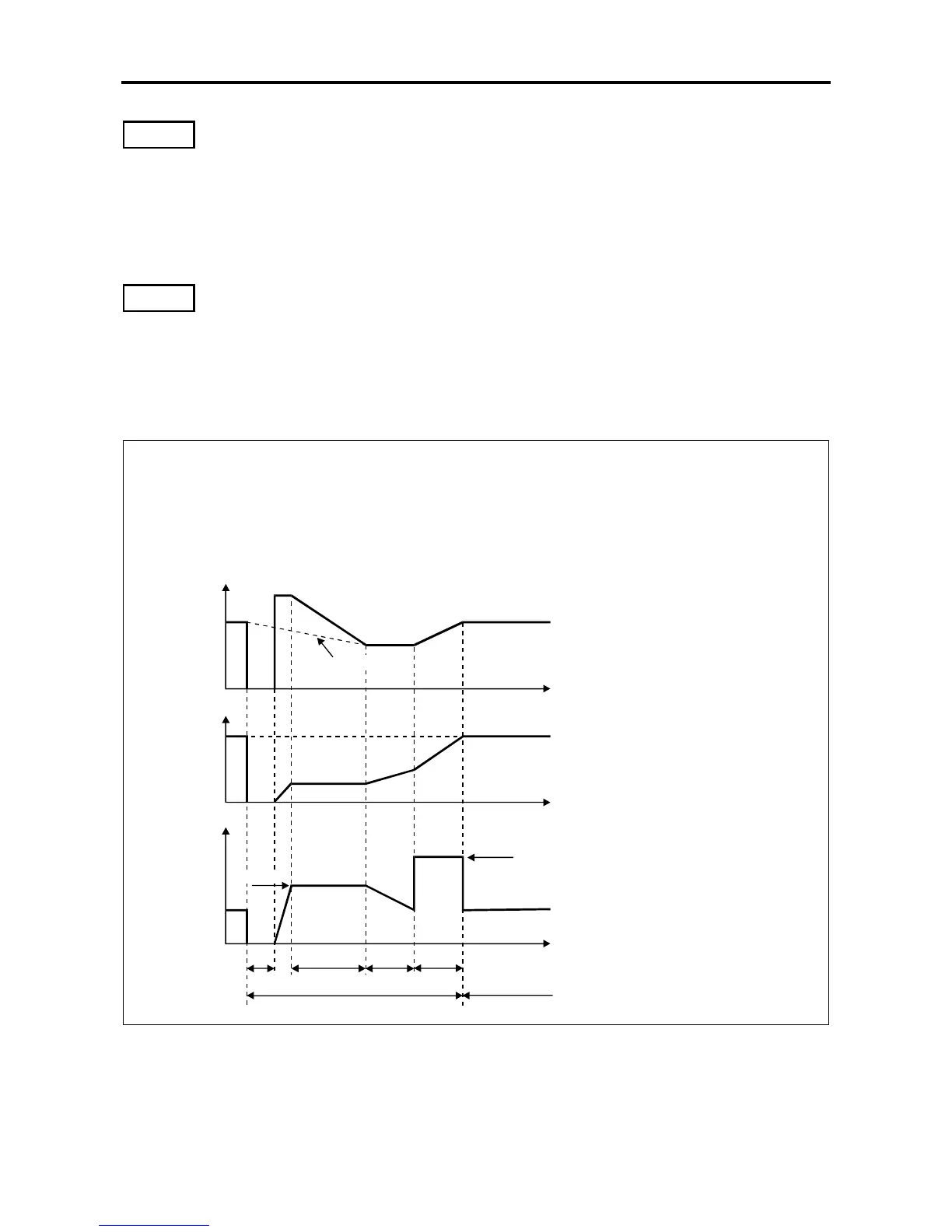

<Pick-up operation>
Pick-up starts when F.RUN or R.RUN is ON in the PICK ON state, or when the power is turned on while
auto start with pick-up is enabled (C08-0=3).
The pick-up operation is carried out with the overcurrent limit function as shown below.
Pick up Mode Normal Mode
Motor Current
Output Voltage
Output Frequency
Time
Setting frequency
Max frequency
Time
B18-0 (150%)
Time
150%
100%
(2) (3) (4)
Motor Speed
C21-3
(1)
(1) Pick-up waiting time
C21-2
(2) Pick-up current limit
(3) V/f match
(4) Re-acceleration after
V/f match
