LUBRICATION SYSTEM
5-6

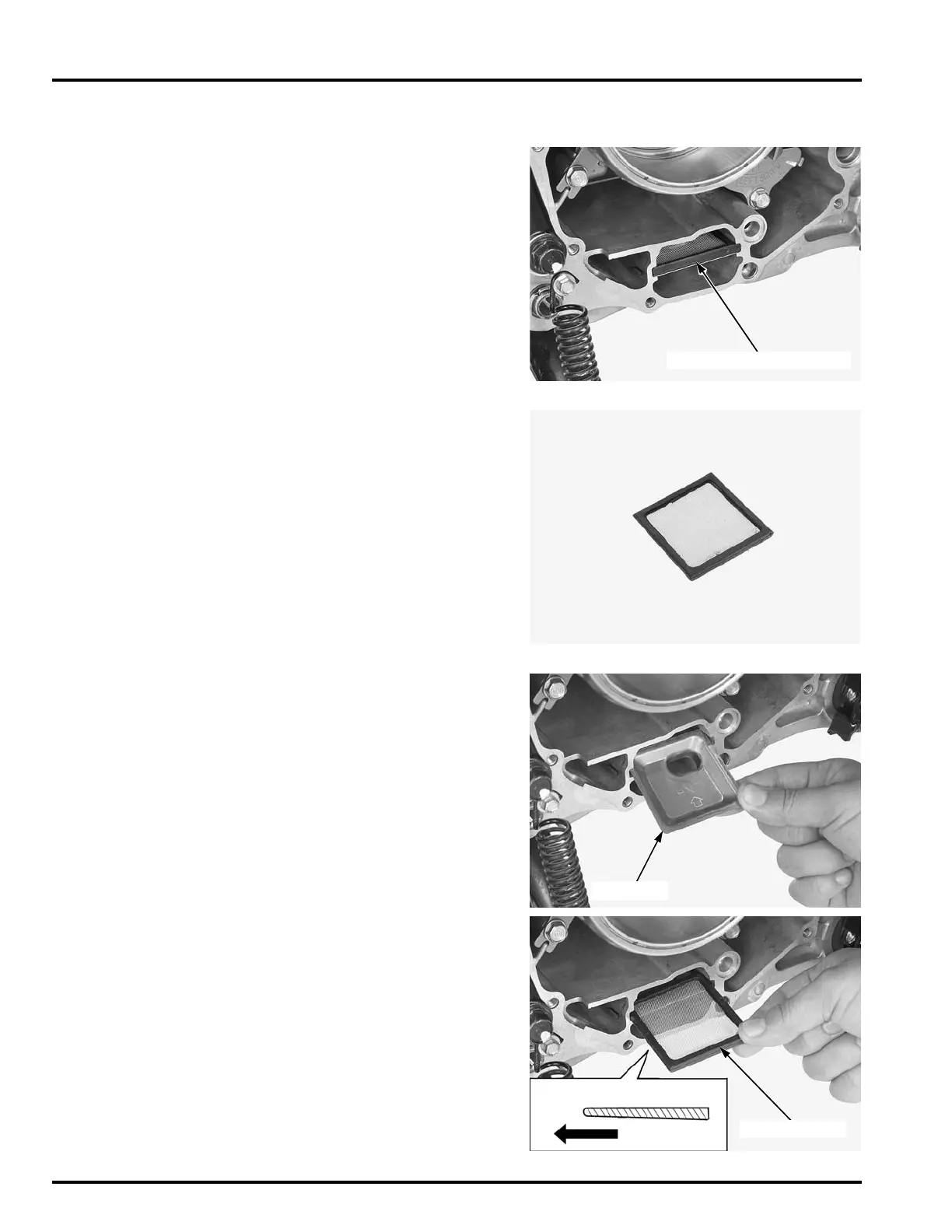

OIL STRAINER
REMOVAL
Drain the engine oil (page 4-11).
Remove the right crankcase cover (page 13-4).
Remove the oil strainer and screen mesh.
INSPECTION
Check the oil strainer screen mesh for damage or
clogs.
INSTALLATION
Install the oil strainer into the crankcase as shown.
Install the screen mesh into the crankcase as shown.
Install the right crankcase cover (page 13-5).
Fill the engine with the recommended oil (page 4-
10).
STRAINER/SCREEN MESH
STRAINER
SCREEN MESH

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
