Honda XR125L User Manual

Main Fuse:
The main fuse ( ) is located behind the left
side cover.
The specified fuse is:
Remove the left side cover (page ).
Disconnect the wire connector ( ) of the
starter magnetic switch ( ).
Pull out the fuse. If the main fuse is
blown, install a new fuse.
The spare main fuse ( ) is located upper
right of the starter magnetic switch.
Reconnect the wire connector and install
the left side cover.
1.
2.
3.
(3)
(2) (4)
1
(1)
4.
2
3
4
35

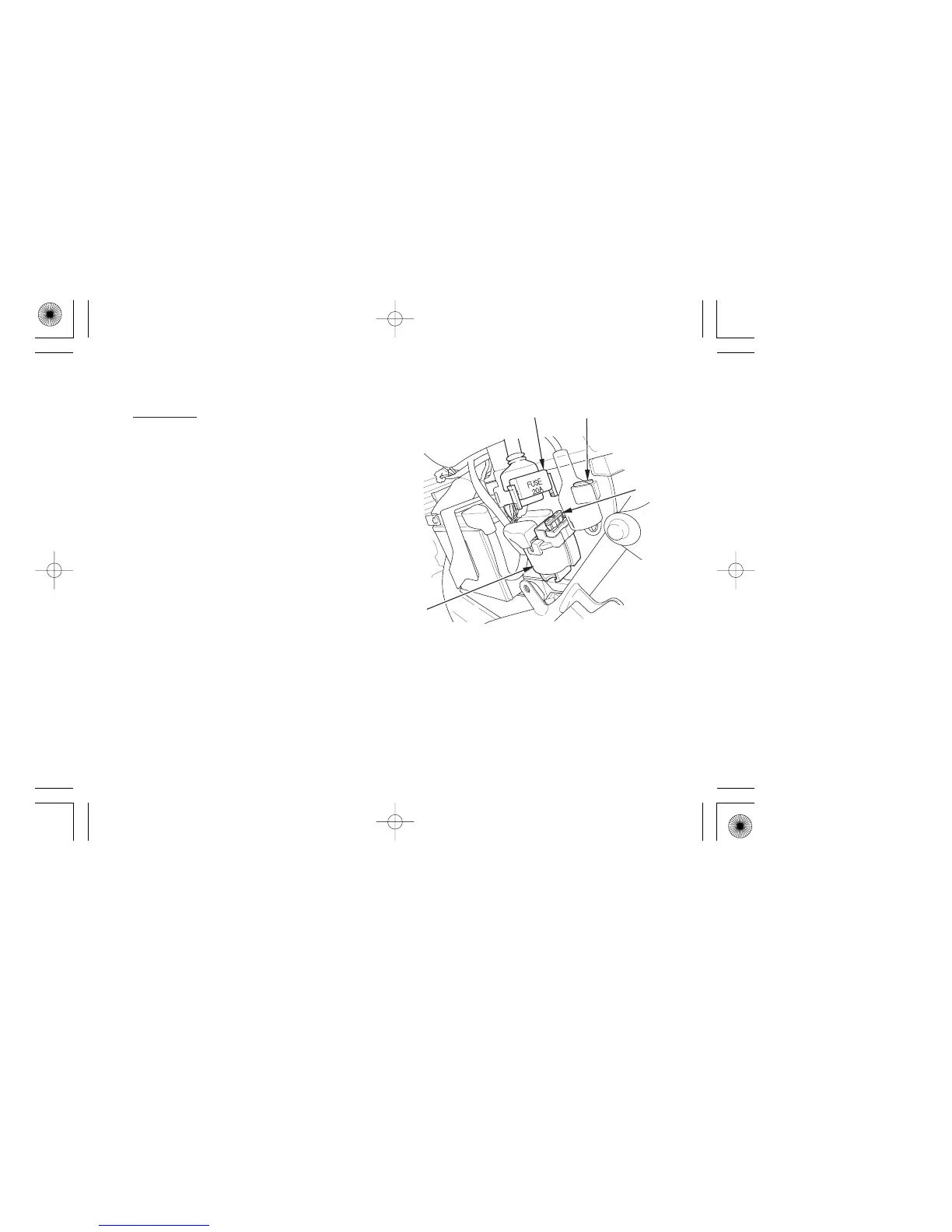

(1) Main fuse
(2) Wire connector
(3) Starter magnetic switch
(4) Spare main fuse
90
20 A
10/03/11 17:16:11 32KRHA00_100

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
