Honda XR125L User Manual

The fuel tank capacity including the reserve
supply is:

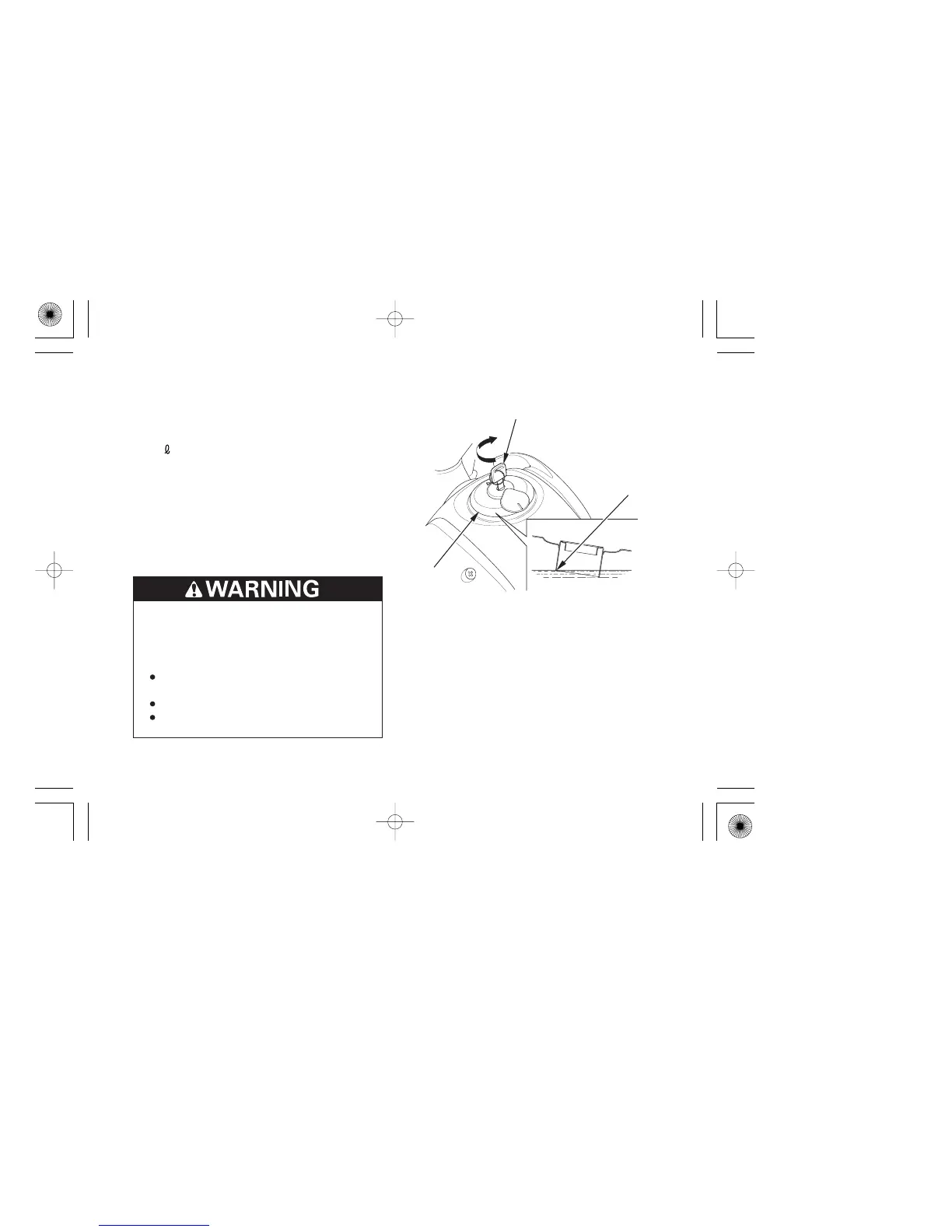

To open the fuel fill cap ( ), insert the
ignition key ( ) and turn it clockwise. The
fuel fill cap will pop up and can be lifted off.
After refueling, to close the fuel fill cap,
align the latch in the cap with the slot in the
filler neck ( ). Push the fuel fill cap into the
filler neck until it snaps closed and locks.
Remove the key.
(3)
(1)
(2)
1
2
3
(1) Fuel fill cap
(2) Ignition key
(3) Filler neck
Fuel Tank
21
12
(3.2 US gal , 2.6 Imp gal)
Petrol is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
Stop the engine and keep heat,
sparks, and flame away.
Refuel only outdoors.
Wipe up spills immediately.
10/03/11 17:08:32 32KRHA00_031

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
