Honda XR125L User Manual

The right side cover must be removed for
seat removal.
Theleftsidecovermustberemovedfor
seat removal, or to service the fuse or
battery maintenance.

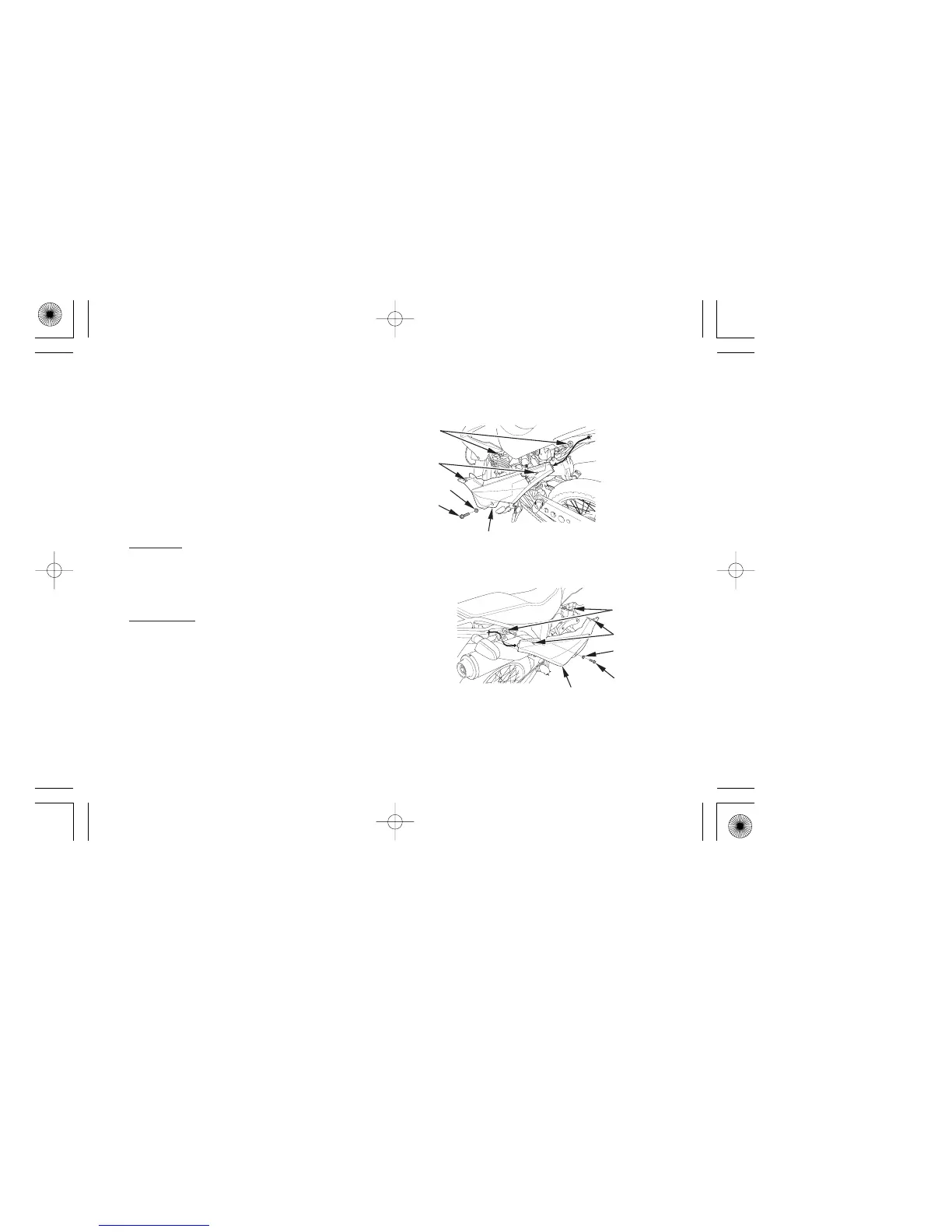

The right and left side covers can be
removed in the same manner.
Remove the bolt ( )and collar ( ).
Remove the side cover ( ), then remove
the prongs ( ) from the grommets ( ).
Align the prongs with the grommets.
Press the side cover into position.
Install the collar and tighten the bolt.
Removal:
Installation:
1.
2.
2.
1.
3.
12
(4)
3
45
(2)
(1)
(4)
(2)
(1)
(5)
(5)
(3)
(3)
(4) Prongs
(5) Grommets
(1) Bolt
(2) Collar
(3) Side cover
SIDE COVERS
RIGHT SIDE
LEFT SIDE
35
10/03/11 17:09:53 32KRHA00_045

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
