Honda XR125L User Manual

−−
Clutch adjustment may be required if the
motorcycle stalls when shifting into gear or
tends to creep; or if the clutch slips, causing
acceleration to lag behind engine speed.
Minor adjustments can be made with the
clutch cable adjuster ( ) at the clutch lever
().
Normal clutch lever freeplay is:
Pull back the rubber dust cover ( ).
Loosen the lock nut ( ) and turn the
clutch cable adjuster. Tighten the lock
nut and check the adjustment.
If the adjuster is threaded out near its
limit or if the correct freeplay cannot be
obtained, using the clutch cable adjuster,
loosenthelocknutandturnintheclutch
cable adjuster completely. Tighten the
lock nut and install the rubber dust cover.
1.
2.
3.
((BB))
((AA))
1
2
4
3
(2)
(3)
(1)
(4)

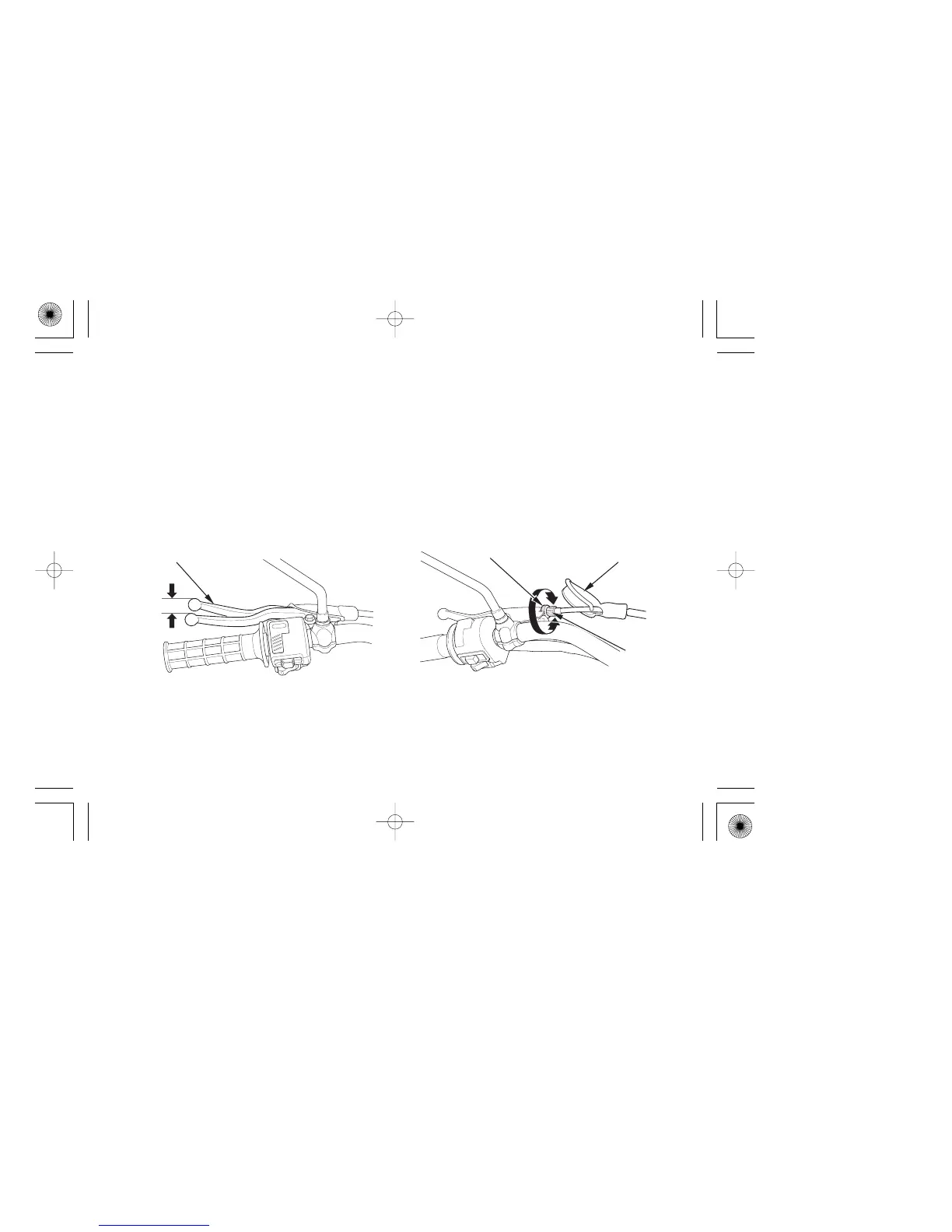

(2) Clutch lever (1) Clutch cable adjuster
(3) Rubber dust cover
(4) Lock nut
(A) Increase freeplay
(B) Decrease freeplay
CLUTCH
18
10 20 mm (0.4 0.8 in)
10/03/11 17:08:13 32KRHA00_028

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
