Honda XR125L User Manual

〈〉
Refer to the Safety Precautions on page .
Brake pad wear depends upon the severity
of usage, the type of riding, and road
conditions. (Generally, the pads will wear
faster on wet and dirty roads.)
Inspect the pads at each regular
maintenance interval (page ).

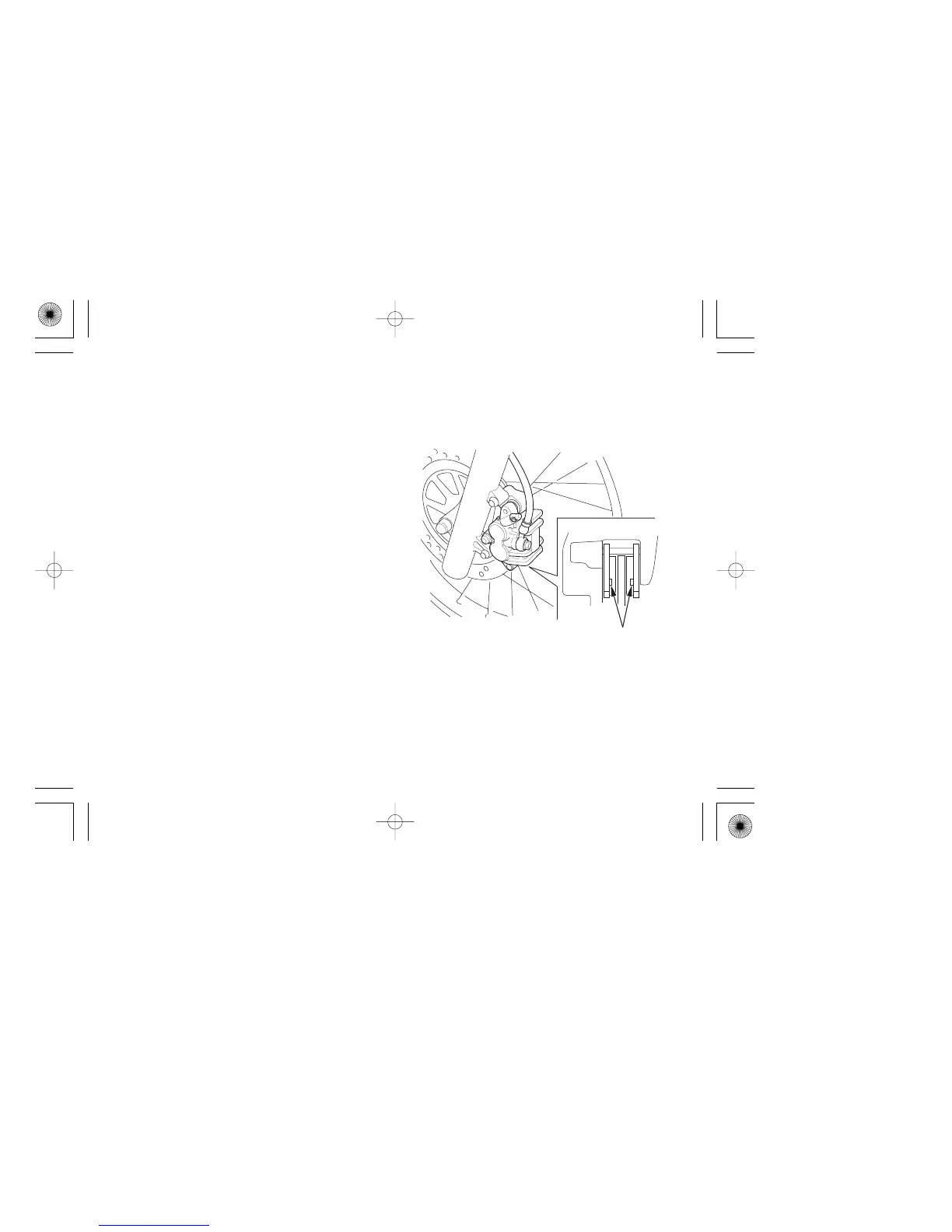

Check the cutout ( ) in each pad.
If either pad is worn to the cutout, replace
both pads as a set. See your Honda dealer
for this service.
FRONT BRAKE
(1)
53
56
1
(1) Cutouts
BRAKE PAD WEAR
Front Brake
84
10/03/11 17:15:31 32KRHA00_094

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
