Honda XR125L User Manual

With the fuel valve in the OFF position, fuel
cannot flow from the tank to the carburetor.
Turn the valve OFF whenever the
motorcycle is not in use.
With the fuel valve in the ON position, fuel
will flow from the main fuel supply to the
carburetor.
With the fuel valve in the RES position, fuel
will flow from the reserve fuel supply to the
carburetor. Use the reserve fuel only when
themainsupplyisgone.Refillthetankas
soon as possible after switching to RES.
The reserve fuel supply is:
Thethreewayfuelvalve( )isontheleft
side near the carburetor.
Remember to check that the fuel valve is in
the ON position each time you refuel. If the
valve is left in the RES position, you may
run out of fuel with no reserve.
(1)
1
(1) Fuel valve

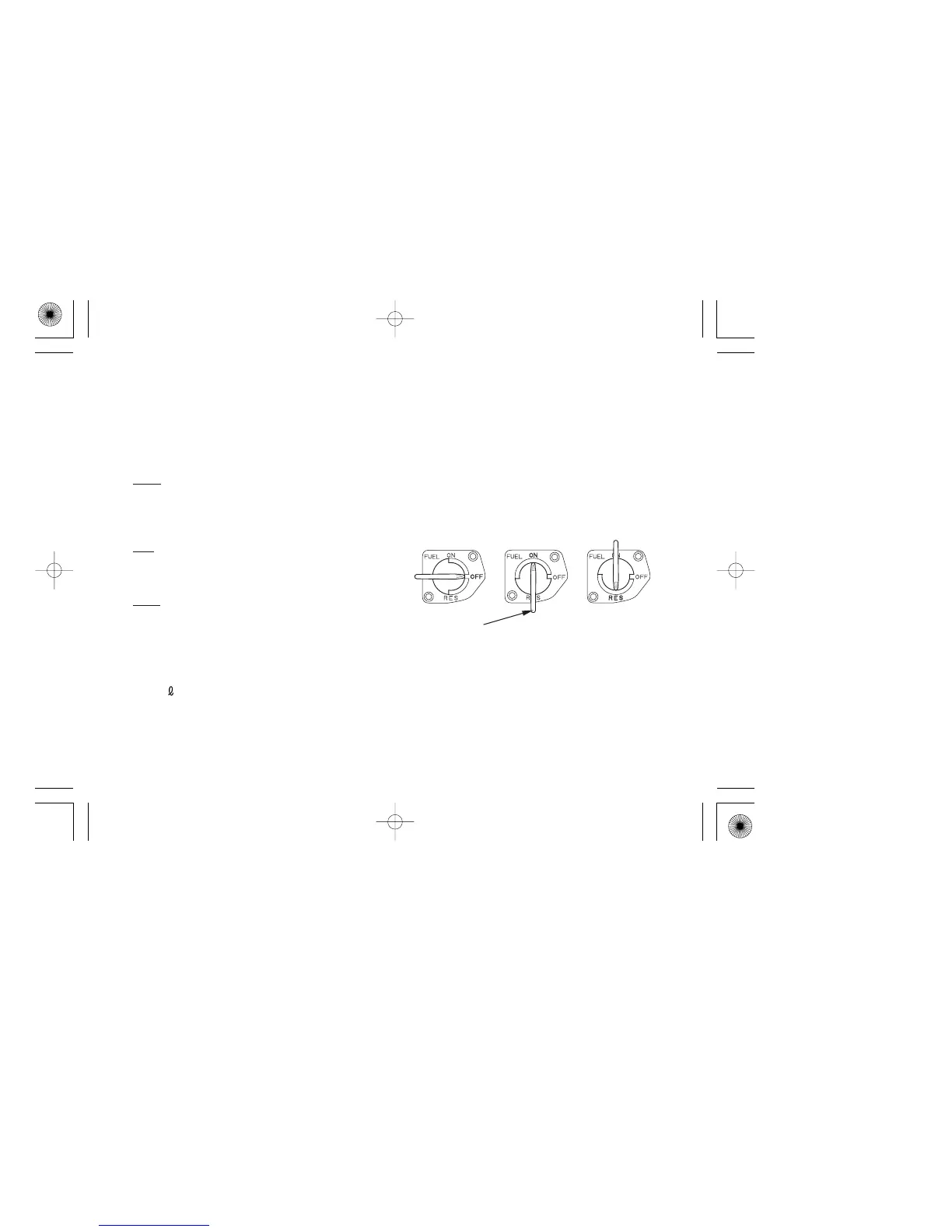

FUEL
Fuel Valve
OFF
ON
RES
RES
OFF ON
20
3.5
(0.92 US gal , 0.77 Imp gal)
10/03/11 17:08:26 32KRHA00_030

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
