Honda XR125L User Manual

Refer to the Safety Precautions on page .
Raise the front wheel off the ground by
placing a support block under the engine.
Remove the speedometer cable ( ) by
removing the screw ( ).
Remove the rubber cap ( ).
Do not depress the brake lever when the
wheel is off the motorcycle. The caliper
piston will be forced out of the cylinder with
subsequent loss of brake fluid. If this occurs,
servicing of the brake system will be
necessary. See your Honda dealer for this
service.
Remove the front axle nut ( ).
Remove the front axle shaft ( ) and the
wheel.
1.
2.
3.
4.
(1)
(3)
(2)
(4)
(5)
53
2
1
4
3
5

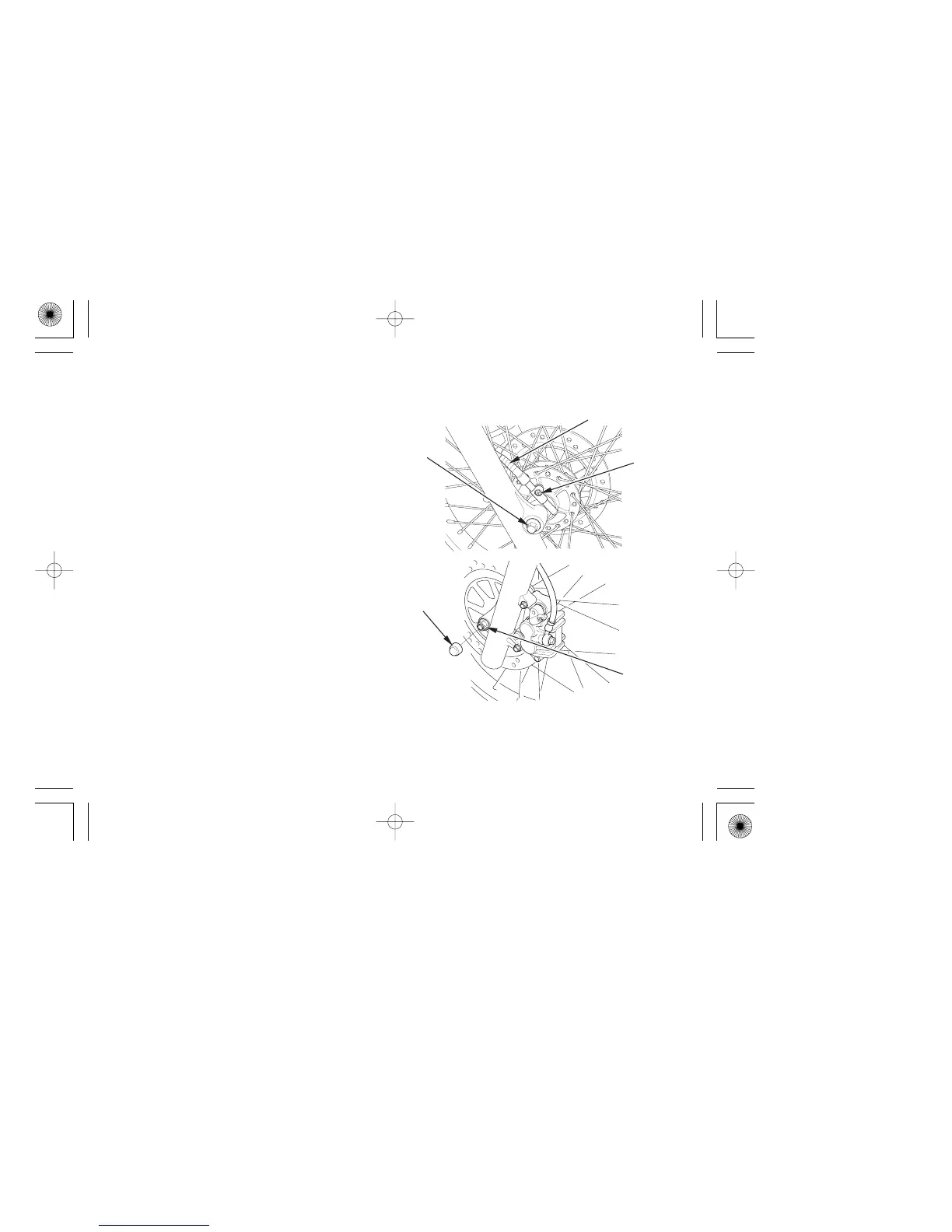

(1) Speedometer cable
(2) Screw
(3) Front axle shaft
(4) Rubber cap
(5) Front axle nut
WHEEL REMOVAL
Front Wheel Removal
80
10/03/11 17:15:02 32KRHA00_090

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
