Honda XR125L User Manual

Remove the A nuts ( ), washers and
license plate bracket ( ).
Remove the B nuts ( ), license light
cover ( ), license light lens ( ) and
socket ( ) from the license plate bracket.
Slightly press the bulb ( ) and turn it
counterclockwise.
Install a new bulb in the reverse order of
removal.
Install the removed parts in the reverse
order of removal.
Close the license plate bracket cover ( ).
3.
2.
1.
4.
5.
6.
(8)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
2
3
54
6
7
8
1

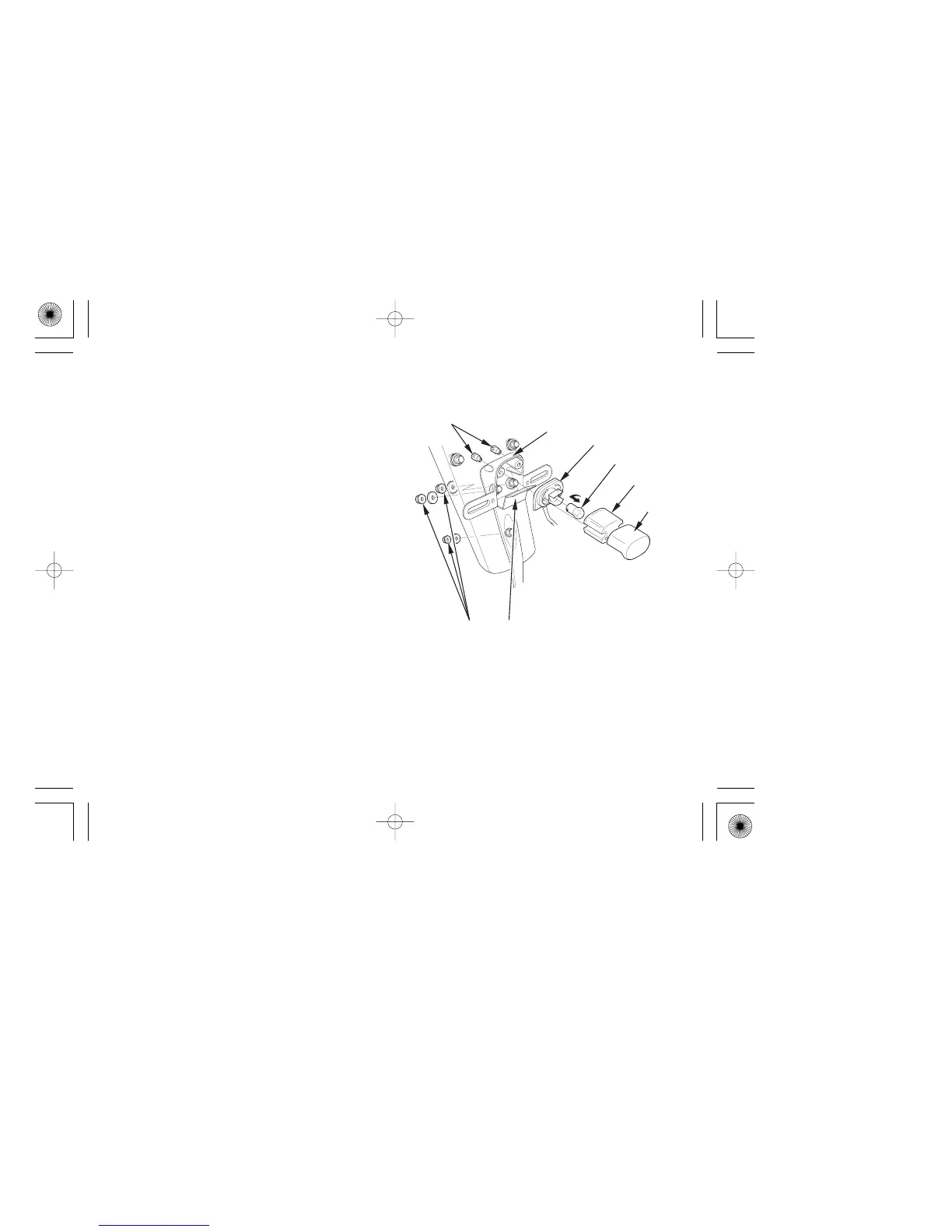

(1) A nuts
(2) License plate
bracket
(3) B nuts
(4) License light cover
(5) License light lens
(6) Socket
(7) Bulb
(8) License plate
bracket cover
License Light Bulb
97
10/03/11 17:16:57 32KRHA00_107

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
