Honda XR125L User Manual

Refer to the Safety Precautions on page .
The air cleaner should be serviced at
regular intervals (page ). Service more
frequently when riding in unusually wet or
dusty areas.

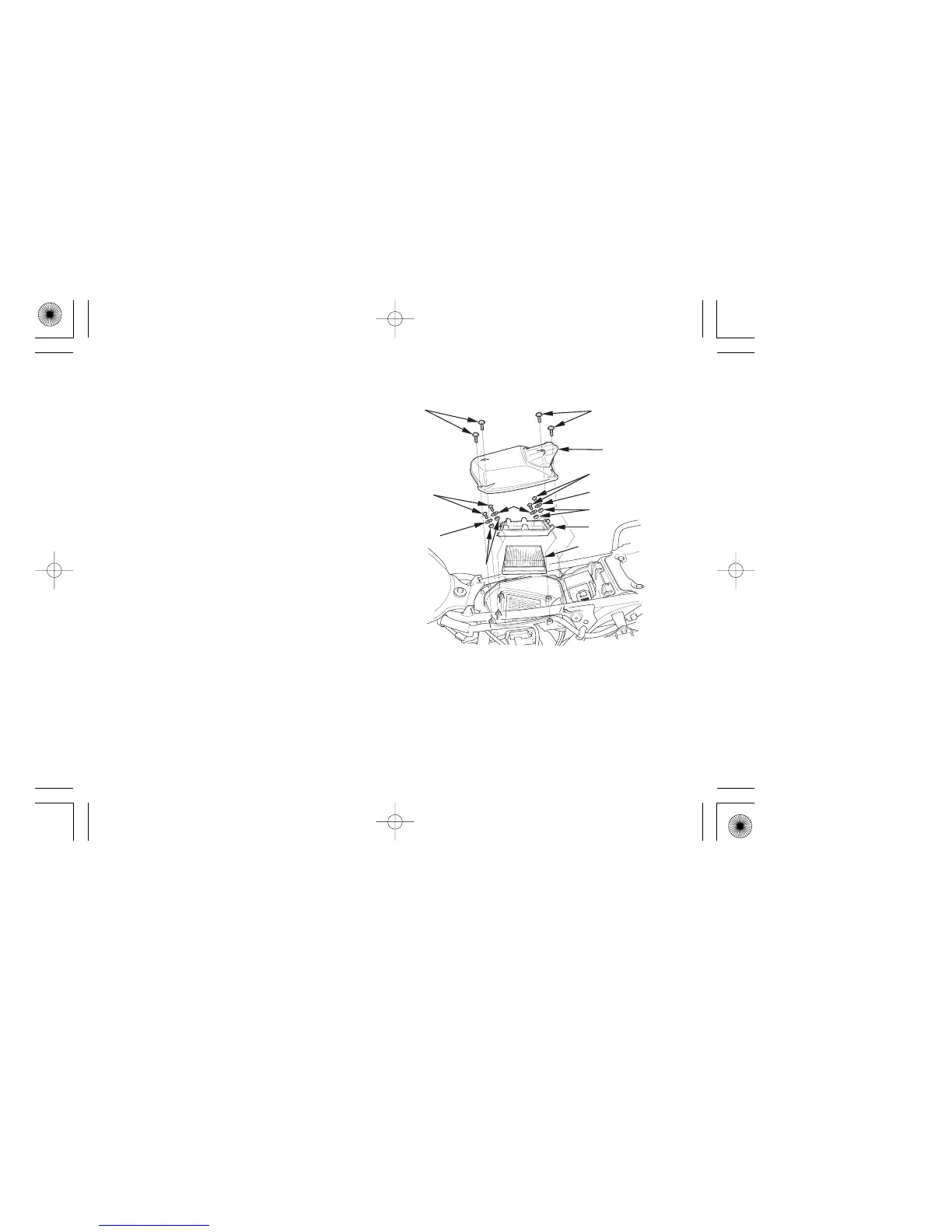

Remove the air cleaner housing cover ( )
by removing the screws A ( ).
Remove the seat (page ).
Remove the right and left side covers
(page ).
Remove the air cleaner element frame
( ) by removing the screws B ( ),
washers ( ) and collars ( ).
Remove the air cleaner element ( ).
2.
1.
(2)
3.
4.
5.
(2)
(4)
(5)
(3)
(5)
(4)
(7)
1
2
7
3
56
4
53
55
35
36
(5)
(6)
(1)
(6)
(5) Washers
(6) Collars
(7) Air cleaner
element
(1) Air cleaner housing
cover
(2) Screws A
(3)Aircleanerelement
frame
(4) Screws B
AIR CLEANER
60
10/03/11 17:12:40 32KRHA00_070

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
