Honda XR125L User Manual

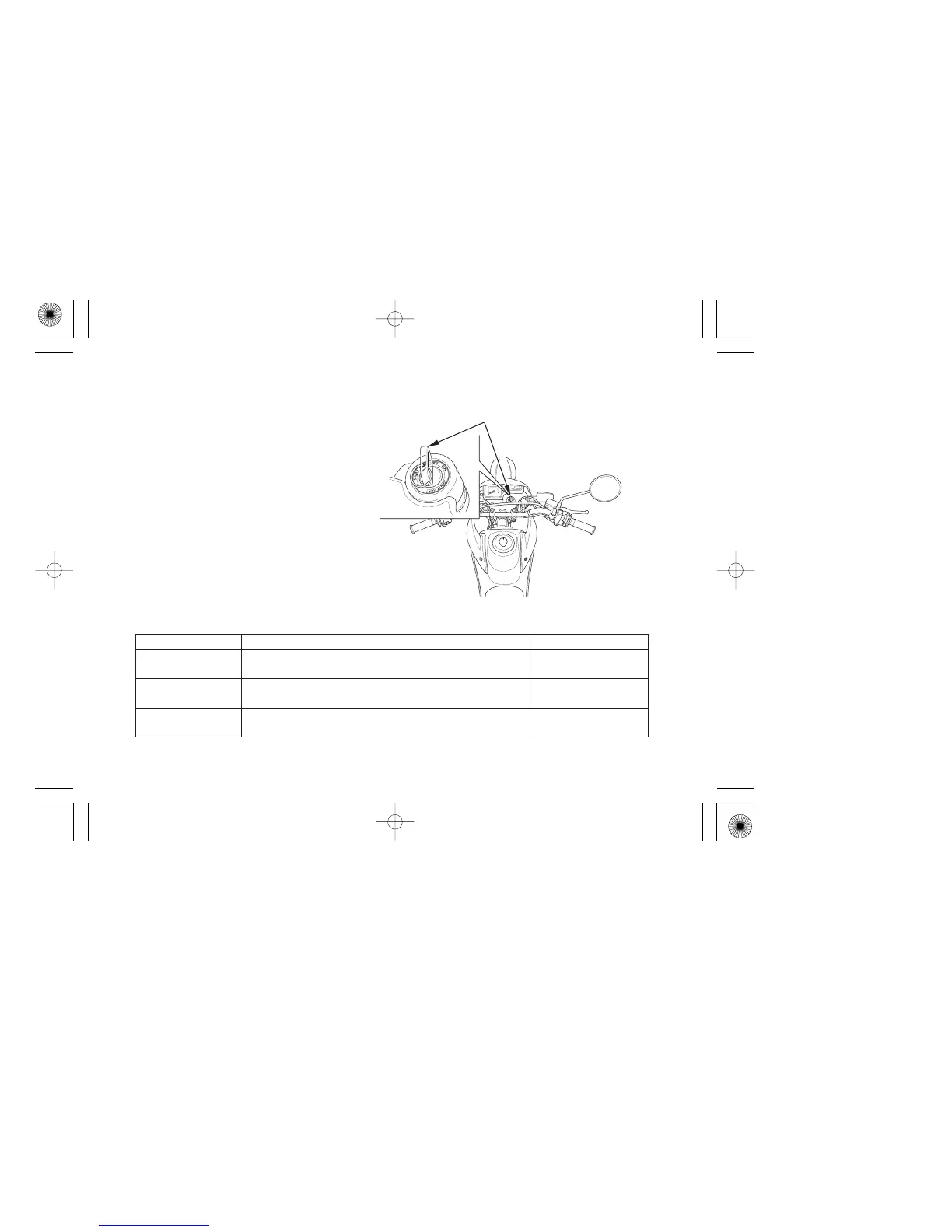

The ignition switch ( ) is below the
indicator panel.
LOCK
(Steering lock)
OFF
ON
Steering is locked. Engine and lights cannot be
operated.
Engine and lights cannot be operated.
Engine and lights can be operated.
Key can be
removed
Key can be
removed
Key cannot be
removed
The headlight and taillight will come on
whenever you turn the ignition switch
ON. If your motorcycle is stopped with
the ignition switch ON and the engine is
not running, the headlight and taillight
will still be on, resulting in battery
discharge.
(1)
1
(1) Ignition switch
ESSENTIAL INDIVIDUAL COMPONENTS
IGNITION SWITCH
Key Position Function Key Removal
30
10/03/11 17:09:18 32KRHA00_040

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
