Honda XR125L User Manual

Refer to the Safety Precautions on page .
The light bulb becomes very hot while the
light is ON, and remains hot for a while
afteritisturnedOFF.Besuretoletitcool
down before servicing.
Do not use bulbs other than those
specified.
Remove the two bolts ( ) and remove the
headlight case ( ).
After installing a new bulb, check that the
light operates properly.
Remove the headlight aim vertical screw
().
1.53
2.
(1)
(3)
(2)
1
2
3

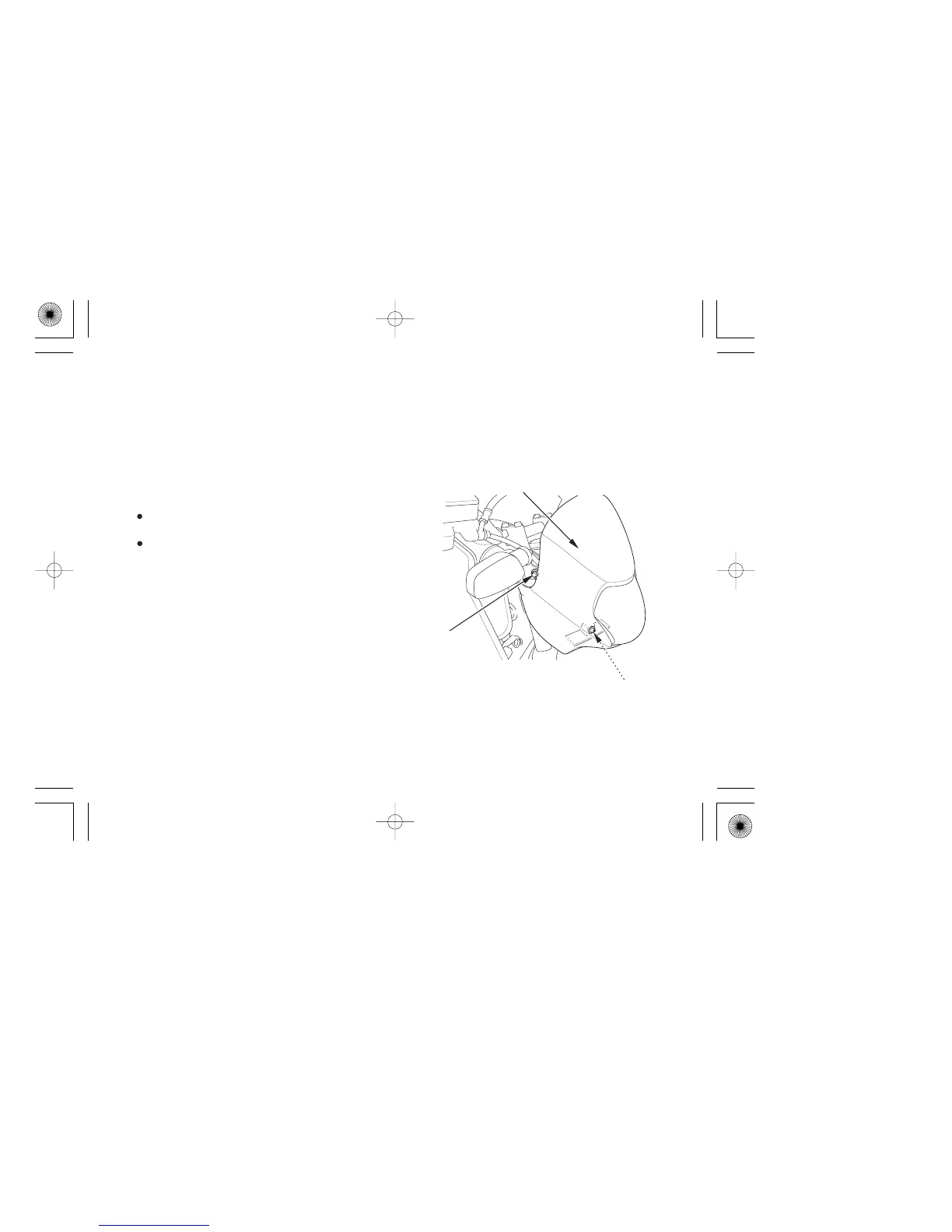

(1) Headlight aim vertical screw
(2) Bolt
(3) Headlight case
BULB REPLACEMENT Headlight Bulb
92
10/03/11 17:16:25 32KRHA00_102

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
