Honda XR125L User Manual

Refer to the Safety Precautions on page .
Raise the rear wheel off the ground by
placing a support block under the engine.
Remove the rear brake adjusting nut ( ).
Press and release the rear brake pedal
and disconnect the brake rod ( ) from
the brake arm ( ).
Remove the rear axle nut ( ) and loosen
the lock nuts ( ) and drive chain
adjusting nuts ( ).
1.
2.
3.
4.
(3)
(2)
(1)
(4)
(6)
(5)
(9)
(5)
(6)
(7)
(8)
53
1
2
3
4
5
6

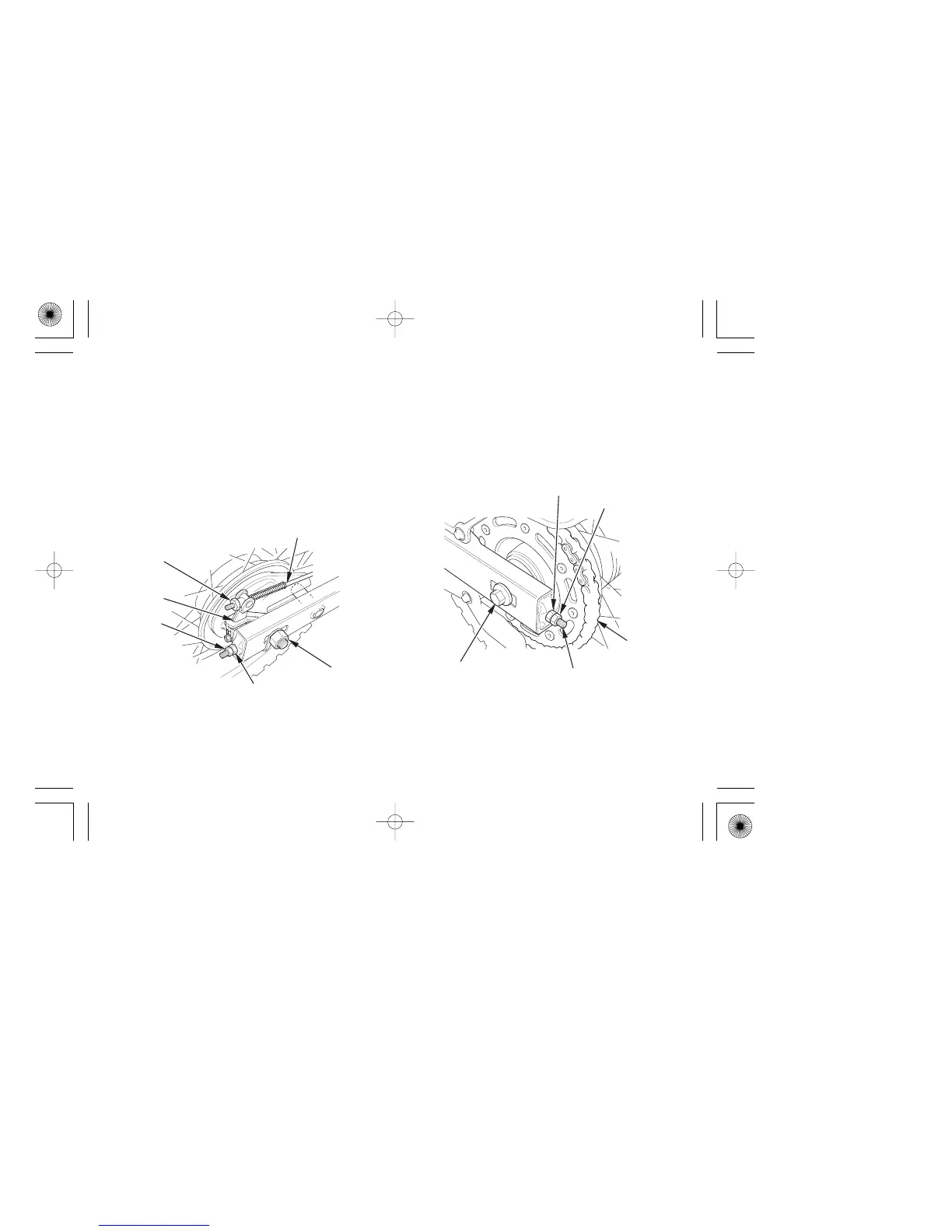

(1) Adjusting nut
(2) Brake rod
(3) Brake arm
(4) Rear axle nut
(5) Lock nuts
(6) Adjusting nuts
(7) Rear axle shaft
(8) Drive chain adjusters
(9) Drive chain
Rear Wheel Removal
82
10/03/11 17:15:18 32KRHA00_092

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
