Honda XR125L User Manual

×
×

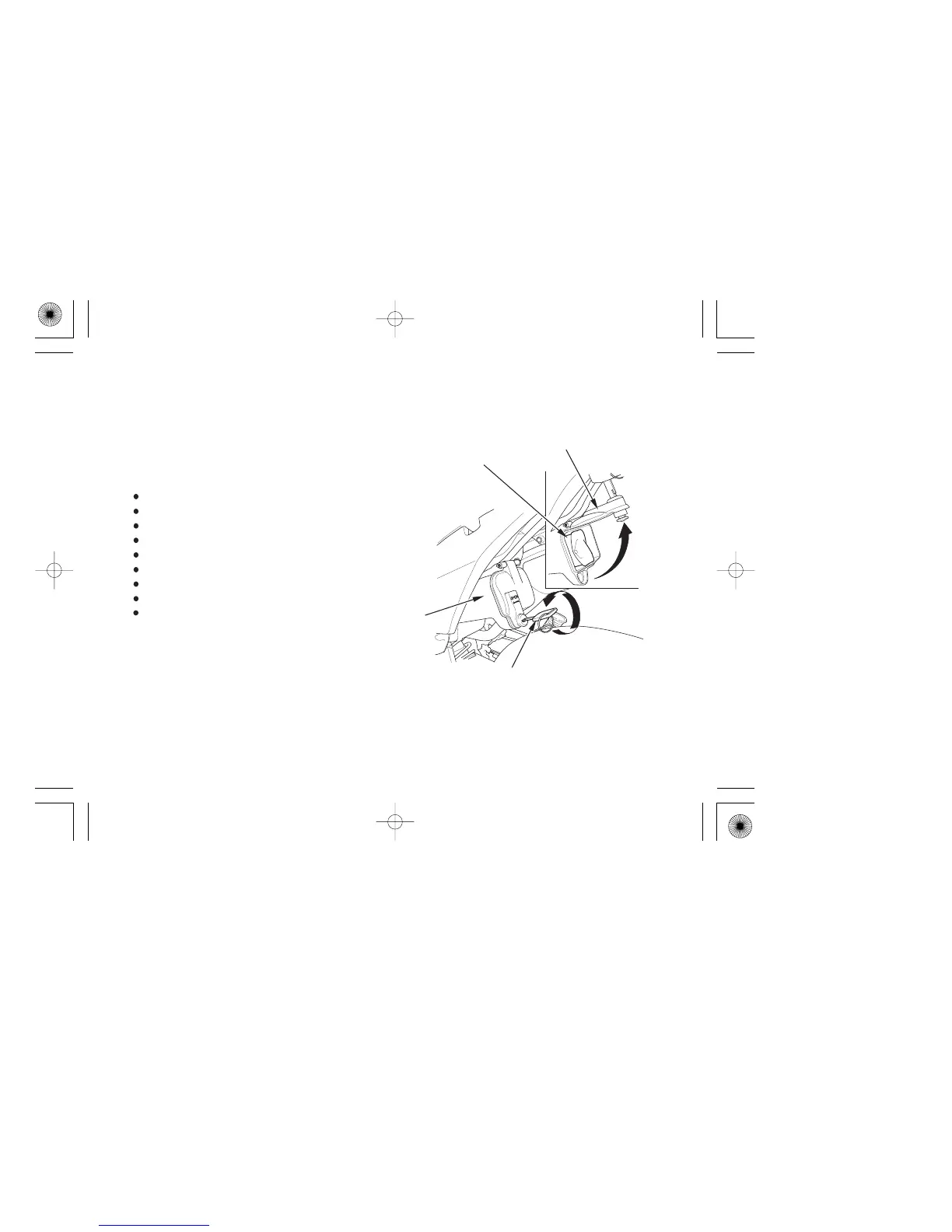

The tool kit ( ) is in the tool box ( )
behind the left side cover.
To open the tool box lid ( ) insert the
ignition key ( ) into the tool box lid. Turn it
counterclockwise,thenopenthetoolboxlid.
10 12 mm Open end wrench
14 17 mm Open end wrench
No.1 screwdriver
No.3 screwdriver
Screwdriver grip
Sparkplugwrench
Extension bar
24 mm Box end wrench
Tool bag
(2)
(3)
(1)
(4)
12
3
4
(1) Tool kit
(2) Tool box
(3) Tool box lid
(4) Ignition key
TOOL KIT
57
10/03/11 17:12:18 32KRHA00_067

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
