Honda XR125L User Manual

−−

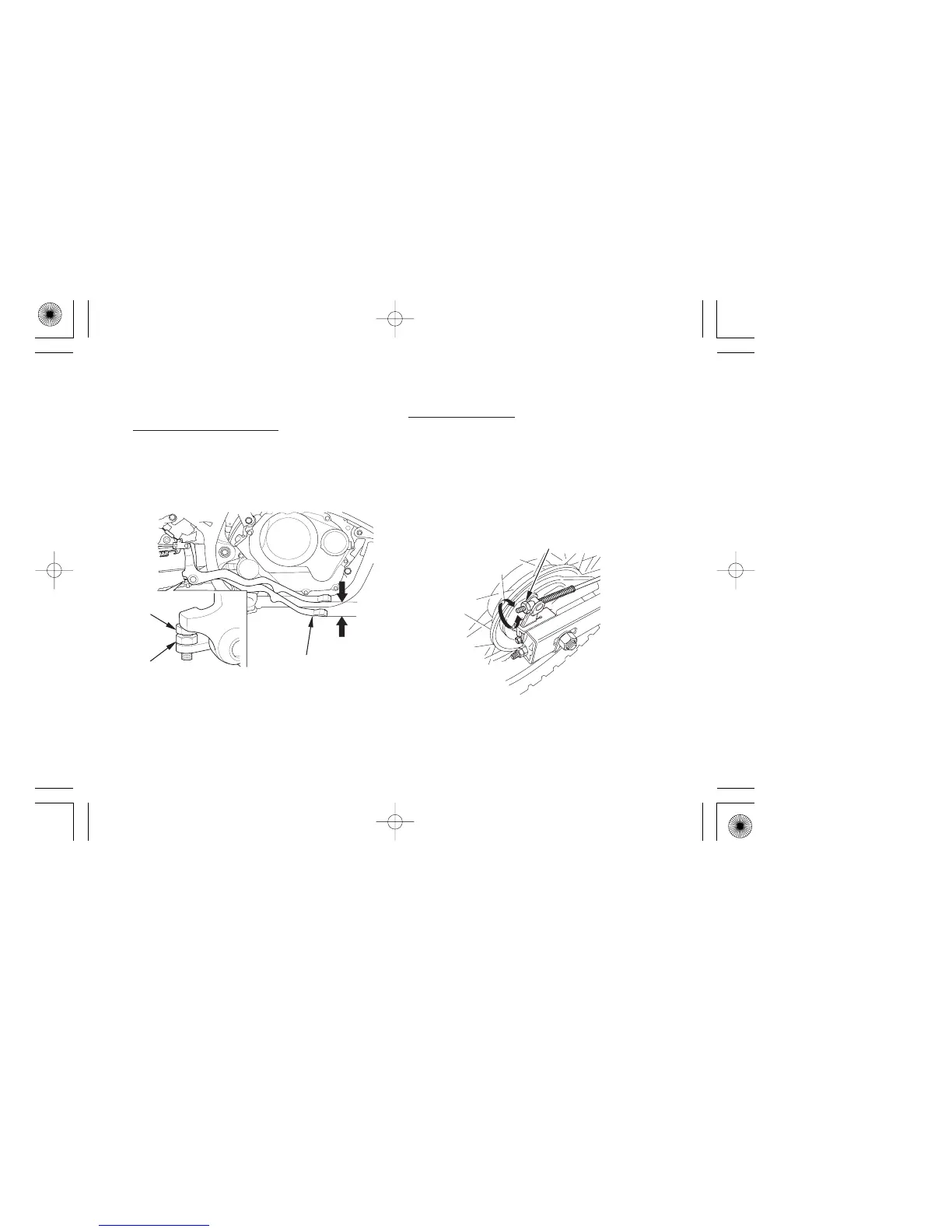

Measure the distance the rear brake
pedal ( ) moves before the brake starts
to take hold.
Freeplay should be:
Pedal Height Adjustment:
The stopper bolt ( ) is provided to allow
adjustment of the pedal height. To adjust
the pedal height, loosen the lock nut ( )
and turn the stopper bolt. Tighten the lock
nut.
Brake Adjustment:
Place the motorcycle on its side stand.
If adjustment is necessary, turn the rear
brake adjusting nut ( ).
1.
(2)
(1)
2.
((AA))
((BB))
1
4
(4)
3
2
3.
(3)
(A) Decrease freeplay
(B) Increase freeplay
(4) Rear brake
adjusting nut
(1) Stopper bolt
(2) Lock nut
(3) Rear brake pedal
Rear Brake
16
15 25 mm (0.6 1.0 in)
10/03/11 17:08:00 32KRHA00_026

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
