Honda XR125L User Manual

The engine stop switch ( ) is next to the
throttle grip. When the switch is in the
(RUN) position, the engine will operate.
When the switch is in the (OFF)
position, the engine will not operate. This
switch is intended primarily as a safety or
emergency switch and should normally
remain in the (RUN) position.
The start button ( ) is below the engine
stop switch.
When the start button is pressed, the
starter motor cranks the engine. If the
engine stop switch is in the (OFF)
position, the starter motor will not operate.
See page for the starting procedure.
(1)
(2)
2
1
42

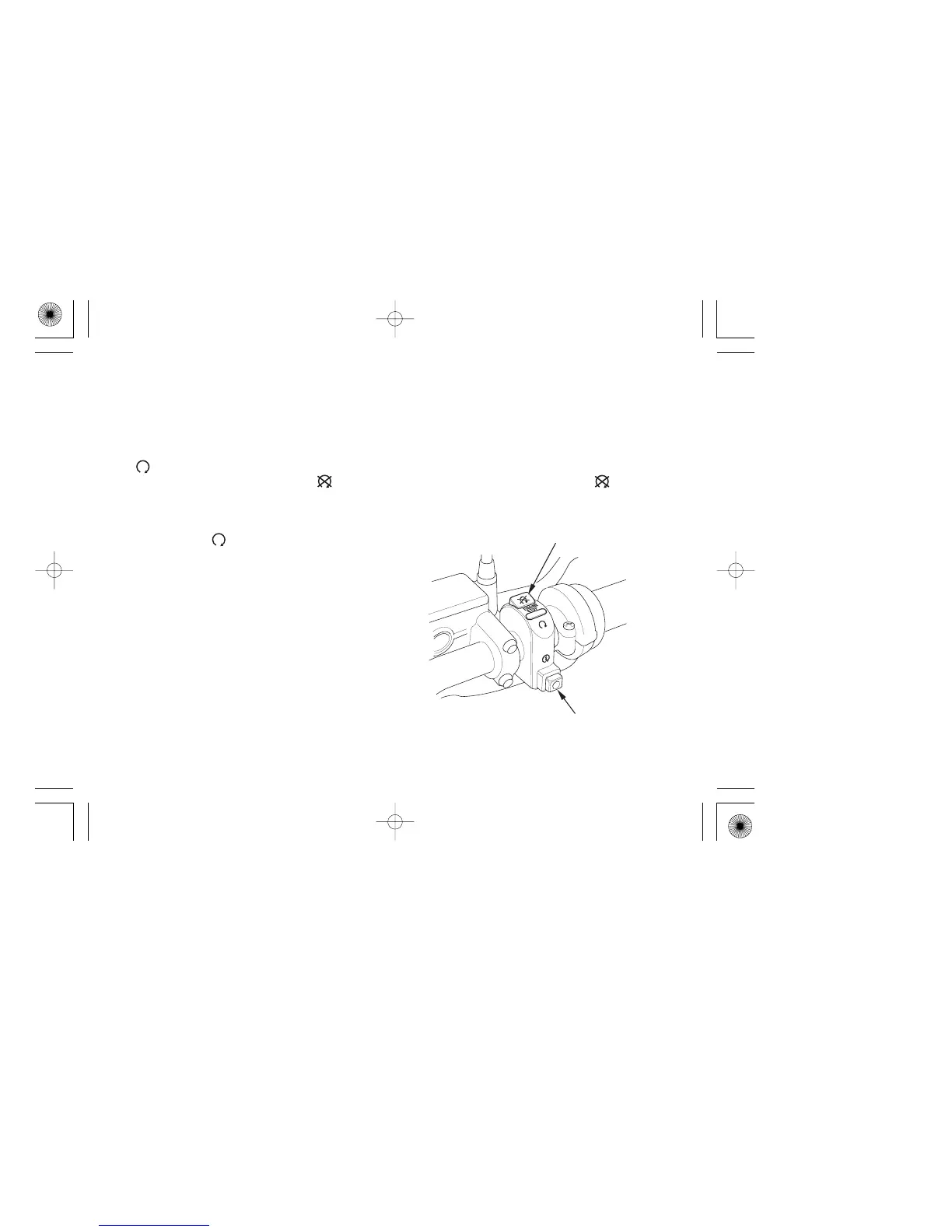

(1) Engine stop switch
(2) Start button
RIGHT HANDLEBAR CONTROLS
Engine Stop Switch
Start Button
31
10/03/11 17:09:24 32KRHA00_041

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
