Honda XR125L User Manual

〈〉
Refer to the Safety Precautions on page .
The rear brake is equipped with a brake
wear indicator.
When the brake is applied, an arrow ( )
attached to the brake arm ( ) moves
toward a reference mark ( ) on the brake
panel ( ). If the arrow aligns with the
referencemarkonfullapplicationofthe
brake, the brake shoes must be replaced.
See your Honda dealer for this service.
When the brake service is necessary, see
your Honda dealer. Use only Honda
Genuine Parts or its equivalent.
(2)
(3)
(1)
(4)
REAR BRAKE
53
1
2
3
4

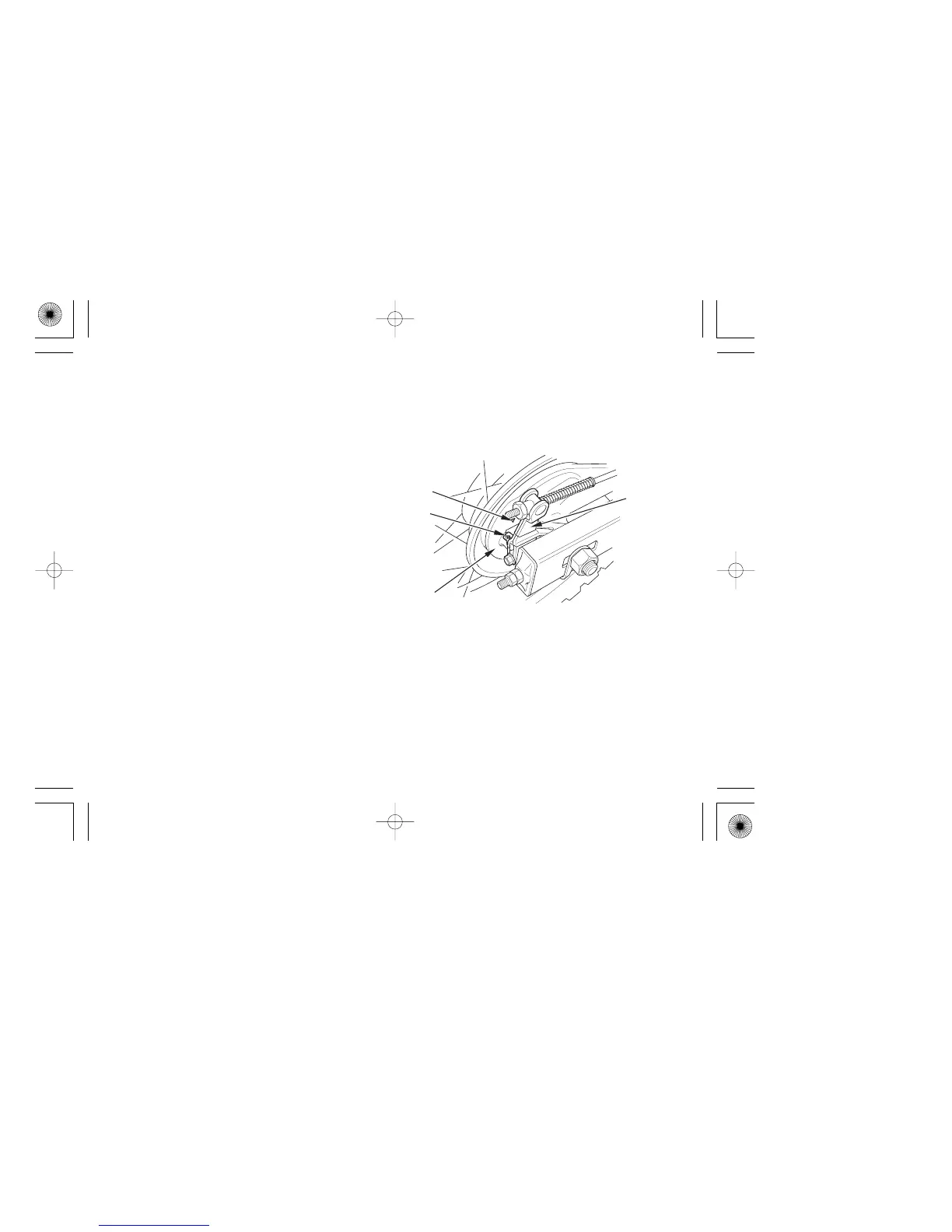

(1) Arrow
(2) Brake arm
(3) Reference mark
(4) Brake panel
BRAKESHOEWEAR
85
10/03/11 17:15:38 32KRHA00_095

Honda XR125L Specifications

General

Compression Ratio	9.2:1
Transmission	5-speed
Fuel System	Carburetor
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	90/90-19
Rear Tire	110/90-17
Ignition	CDI
Final Drive	Chain
Engine Type	Air-cooled 4-stroke single-cylinder OHC
Bore x Stroke	56.5 mm x 49.5 mm
Rear Suspension	Swingarm with single shock
Fuel Capacity	12 L
Max. Torque	10.4 Nm @ 6, 500 rpm
