FC Ping dialog box

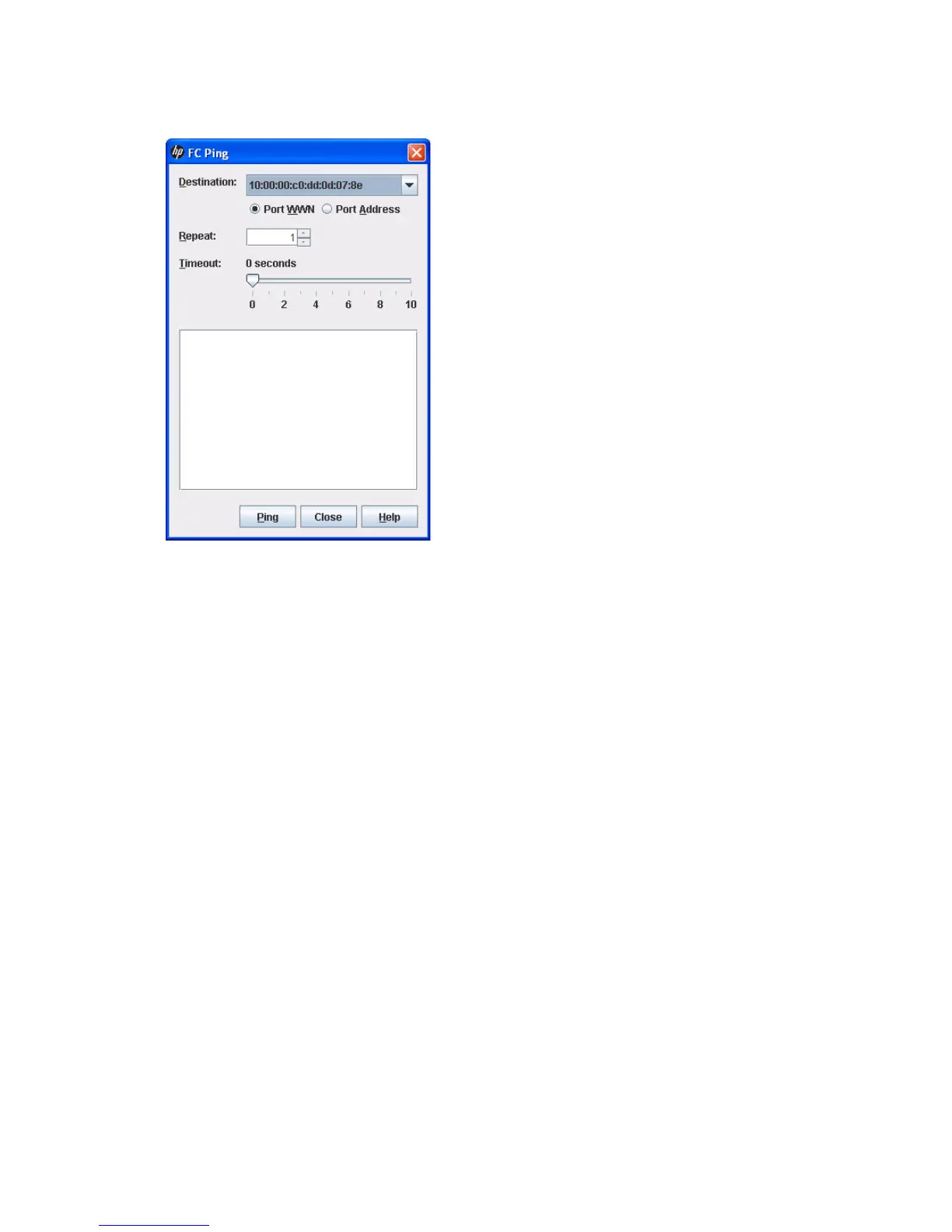

The FC Ping dialog box (Figure 17) enables you to send an ECHO frame to a specified target and verify
that the frame was returned.
Figure 17 FC Ping dialog box
To verify a Fibre Channel connection:
1. Select Switch > FC Ping to open the FC Ping dialog box.
2. Open the Destination drop-down list, and select a destination port.
3. Select the Port WWN or Port Address option.
4. In the Repeat area, use the arrow keys to select or type in a value (1–100) for the number of FC ping
attempts to perform.
5. In the Timeout area, select the number of seconds (0–10) to continue attempting the FC ping operation
before timing out. Click and drag the slide bar to move the slide bar.
6. Click Ping, and view the results in the text window.
