84 Managing Switches
Switch data window
The Switch data window (Figure 46) displays the current network and switch information for the selected
switch. To open the Switch data window, click the Switch tab below the data window.

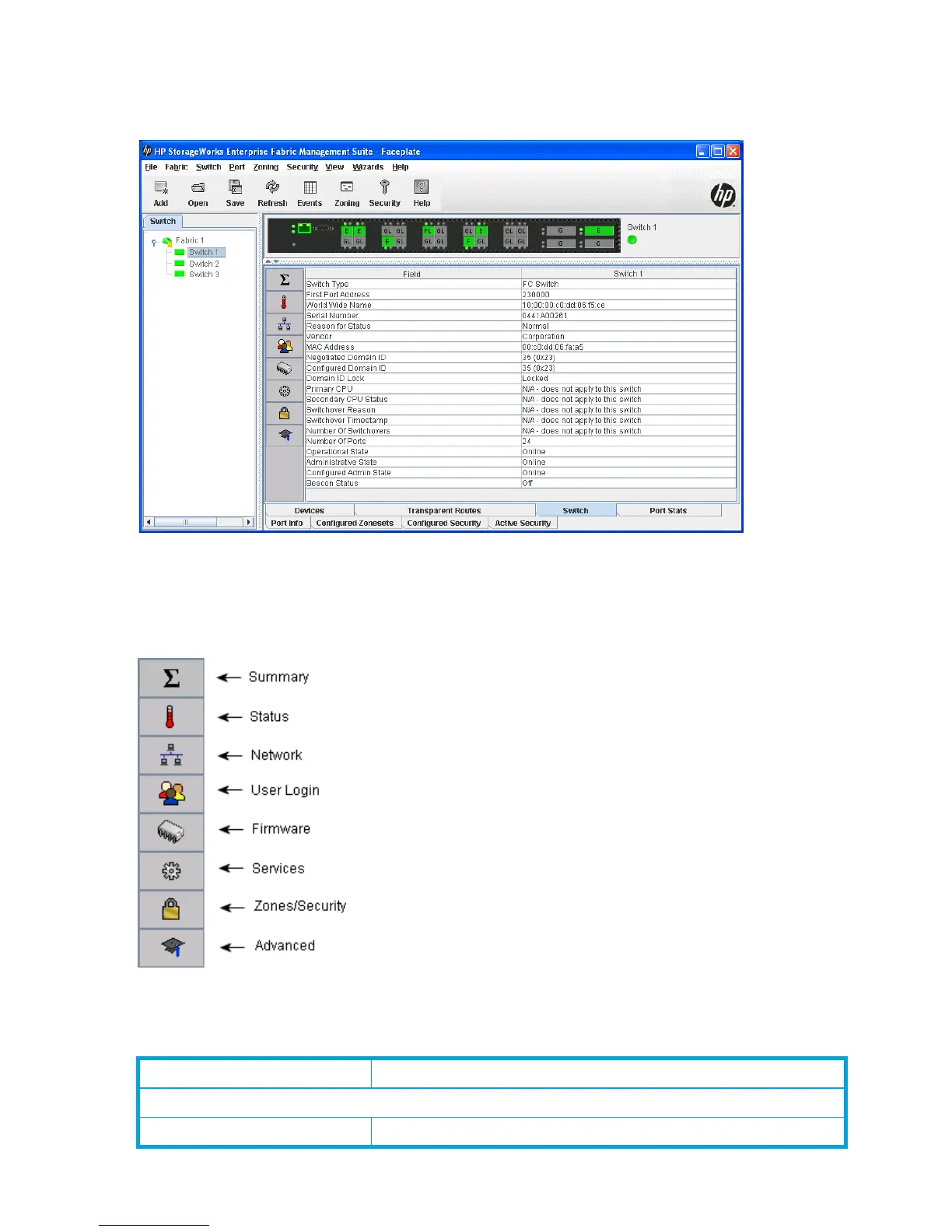

Figure 46 Switch data window
Information in the Switch data window is grouped and accessed by the Summary, Status, Network, User
Login, Firmware, Services, Zones/Security, and Advanced buttons. Click a button to display the switch
information for the selected data category (Figure 46). The Switch data window buttons are identified in
Figure 47.
Figure 47 Switch data window buttons
The Switch data window fields are described in Table 11.
Table 11 Switch data window fields
Field Description
Summary Group
Switch Type Switch model
