44 Managing Fabrics
Transparent Routes data window
The Transparent Routes data window displays the currently configured inter-fabric zones/routes using a
TR_Port.

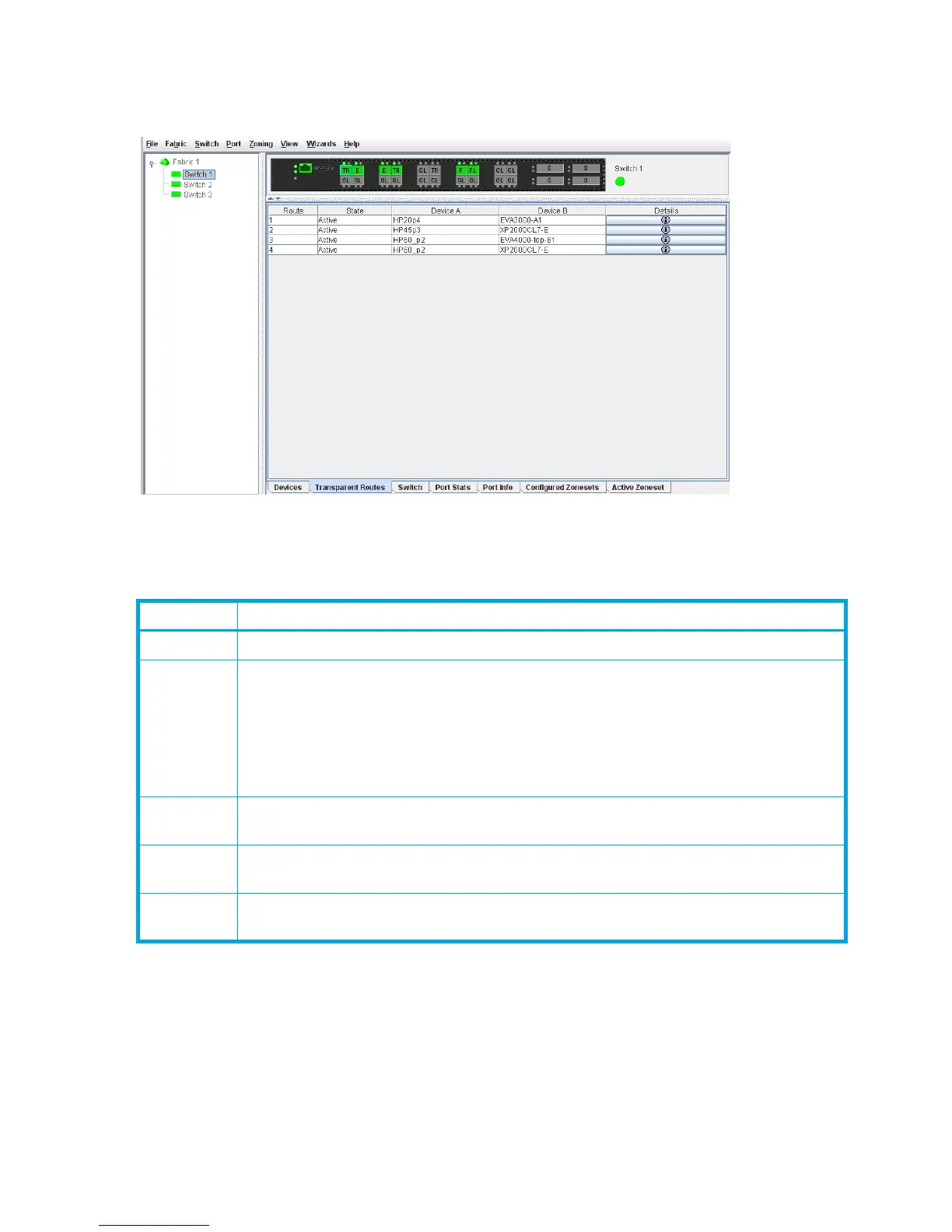

Figure 21 Transparent Routes data window
The Transparent Routes data window fields are described in Table 8.
Table 8 Transparent Routes data window fields
Field Description
Route Route number reference for each listing in the Transparent Routes data window table
State The current TR mapping state (Active or Inactive)
• Active—Indicates that the mapped TR port is on this switch, and both devices have
logged in.
• Inactive—Indicates that the mapped TR port is on this switch, and the mapping is not
active. The reasons are shown in the details display as the three Status column entries
(one for the overall mapping and one for each device in the mapping).
Device A The WWN of one of the two devices linked by the TR mapping. Assigned nicknames are
also displayed.
Device B The WWN of the other device linked by the TR mapping. Assigned nicknames are also
displayed.
Details Click (i) in the Details column to open the Transparent Route dialog box, which displays
detailed information on the transparent route.
