52 Managing Fabric Zoning
The Configured Zonesets data window uses display conventions for expanding and contracting entries that
are similar to those used by the fabric tree. An entry handle located to the left of an entry in the tree
indicates that the entry can be expanded. Click this handle or double-click the following entries to expand
or collapse them:
• A zone set expands to show its member zones.
• A zone expands to show its members by device port World Wide Name or device port Fibre Channel
address.
• The alias expands to show its entries.

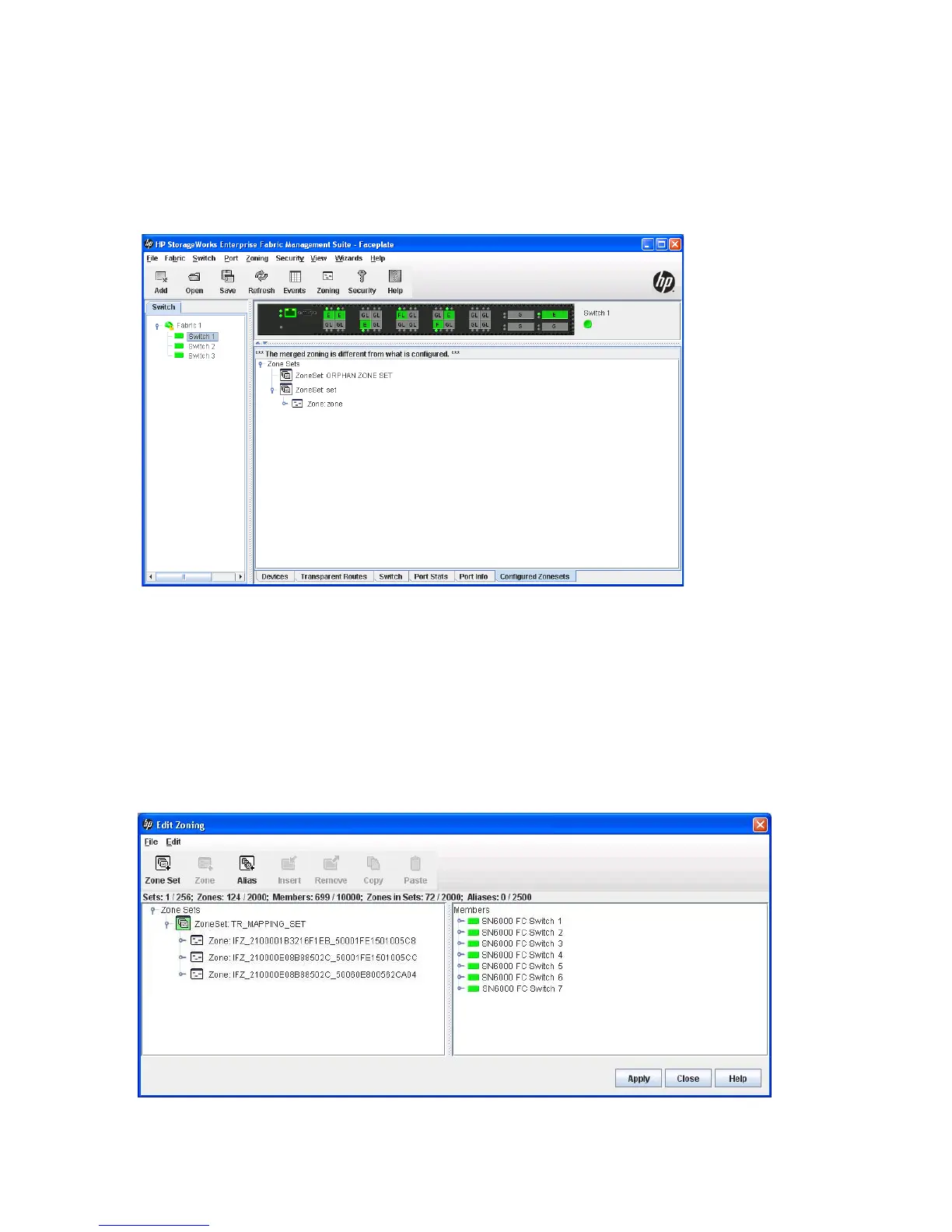

Figure 27 Configured Zoneset data window
Editing the zoning database
Use the Edit Zoning dialog box (Figure 28) to edit the zoning database of a particular switch. To open the
Edit Zoning dialog box:
1. Select a switch or a stack in the fabric tree.
2. Select Zoning > Edit Zoning.
3. If you selected a stack and the zoning database is not identical on all switches in the stack, choose a
switch from the Select Source Switch list. Changes that you make to this switch are distributed to the
other switches in the stack.
Figure 28 Edit Zoning dialog box
