HP StorageWorks 8/20q and SN6000 Fibre Channel Switch Enterprise Fabric Management Suite User Guide 47
Removing an inter-fabric route
NOTE: The Merge Auto Save option in the Config Zoning dialog box must be selected before you can
open the TR Mapping Manager dialog box. For more information, see ”Merge Auto Save” (page 54).
To remove an inter-fabric route:
1. Select Fabric > TR Mapping Manager to open the TR Mapping Manager dialog box (Figure 23).
2. Select a TR mapping member from the TR Mapping list, and then click Remove or select Edit > Remove.
A warning dialog box prompts you to confirm the removal of the selected mapping members.
3. Click OK to confirm the removal of the selected TR mapping member.
Creating a zoning commands text file
A zoning commands text file contains the commands needed to configure zoning on the remote fabric and
allow the inter-fabric connection over the TR_Port. You can choose the type of remote switch fabric to
generate the proper commands, either for B-series or C-series switches.
TIP: Before modifying zoning, HP recommends that you back up the configuration.
To create a zoning commands text file for the remote fabric:
1. Select Fabric > TR Mapping Manager to open the TR Mapping Manager dialog box (Figure 23).
2. Create a new TR mapping for a inter-fabric zone, if one does not exist. For more information, see
”Adding an inter-fabric route” (page 46).
3. Select an entry from the TR Mapping List window.
4. Select File > Generate Remote Zoning to open the Remote Fabric Zoning dialog box (Figure 25). If you
make and save changes in the TR Mapping Manager dialog box, you can choose the type of zoning
commands to view in the Suggested Remote Fabric Zoning Commands window of the Remote Fabric
Zoning dialog box.

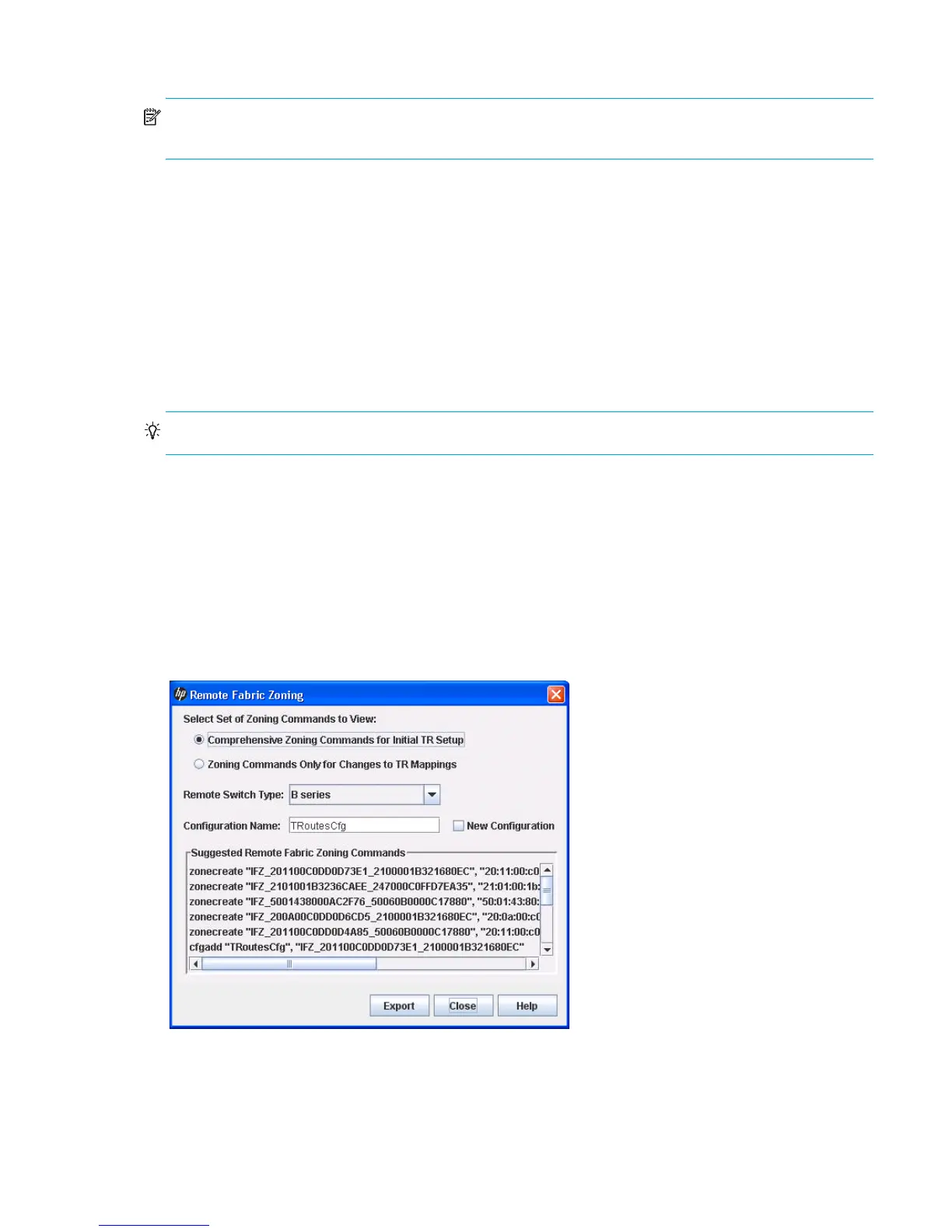

Figure 25 Remote Fabric Zoning dialog box
