Stack Links data window
The Stack Links data window displays information about all switch links for a stack of switches in the
faceplate display. This information includes the switch names, the port number at the end of each link, and
the link status icon. To open the Stack Links data window, click a stack icon in the fabric tree, and click the
Stack Links tab below the data window in the stack faceplate display.

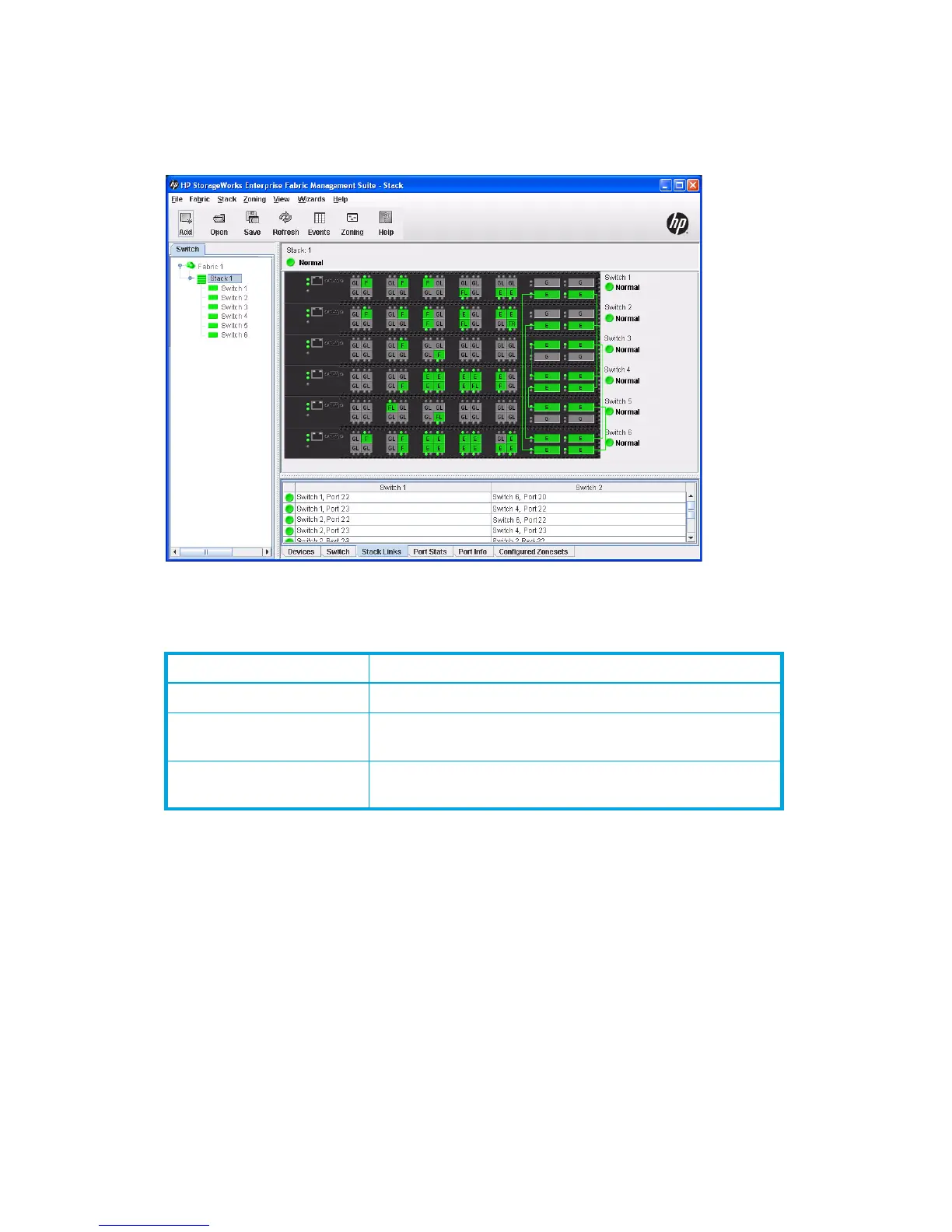

Figure 48 Stack Links data window
The Stack Links data window fields are described in Table 12.
Table 12 Stack Links data window
Field Description
Status Icon depicting current link status
Switch 1 The first switch discovered in the fabric, and the port to
which the ISL is connected
Switch 2 The second switch discovered in the fabric, and the port to
which the ISL is connected
