Hypertherm XPR300 User Manual

Parts List
9
XPR300 Instruction Manual 809480 383

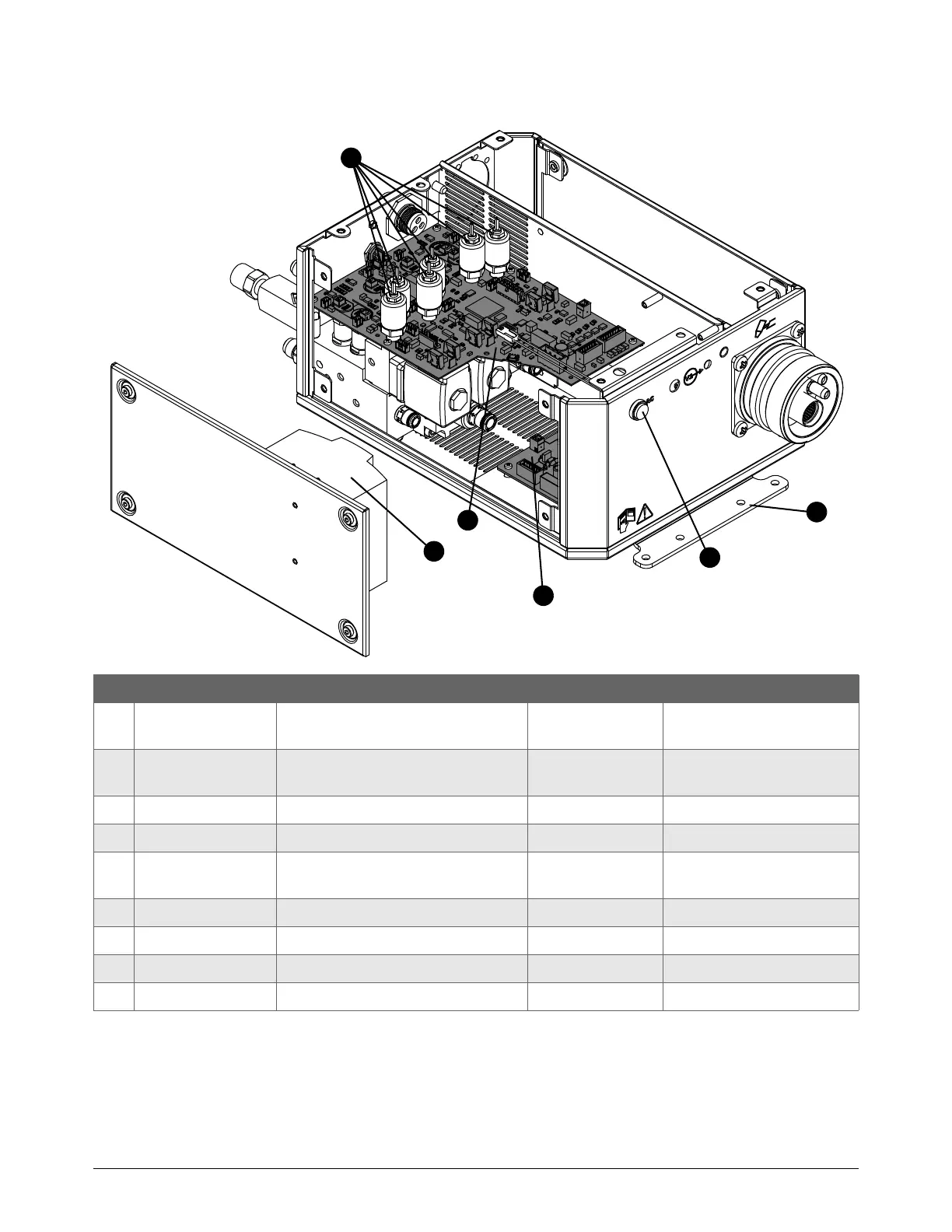

Torch connect console manifold side – view 1
Part number Description Designator Quantity
1 223477
Pressure transducer with wire and
connector
P1 – P5, P14 6
2 229640
Power source: 88 VAC – 264 VAC
to 24 VDC
PS1 1
3 141334 Control PCB PCB1 1
4 141368 Ohmic contact PCB PCB2 1
5 229825
Green power-indicator LED
assembly
–1
6 101366 Bracket – 2 (1 shown)
229780 Valve cable 40 mm (1.6 inches) – 8
229800 Valve cable 279.4 mm (11 inches) – 1
229655 Wire harness – 1
3
2
1
4
5
6
