Hypertherm XPR300 User Manual

Installation
3
XPR300 Instruction Manual 809480 89

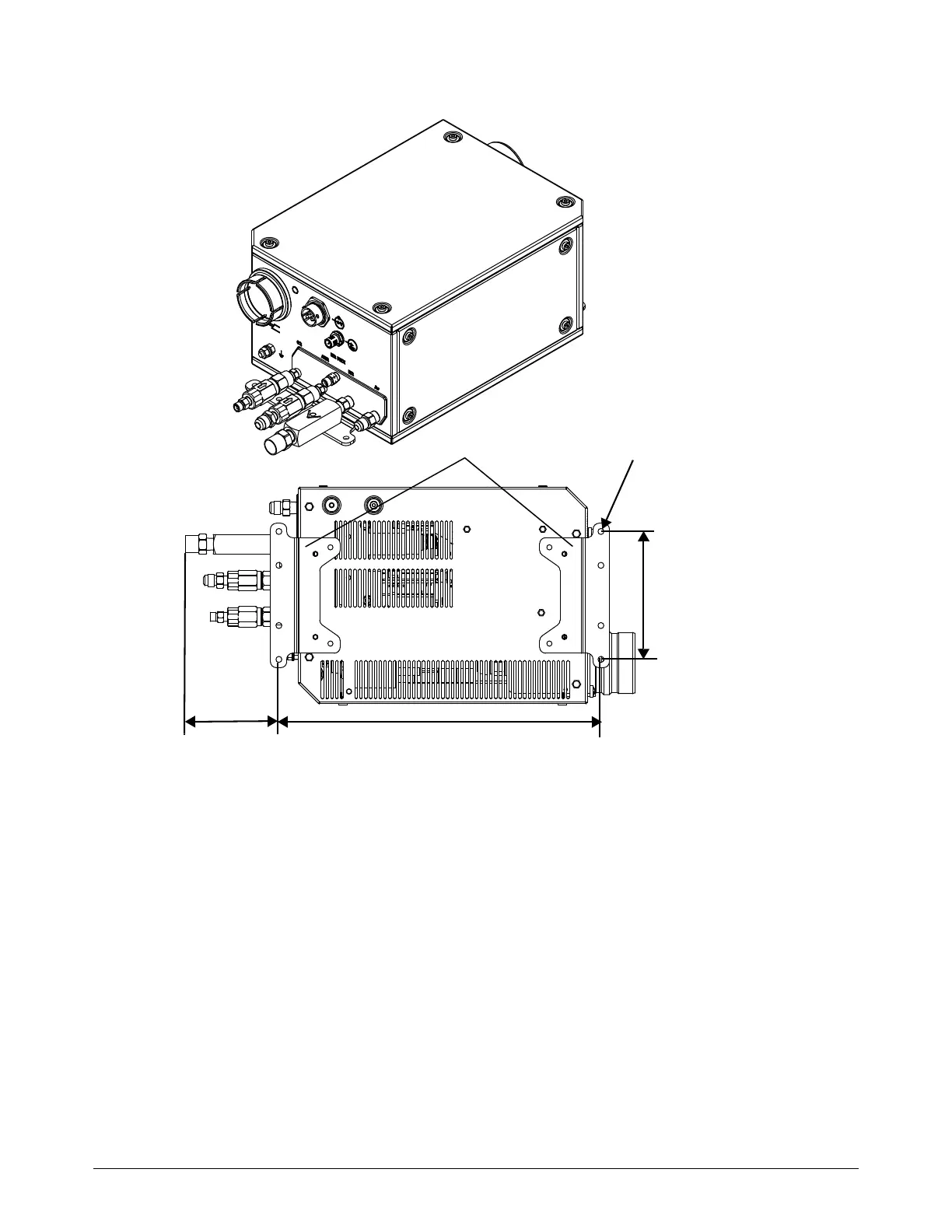

Figure 5 – Bottom-mount orientation and mounting-bracket dimensions for the TorchConnect console
339.85 mm
(13.38 in.)
135 mm
(5.31 in.)
6.35 mm
(0.25 in.)
101.60 mm
(4.00 in.)
Mounting brackets

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
