2. For the oil for hook lubrication, purchase JUKI NEW DEFRIX OIL No. 1
(Part No.: MDFRX1600C0) or JUKI MACHINE OIL #7 (Part No.:
MML007600CA).
3. Be sure to lubricate clean oil.
Adjusting the oil quantity in the hook

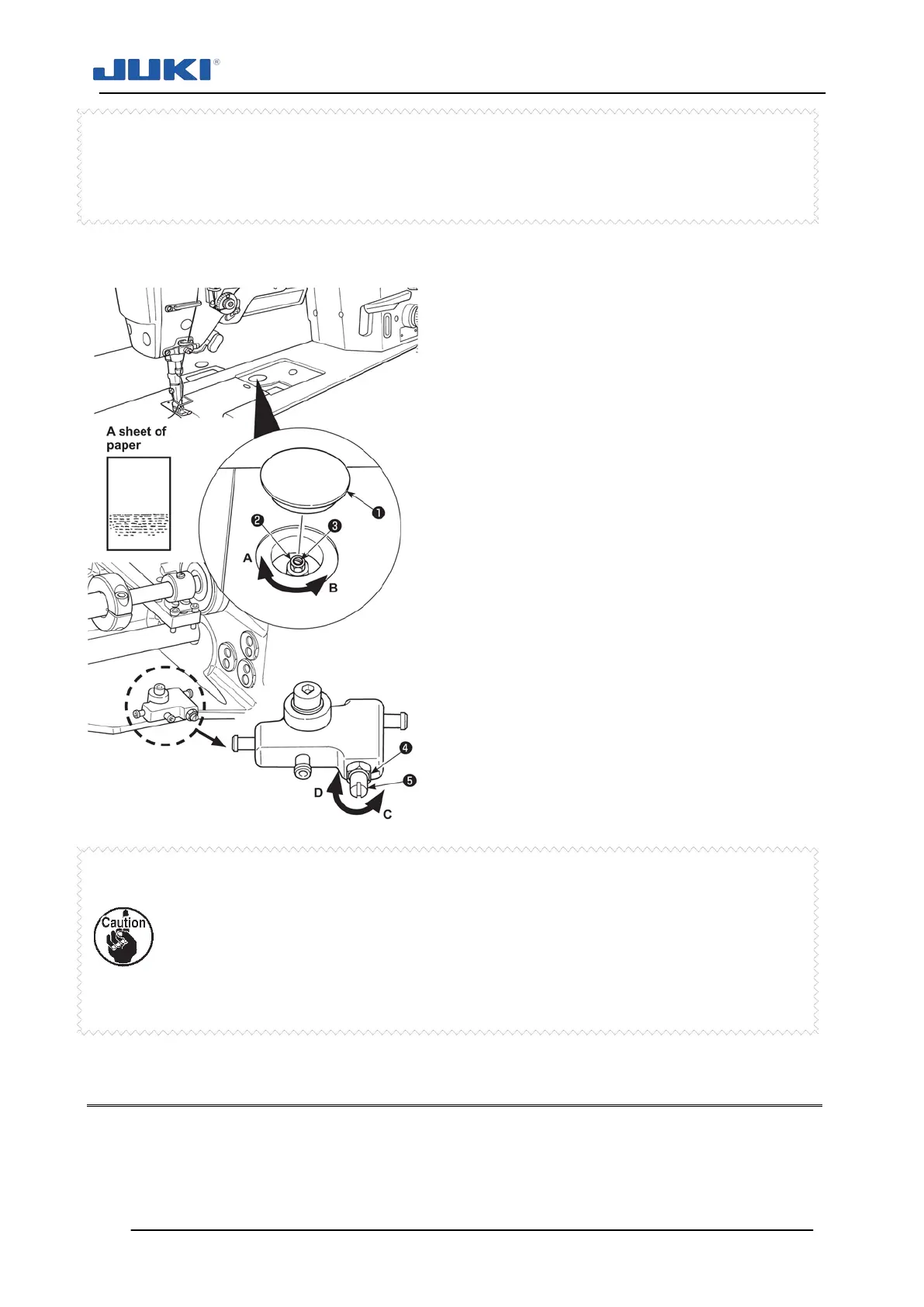

1) Remove rubber cap ❶.
2) Loosen nut
❷
and turn oil amount ad-
justment screw ❸ to adjust the amount of
oil in the hook.
Turning the screw clockwise A will de-
crease the amount of oil in the hook or
counterclockwise B will increase it.
3) The appropriate amount of
oil, when a
sheet of paper is placed near the periph-
ery of the hook, is to such an extent that
splashes of oil from the
hook appear in
approximately five seconds as
shown in
the figure on the left.
In the case the oil quantity in the hook cannot be
adjusted to the proper
quantity, it should be adjusted by loosening nut
❹
and
turning oil quantity
adjusting screw ❺. The
oil quantity in the hook is increased by turning the
oil quantity adjusting screw counterclockwise C, or is decreased by turning it
clockwise D.
Also check to be sure that the oil is fed to the
hook at the sewing speed of
1,000 sti/min.
5.3 Attaching the needle
Switch "off" the motor.
Use 135x17 needles.
Scan the needle box bar code.
