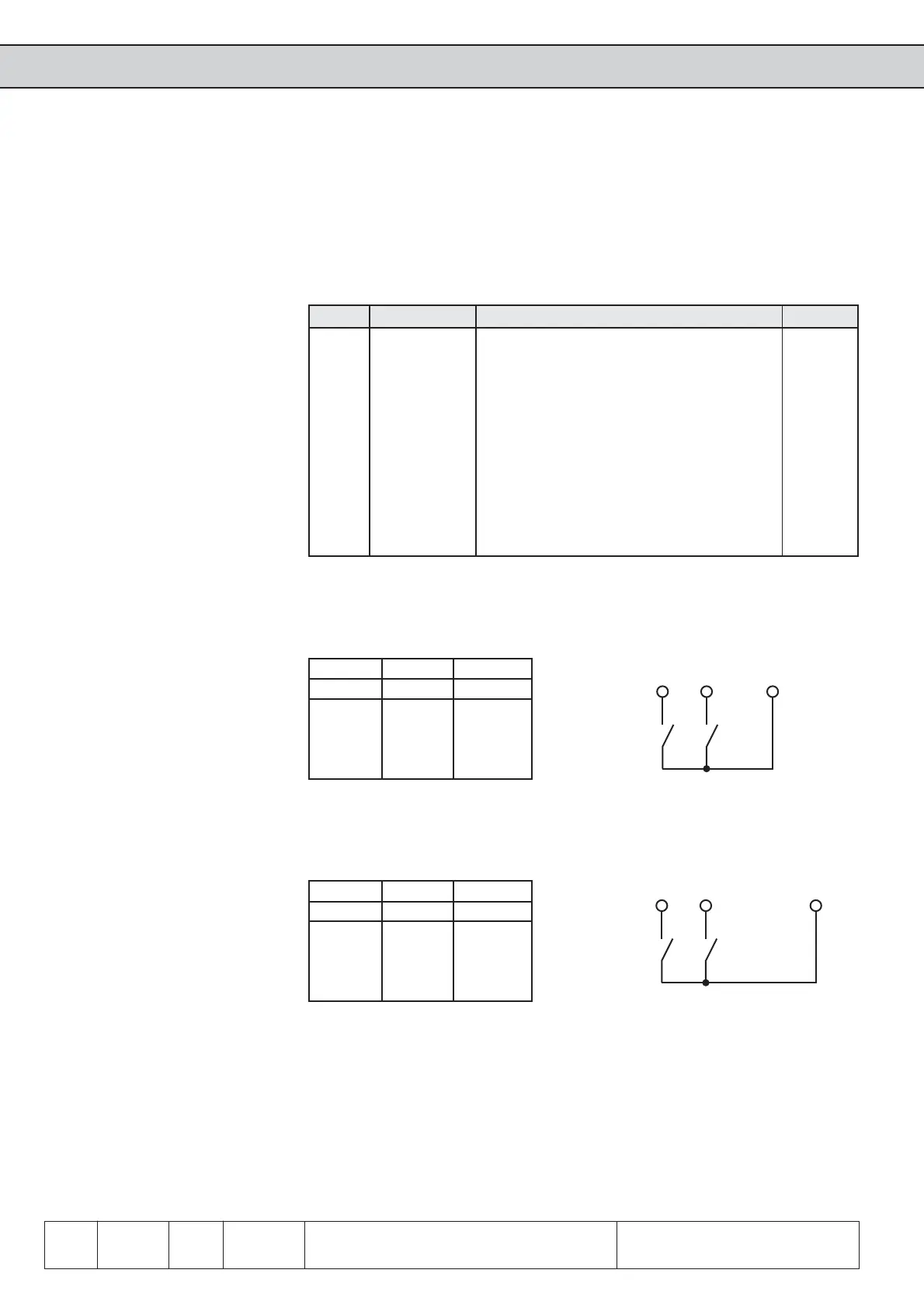

Functional Desription Setpoint- and Ramp Adjustment
Rotation adjustment via terminal
strip
oP.1 = Ñ2ì or Ñ3ì
FR
F/RRun/Stop
Input selection
Rotation direction F (Run/Stop) oP.60
Rotation direction R (forward/
reverse) oP.61
The rotation selection via terminal strip allows the adjustment of the direction of
rotation via switch or from a primary control.
With parameter oP.60 one input is determined for rotation direction forward (or run/
stop) and with oP.61 one input for rotation direction reverse (or forward/reverse).
The values in brackets are valid with oP.1 = Ñ4ì or Ñ5ì.
Bit -No. Decimal value Input Terminal
0 1 ST (Prog. input ÑControl release/Resetì) X2A.16
1 2 RST (Prog. input ÑResetì) X2A.17
2 4 F (Prog. input ÑForwardì) X2A.14
3 8 R (Prog. input ÑReverseì) X2A.15
4 16 I1 (Prog. input 1) X2A.10
5 32 I2 (Prog. input 2) X2A.11
6 64 I3 (Prog. input 3) X2A.12
7 128 I4 (Prog. input 4) X2A.13
8 256 IA (Internal input A) none
9 512 IB (Internal input B) none
10 1024 IC (Internal input C) none
11 2048 ID (Internal input D) none
In the case of rotation selection forward/reverse (oP.1= Ñ2ì or Ñ3ì) the inputs
determined with oP.60 and oP.61 work as follows:
Forward Revers Input
F R Function
00LS
0 1 Reverse
1 0 Forward
1 1 Forward
In the case of rotation selection run/stop and forward/reverse (oP.1= Ñ4ì or Ñ5ì) the
inputs determined with oP.60 and oP.61 work as follows:
Revers Forward Input
F/R Run/Stop Function
00LS
0 1 Forward
10LS
1 1 Reverse
oP.1 = Ñ4ì or Ñ5ì
X2A.14 X2A.15
X2A.14 X2A.15
