Functional Desription Setpoint- and Ramp Adjustment
6.4.4 Fixed values
(oP.18...23)
The KEB COMBIVERT supports up to 3 fixed values for each parameter set,
which can be selected via two digital inputs. With oP.19 and oP.20 the inputs required
for the selection are defined (also see ÑDigital inputsì Chapt. 6.3.10). The rotation
direction source for fixed value mode is defined with oP.18. The adjustment is
independent of oP.1 and is valid exclusively for the fixed values. The adjustment of
a fixed value has priority over the Ñnormalì setpoint adjustment.
oP. 18
0
2
1
3
54
6
7
8
9
f1
f2
f3
t
Fig. 6.4.4 Fixed values
oP.19 Input selection
Fixed value 1
0...4095
(according to table)
oP.20 Input selection
Fixed value 2
0...4095
(according to table)
Fixed value 1
oP.21:
-4000...4000 rpm
Fixed value 2
oP.22:
-4000...4000 rpm
Fixed value 3
oP.23: -4000...4000 rpm
Setpoint limits
Digital
oP.2
0-lim. abs. 0-lim. abs. 0-lim. abs. 0-lim. abs.LS no LS
Terminal strip
For / Rev
Terminal strip
Run / Stop
Setpoint-
dependent
DRIVECOM
SY.50
Fixed value
rotation direction source
Input
Fixed value 1
Input
Fixed value 2
Input fixed value 1
Input fixed value 2
Fixed values f1...f3
Setpoint

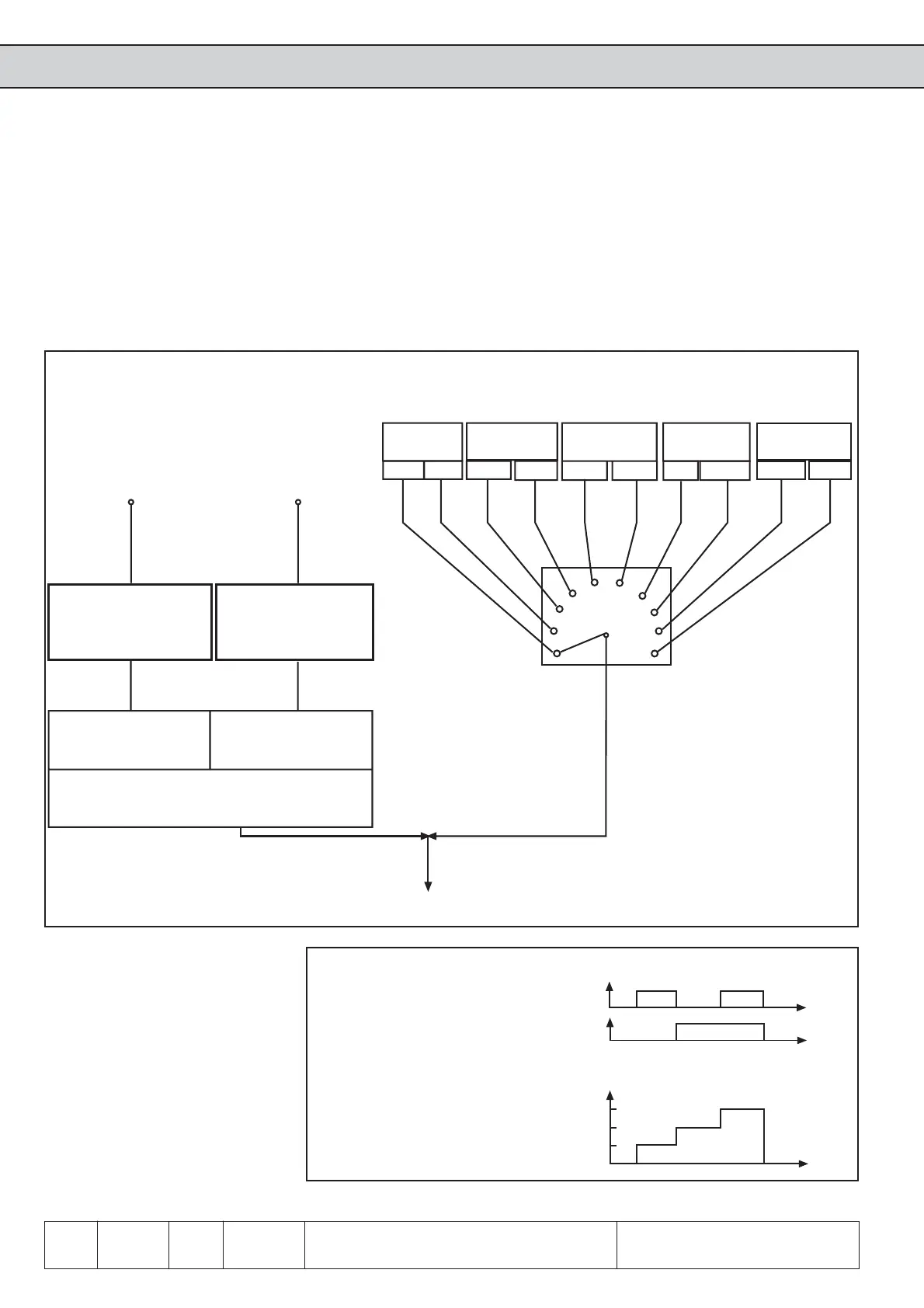

Fig. 6.4.4.a Selection of fixed values
Selection of fixed value
